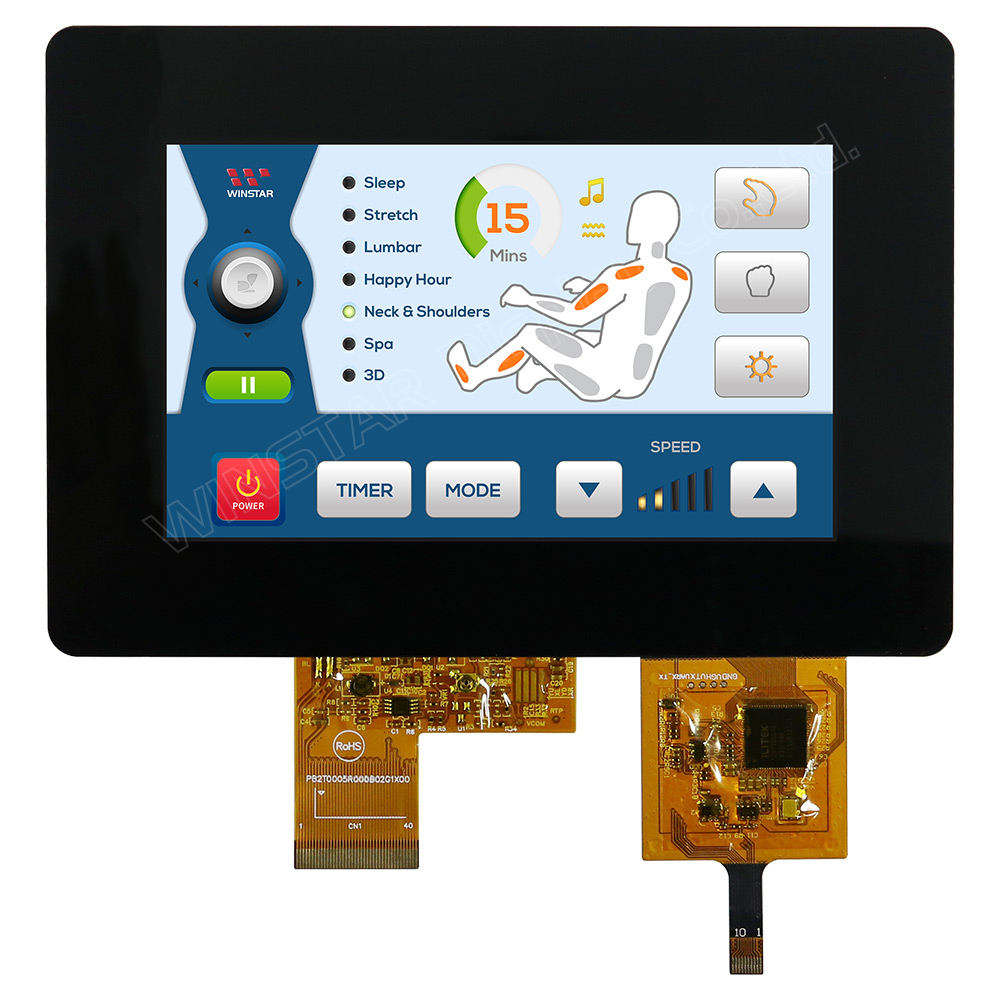

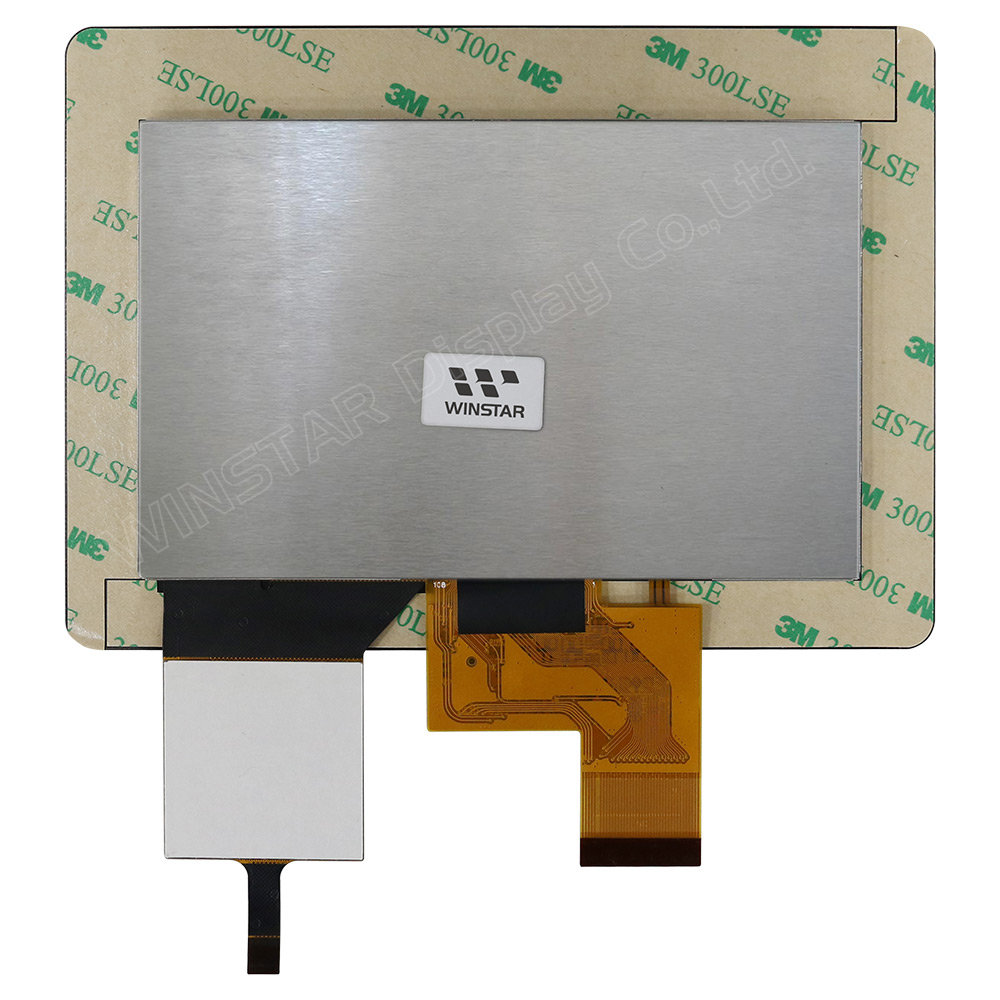

5 inch USB interface PCAP TFT LCD Module
Model No. WF50BTIAGDNB0
►Size : 5 inch
►Resolution : 800×480 dots
►View Direction : 12H
►Interface :24-bit RGB
►Driver IC : ILI6122+ILI5960
►Control-Board : No
►Brightness(cd/m²) : 400
►Frame Through Hole : No
►Touch Screen : Projected Capacitive Touch Screen(PCAP)

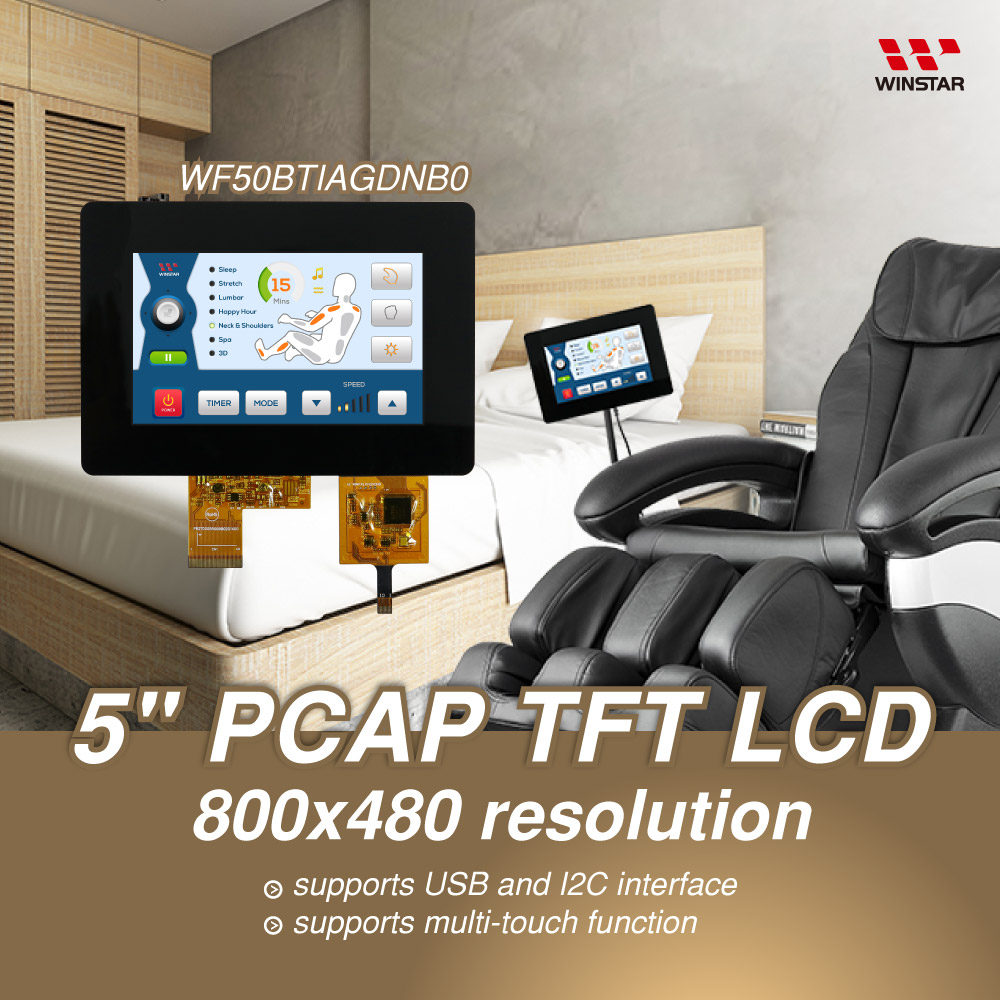

DESCRIPTION
WF50BTIAGDNB0 is a full color 800x480 TFT-LCD display module, diagonal size 5 inch. This TFT model is featured with USB interface Capacitive Touch Screen on module; it built in with ILI6122 and ILI5960 Driver IC, supports 24-bit RGB interface, as to the capacitive touch panel is built in with ILI2511 driver IC which supports USB and I2C interface. This projected capacitive touch screen supports multi-touch function, compatible with Windows, Linux, Android and Mac operating systems.
WF50BTIAGDNB0 model is having the typical brightness 400 cd/m2, power supply voltage (VDD) range from 3V to 3.6V. This module is having Glare surface panel, view direction 12 o'clock, gray scale inversion 6 o'clock, and aspect ratio 16:9, contrast ratio 500:1, the operating temperature ranges from -20 to +70 ℃ and storage from -30 to +80 ℃.

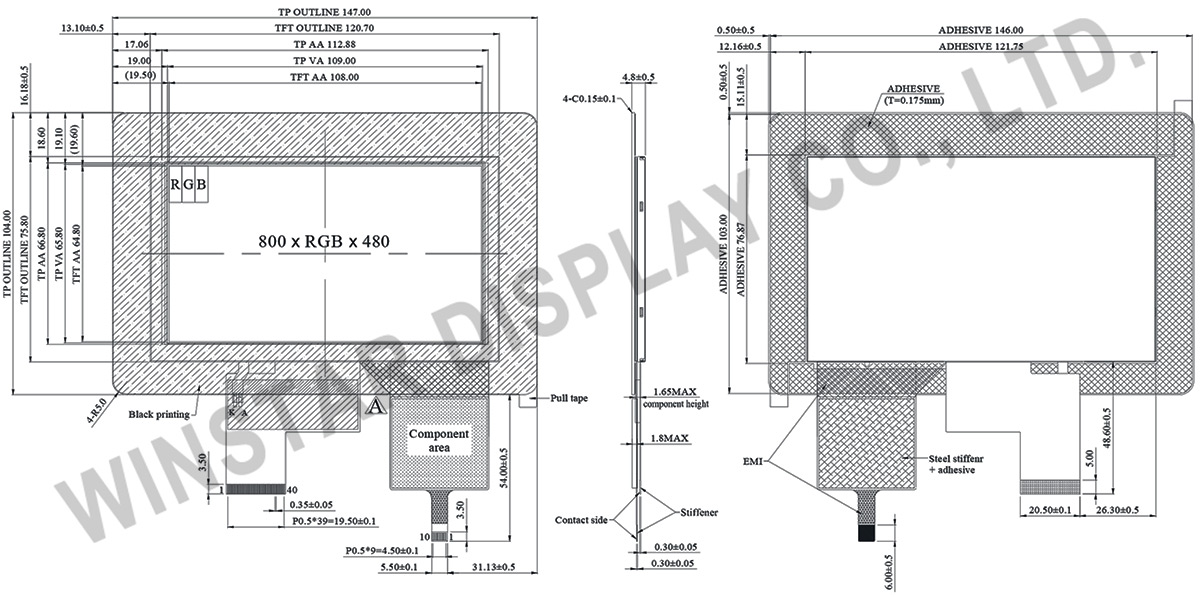

DRAWING
SPECIFICATIONS
Interface
1.LCM PIN Definition
| Pin | Symbol | Function |
|---|---|---|
| 1 | VLED- | Power for LED backlight (Cathode) |
| 2 | VLED+ | Power for LED backlight (Anode) |
| 3 | GND | Power Ground |
| 4 | VDD | Power voltage |
| 5 | R0 | Red data (LSB) |
| 6~11 | R1~R6 | Red data |
| 12 | R7 | Red data(MSB) |
| 13 | G0 | Green data(LSB) |
| 14~19 | G1~G6 | Green data |
| 20 | G7 | Green data(MSB) |
| 21 | B0 | Blue data(LSB) |
| 22~26 | B1~B5 | Blue data |
| 27 | B6 | Blue data |
| 28 | B7 | Blue data(MSB) |
| 29 | GND | Power Ground |
| 30 | CLK | Sample clock |
| 31 | DISP | Display on/off |
| 32 | NC/HS | No connection /Horizontal sync input |
| 33 | NC/VS | No connection /Vertical sync input |
| 34 | DE | Data input enable |
| 35 | NC | No connection |
| 36 | GND | Power Ground |
| 37 | NC | No connection |
| 38 | NC | No connection |
| 39 | NC | No connection |
| 40 | NC | No connection |
2.PCAP PIN Definition
| Pin | Symbol | Function |
|---|---|---|
| 1 | USB_VSS | System ground |
| 2 | USB_VDD 5V | Power supply |
| 3 | USB_D+ | Data + |
| 4 | USB_D- | Data - |
| 5 | VSS | System ground |
| 6 | SDA | I2C data input and output |
| 7 | SCL | I2C clock input |
| 8 | RST | External Reset, Low is active |
| 9 | INT | External interrupt to the host |
| 10 | VDDT 3.3 | Power supply |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 5 | inch |
| Dot Matrix | 800 × 3(RGB) × 480 | dots |
| Module dimension | 147.0(W) ×104.0(H) ×4.8mm | mm |
| Active area | 108(W) × 64.8 (H) mm | mm |
| Dot pitch | 0.135(W)×0.135(H) mm | mm |
| LCD type | TFT, Normally White, Transmissive | |
| TFT Driver IC | ILI6122 + ILI5960 | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| TFT Interface | 24-bit RGB | |
| Aspect Ratio | 16:9 | |
| Backlight Type | LED ,Normally White | |
| PCAP IC | ILI2511 | |
| PCAP Interface | USB (I2C available) | |
| PCAP FW Version: | V 6. 0. 0. 0. 5.28.0.1 | |
| Touch Panel | Projected Capacitive Touch Screen(PCAP) | |
| Surface | Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Values | Unit | ||
|---|---|---|---|---|---|
| Min. | Typ. | Max. | |||
| Power voltage | VDD | 3 | 3.3 | 3.6 | V |
| Current for Driver(Black) | IDD | - | 110 | 170 | mA |
| Input logic high voltage | VIH | 0.7 VDD | - | VDD | V |
| Input logic low voltage | VIL | 0 | - | 0.3 VDD | V |
| Supply Voltage For Touch Logic | VDDT | 4.4 | 5 | 5.5 | V |
