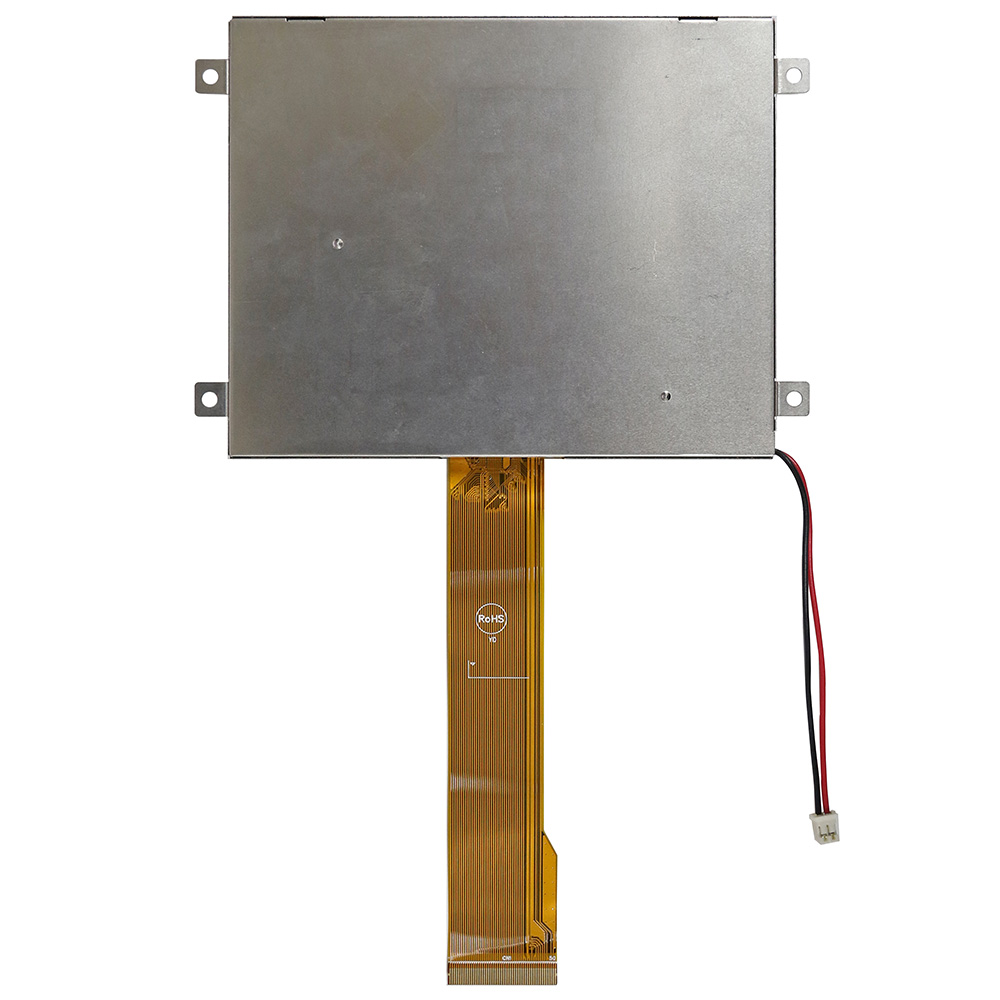

5.7 TFT LCD Modules 320 x 240
Model No. WF57ETIACDNN0
►Size : 5.7”
►Resolution : 320 x 240 dots
►View Direction : 12H
►Interface : RGB
►Built-in Controller : --
►Control-Board : Option
►Brightness(cd/m²) : 900
►Frame Through Hole : Yes
►Touch Screen : No
►O-Film : Option

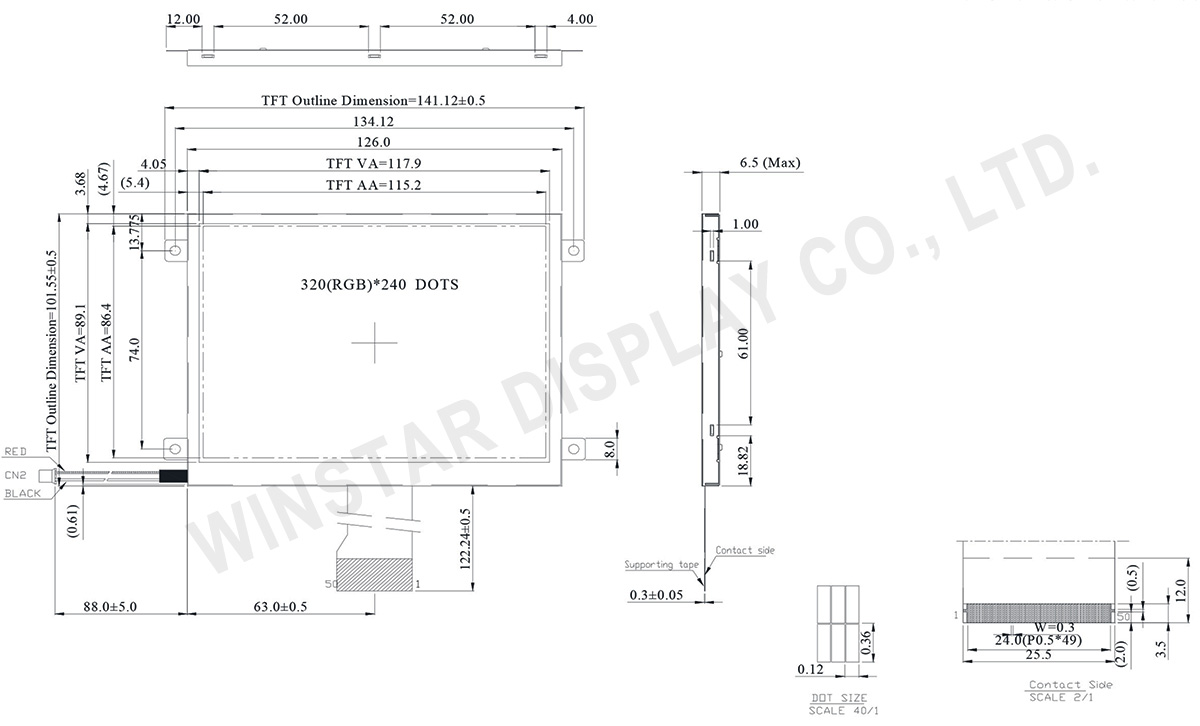

DRAWING
SPECIFICATIONS
Interface
| Pin | Symbol | Function |
|---|---|---|
| 1 | IF1 | Input data format control |
| 2 | IF2 | Input data format control |
| 3 | POL | Polarity Signal connect to VCOM driving circuit. |
| 4 | RESET | Hardware reset |
| 5 | SPENA | Chip select |
| 6 | SPCL | Serial Clock |
| 7 | SPDA | Serial Data |
| 8 | B0 | Blue Data bit |
| 9 | B1 | Blue Data bit |
| 10 | B2 | Blue Data bit |
| 11 | B3 | Blue Data bit |
| 12 | B4 | Blue Data bit |
| 13 | B5 | Blue Data bit |
| 14 | B6 | Blue Data bit |
| 15 | B7 | Blue Data bit |
| 16 | G0 | Green Data bit |
| 17 | G1 | Green Data bit |
| 18 | G2 | Green Data bit |
| 19 | G3 | Green Data bit |
| 20 | G4 | Green Data bit |
| 21 | G5 | Green Data bit |
| 22 | G6 | Green Data bit |
| 23 | G7 | Green Data bit |
| 24 | R0 | Red Data bit |
| 25 | R1 | Red Data bit |
| 26 | R2 | Red Data bit |
| 27 | R3 | Red Data bit |
| 28 | R4 | Red Data bit |
| 29 | R5 | Red Data bit |
| 30 | R6 | Red Data bit |
| 31 | R7 | Red Data bit |
| 32 | Hsync | Horizontal synchronous signal |
| 33 | Vsync | Vertical synchronous signal |
| 34 | Data CLK | Dot data clock |
| 35 | AVDD(analog) | Analog power: 4.5V~5.5V |
| 36 | AVDD(analog) | Analog power: 4.5V~5.5V |
| 37 | VCC(Digital) | Digital power: 3V~3.6V |
| 38 | VCC(Digital) | Digital power: 3V~3.6V |
| 39 | NPC | NTSC/PAL mode Auto detection result H:NTSC/L:PAL |
| 40 | VGL | Gate off power |
| 41 | VGL | Gate off power |
| 42 | UD | Up/down selection |
| 43 | VGH | Gate on power |
| 44 | LRC | Shift direction of device internal shift register control. |
| 45 | GND | System ground pin of the IC. Connect to system ground. |
| 46 | VCOM | VCOM driving input |
| 47 | VCOM | VCOM driving input |
| 48 | ENB | Signal to settle the horizontal display position |
| 49 | GND | System ground pin of the IC. Connect to system ground. |
| 50 | GND | System ground pin of the IC. Connect to system ground. |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 5.7 | inch |
| Dot Matrix | 320 × RGB × 240(TFT) | dots |
| Module dimension | 141.12(W) × 101.55(H) × 6.5(D) MAX | mm |
| Active area | 115.2 × 86.40 | mm |
| Dot pitch | 0.12 × 0.36 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Aspect Ratio | 4:3 | |
| Backlight Type | LED, Normally White | |
| Touch Panel | Without touch panel | |
| Surface | Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For Logic | VCC | － | 3.0 | 3.3 | 3.6 | V |
| Input High Volt. | VIH | － | 0.7 Vcc | － | Vcc | V |
| Input Low Volt. | VIL | － | 0 | － | 0.3 Vcc | V |
| LCD Driving Supply Voltage | VGH*1 | Ta=25℃ | 15 | V*3 | ||
| VGL*2 | -10 | |||||
| VcomH | 2.5 | 5.5 | ||||
| VcomL | -2.0 | 0 | ||||
| Supply Current | IVCC | VCC=3.3V | － | 5 | 8 | mA |
