1280x800, 10.1" IPS TFT LCD Panel, LCD Panel 10.1"
Model No. WF101GTYAPLNN0
►10.1" LCD Panel
►1280x800 LCD Panel
►IPS TFT LCD
►Interface : LVDS
►IC Part No. : --
►Control-Board : No
►Brightness(cd/m²) : 350
►Frame Through Hole : No
►Touch Screen : No
DESCRIPTION
WF101G is a LVDS 10.1 inch IPS TFT LCD Panel with high resolution of 1280 x 800 pixels. This 1280x800 TFT LCD Display Panel is featured with IPS panel which having the advantages of wider viewing angle of Left:85 / Right:85 / Up:85 / Down:85 degree (typical) and having clear images and stable response time.
The WF101G is having LVDS interface 40-pin including typical brightness 350 cd/m2, contrast ratio: 800:1 and the operating temperature ranges from -20℃ to +70 ℃ and storage temperature from -20 to +70 ℃. The power supply voltage (VDD) for WF101G is from 2.3V to 2.7V, typical value 2.5V. WF101G is available with Capacitive Touch Panel (PCAP) and Resistive Touch Panel (RTP) options which are very suitable for HMI (Human-machine Interaction) applications or POS system, etc.

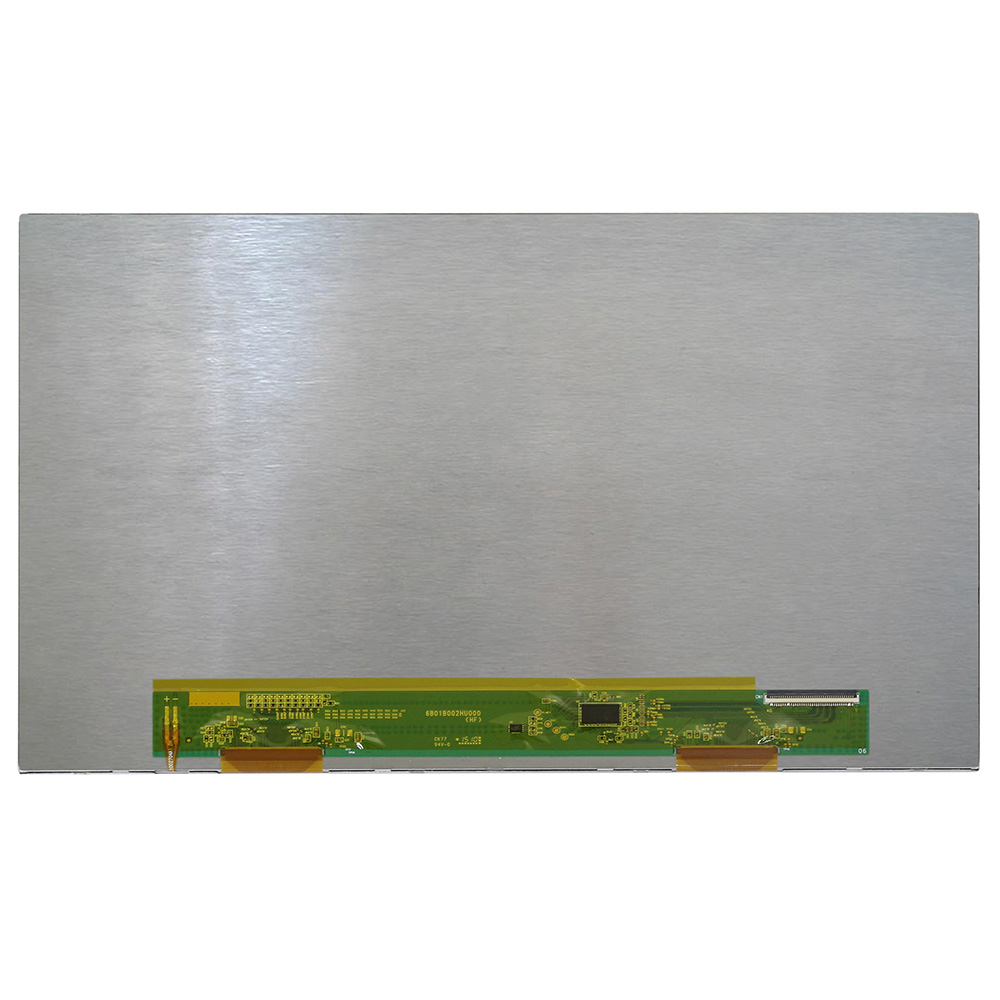

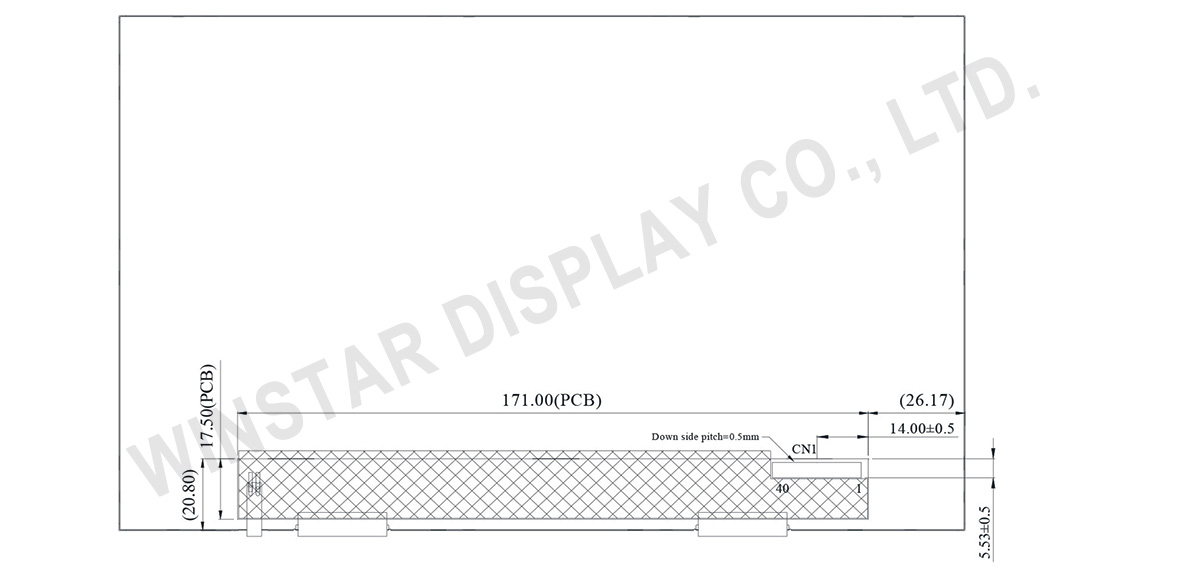

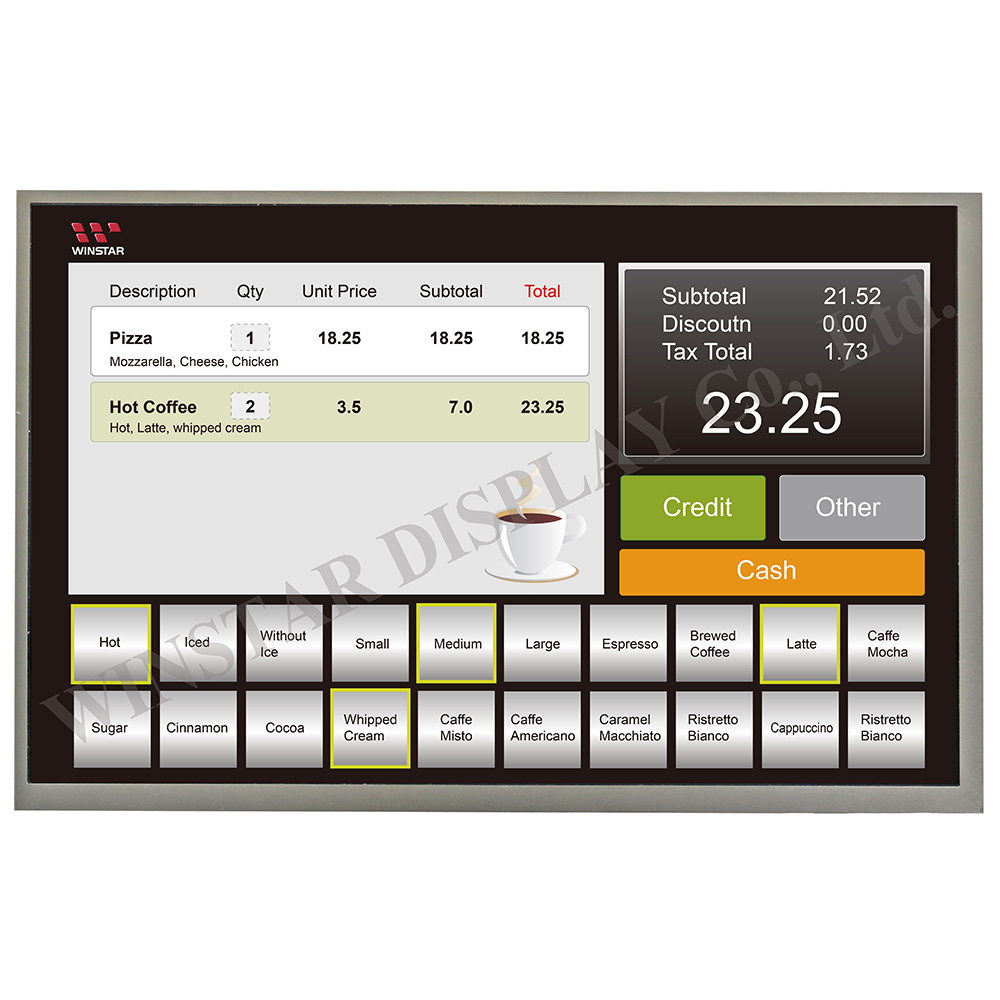

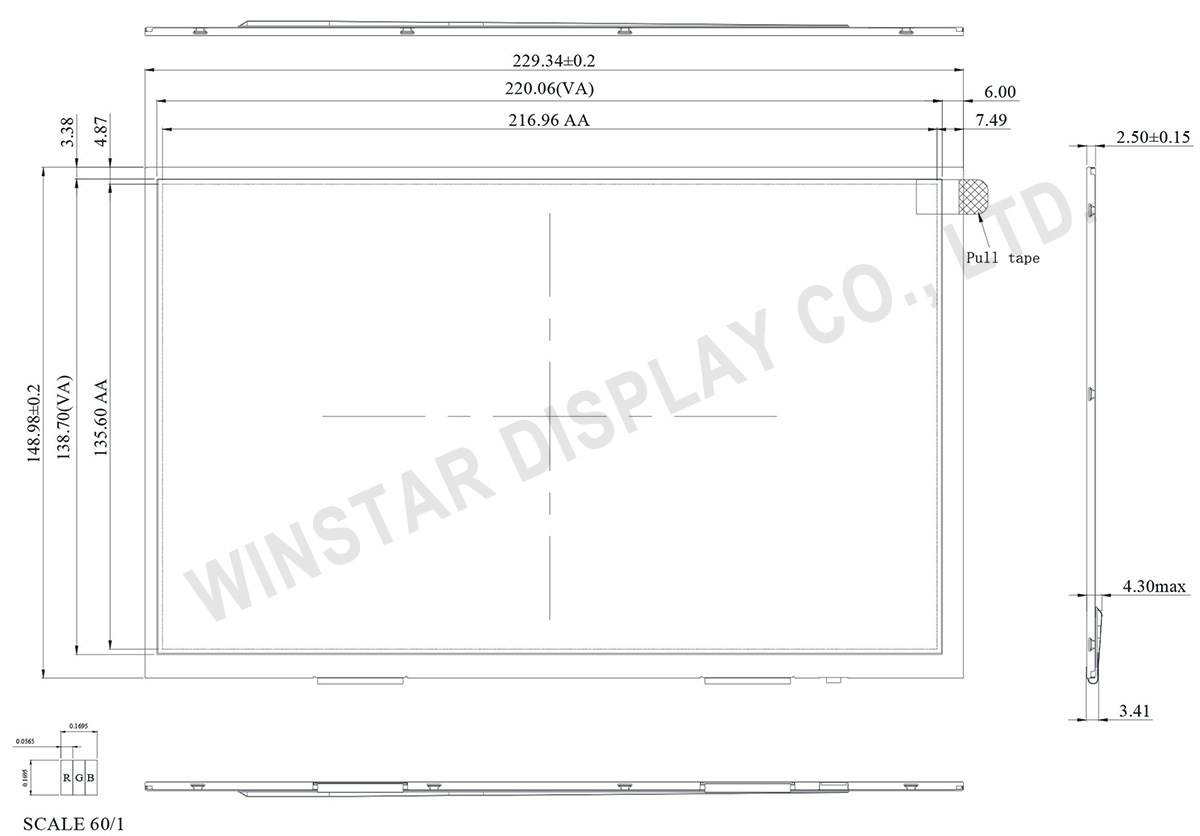

DRAWING
SPECIFICATIONS
Interface
| Pin No. | Symbol | I/O | Function |
|---|---|---|---|
| 1 | VCOM | P | Common Voltage |
| 2~3 | VDD | P | Power Supply |
| 4~6 | NC | - | No connection |
| 7 | GND | P | Ground |
| 8 | Rxin0- | I | -LVDS Differential Data Input |
| 9 | Rxin0+ | I | +LVDS Differential Data Input |
| 10 | GND | P | Ground |
| 11 | Rxin1- | I | -LVDS Differential Data Input |
| 12 | Rxin1+ | I | +LVDS Differential Data Input |
| 13 | GND | P | Ground |
| 14 | Rxin2- | I | -LVDS Differential Data Input |
| 15 | Rxin2+ | I | +LVDS Differential Data Input |
| 16 | GND | P | Ground |
| 17 | RxCLK- | I | -LVDS Differential Clock Input |
| 18 | RxCLK+ | I | +LVDS Differential Clock Input |
| 19 | GND | P | Ground |
| 20 | Rxin3- | I | -LVDS Differential Data Input |
| 21 | Rxin3+ | I | +LVDS Differential Data Input |
| 22 | GND | P | Ground |
| 23~24 | NC | - | No connection |
| 25 | GND | P | Ground |
| 26~28 | NC | - | No connection |
| 29 | AVDD | P | Power for Analog Circuit |
| 30 | GND | P | Ground |
| 31~32 | LED- | P | LED Cathode |
| 33~34 | NC | - | No connection |
| 35 | VGL | P | Gate OFF Voltage |
| 36~37 | NC | - | No connection |
| 38 | VGH | P | Gate ON Voltage |
| 39~40 | LED+ | P | LED Anode |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Screen Diagonal | 10.1 | inch |
| Number of Pixels | 1280 × 3(R GB) × 800 | dots |
| Module dimension | 229.34 × 148.98 × 2.5 | mm |
| Active area | 216.96 (H) × 135.6(V) | mm |
| Pixel pitch | 0.1695 × 0.1695 | mm |
| Display Mode | Normally Black | |
| Pixel Arrangement | R.G.B. Vertical Stripe | |
| Backlight Type | LED,Normally White | |
| Aspect Ratio | 16:9 | |
| Electrical Interface (Logic) | LVDS | |
| Touch Screen | Without touch screen | |
| Surface | Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -20 | － | +70 | ℃ |
Electrical Characteristics
| Item | Symbol | Values | Unit | ||
|---|---|---|---|---|---|
| Min | Typ | Max | |||
| Power voltage | VDD | 2.3 | 2.5 | 2.7 | V |
| AVDD | 8.0 | 8.2 | 8.4 | V | |
| VGH | 21.7 | 22 | 22.3 | V | |
| VGL | -7.3 | -7 | -6.7 | V | |
| Input signal voltage | VCOM | 2.7 | 3.0 | 3.3 | V |
