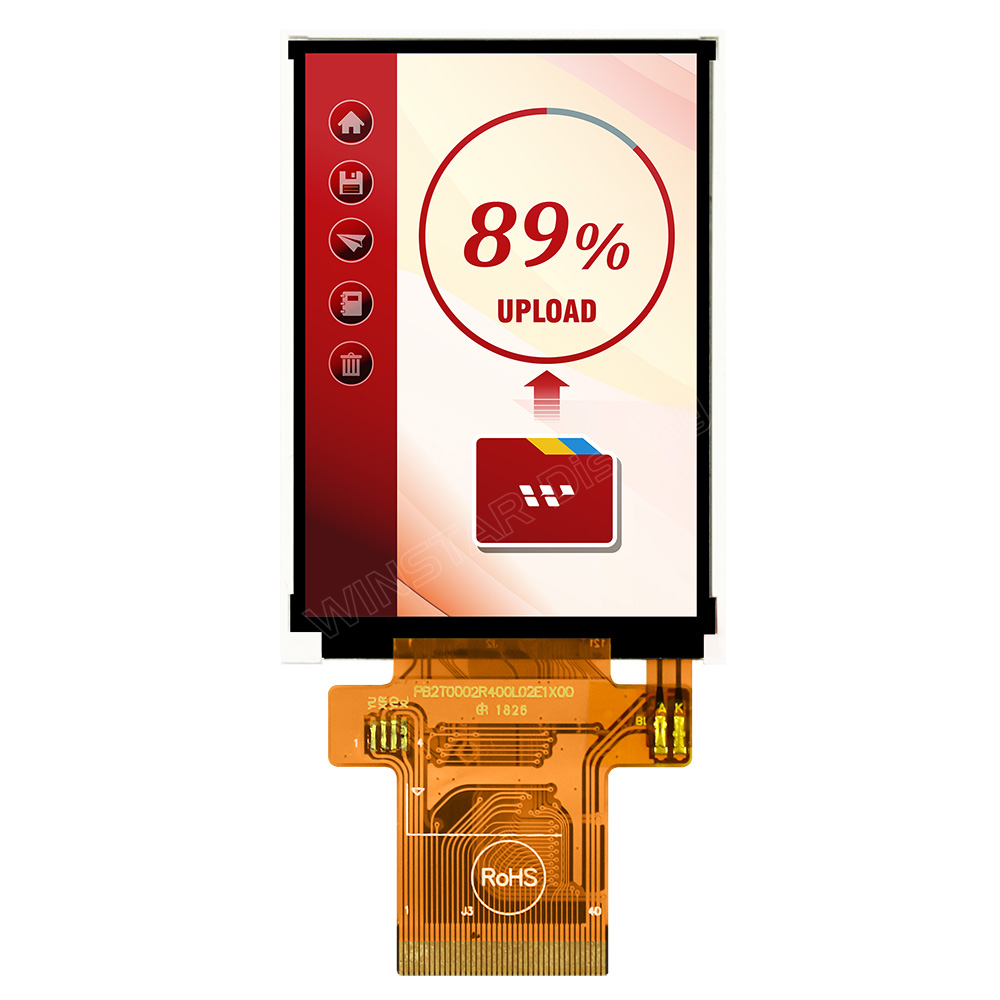

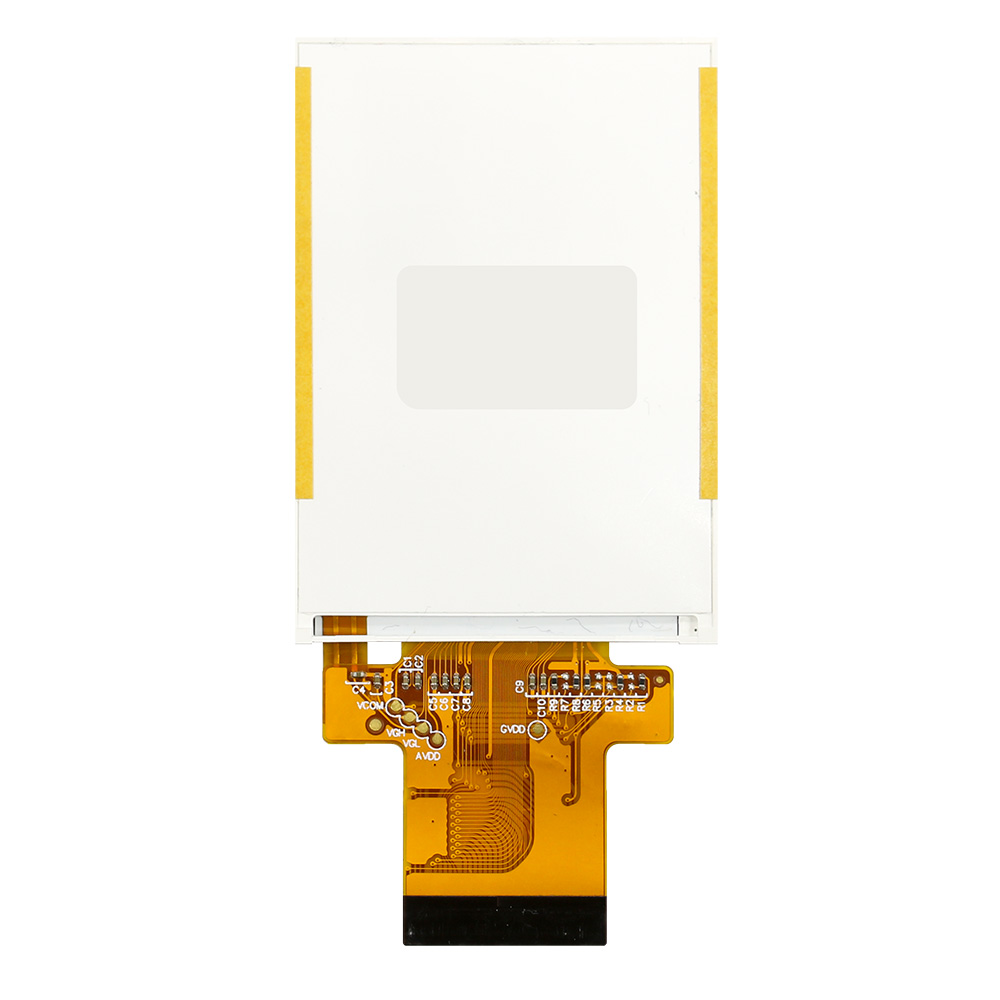

2.4" IPS Color TFT Module
Model No. WF24LTYAJDNN0
►Size: 2.4"
►Resolution: 240×320 dots
►View Direction: IPS
►Interface: MCU, SPI
►Built-in Controller: ILI9341V
►Control-Board: No
►Brightness(cd/m²): 500
►Frame Through Hole: No
►Touch Screen: Without Touch Screen
DESCRIPTION
WF24LTYAJDNN0 is a 2.4 inch IPS TFT-LCD display module; made of resolution 240 x 320 pixels. WF24L module built in with ILI9341V controller IC, it supports MCU8080 and SPI interface, it featured with IPS panel which is having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 800 (typical value), brightness 500 nits (typical value), Glare surface panel.
This 2.4 inch TFT- LCD display is portrait mode; it integrated controller IC ILI9341V on module, Supply Voltage for Analog (VCI) from 2.5V to 3.3V. This TFT module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30 to +80 ℃.

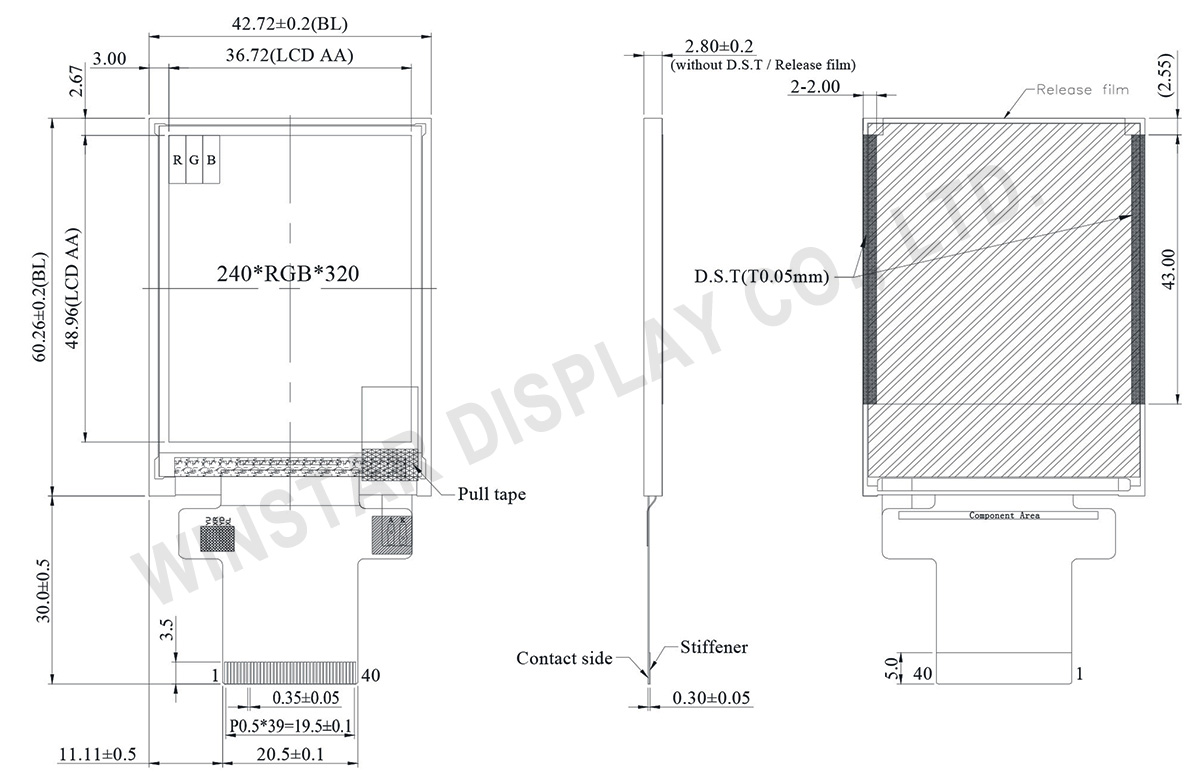

DRAWING
SPECIFICATIONS
Interface Pin Function
| NO | Symbol | Function | I/O |
|---|---|---|---|
| 1 | GND | Ground | P |
| 2-6 | NC | No connection | - |
| 7 | VCI | High voltage power supply for analog circuit blocks (2.5 ~ 3.3 V) |
P |
| 8 | IOVCC | Low voltage power supply for interface logic circuits (1.65 ~ 3.3 V) |
P |
| 9 | TE | Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low. If not used, open this pin. |
O |
| 10 | CS | Chip select signal. | I |
| 11 | D/CX(SCL) | (D/CX): This pin is used to select “Data or Command” in the parallel interface. When DCX = 1, data is selected. When DCX = 0, command is selected. (SCL): This pin is used as the serial interface clock in 3-wire 9-bit/4-wire 8-bit serial data interface. If not used, this pin should be connected to VDDI or VSS. |
I |
| 12 | WR(SPI_D/C) | (WRX) - 8080-Ⅰ/8080-Ⅱ system: Serves as a write signal and writes data at the rising edge. (D/CX) - 4-line system: Serves as the selector of command or parameter. Fix to VDDI level when not in use. |
I |
| 13 | RD | 8080-Ⅰ/8080-Ⅱ system (RDX): Serves as a read signal and MCU read data at the rising edge. Fix to VDDI level when not in use. |
I |
| 14-29 | DB0~DB15 | 18-bit parallel bi-directional data bus for MCU system and RGB interface mode Fix to VSS level when not in use. | I/O |
| 30 | RESET | This signal will reset the device and must be applied to properly initialize the chip. Signal is active low. |
I |
| 31 | IM0 | Select the MCU interface mode MPU Parallel interface bus and serial interface select If use RGB Interface must select serial interface. * : Fix this pin at VDDI or VSS. |
I |
| 32 | IM1 | ||
| 33 | IM2 | ||
| 34 | DB16 | 18-bit parallel bi-directional data bus for MCU system and RGB interface mode Fix to VSS level when not in use. | I/O |
| 35 | DB17 | ||
| 36 | LEDK | Cathode of LED backlight. | P |
| 37 | LEDK | Cathode of LED backlight. | P |
| 38 | LEDA | Anode of LED backlight. | P |
| 39 | SDI(SDA) | When IM[3] : Low, Serial in/out signal. When IM[3] : High, Serial input signal. The data is applied on the rising edge of the SCL signal. If not used, fix this pin at VDDI or VSS. |
I/O |
| 40 | SDO | Serial output signal. The data is outputted on the falling edge of the SCL signal. If not used, open this pin |
O |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 2.4 | inch |
| Dot Matrix | 240 × RGB × 320(TFT) | dots |
| Module dimension | 42.72(W) × 60.26(H) × 2.8(D) | mm |
| Active area | 36.72 × 48.96 | mm |
| Dot pitch | 0.153 × 0.153 | mm |
| LCD type | TFT, Normally Black, Transmissive | |
| Controller IC | ILI9341V or equivalent | |
| Viewing angle | 80/80/80/80 | |
| Aspect Ratio | Portrait | |
| Backlight Type | LED, Normally White | |
| Touch Panel | Without Touch Panel | |
| Surface | Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Supply Voltage For Analog | VCI | 2.5 | — | 3.3 | V |
| Supply Voltage For Logic | IOVCC | 2.5 | — | 3.3 | V |
| Supply Current For LCM | ICI | — | 6 | 9 | mA |
