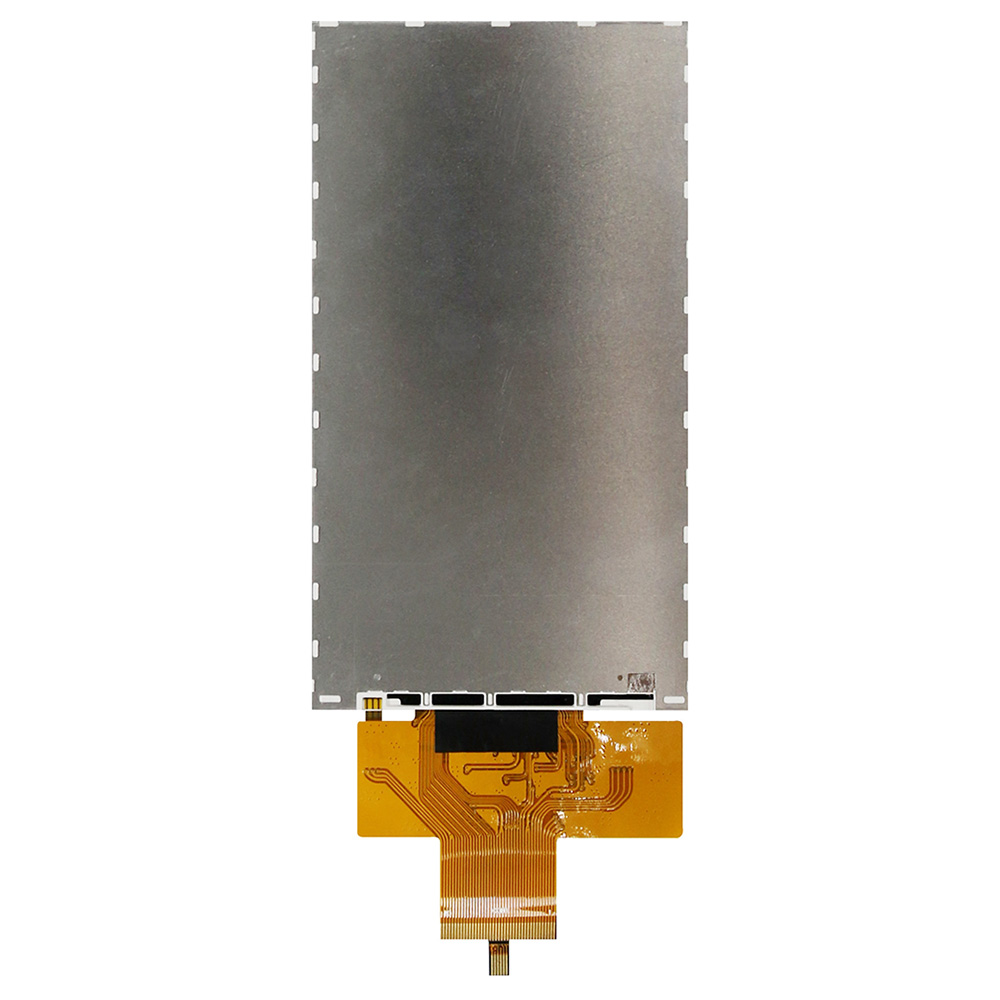

Projected Capacitive Touch Panel IPS TFT 5 " with Optical Bonding (MIPI DSI)
Model No. WF50DTYA3MNG10
►Size : 5”
►Resolution : 720x1280 dots
►View Direction : IPS
►Interface : MIPI DSI
►TFT Drive IC : ILI9881C
►Control-Board : No
►Brightness(cd/m²): 250
►Frame Through Hole : No
►Touch Panel : Projected Capacitive Touch Panel
►Detect Point : 10 Fingers
DESCRIPTION
WF50DTYA3MNG10 is a 5 inch IPS TFT display with projected capacitive touch panel optical bonding technology on module. This 5 inch TFT-LCD module supports (Mobile Industry Processor Interface) DSI (Display Serial Interface) interface and is featured with IPS panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and having HD 720 x1280 resolution. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
This 5 inch portrait mode TFT LCD integrated driver IC ILI9881C on module and capacitive touchscreen IC GT928, power supply for analog circuit range from 2.5v to 3.6v. The model is adopting optical bonding solution capacitive touch panel which featuring the advantage of increases the ruggedness of the display and improving durability to having better able to resist scratches, fluids, stains and dirt.

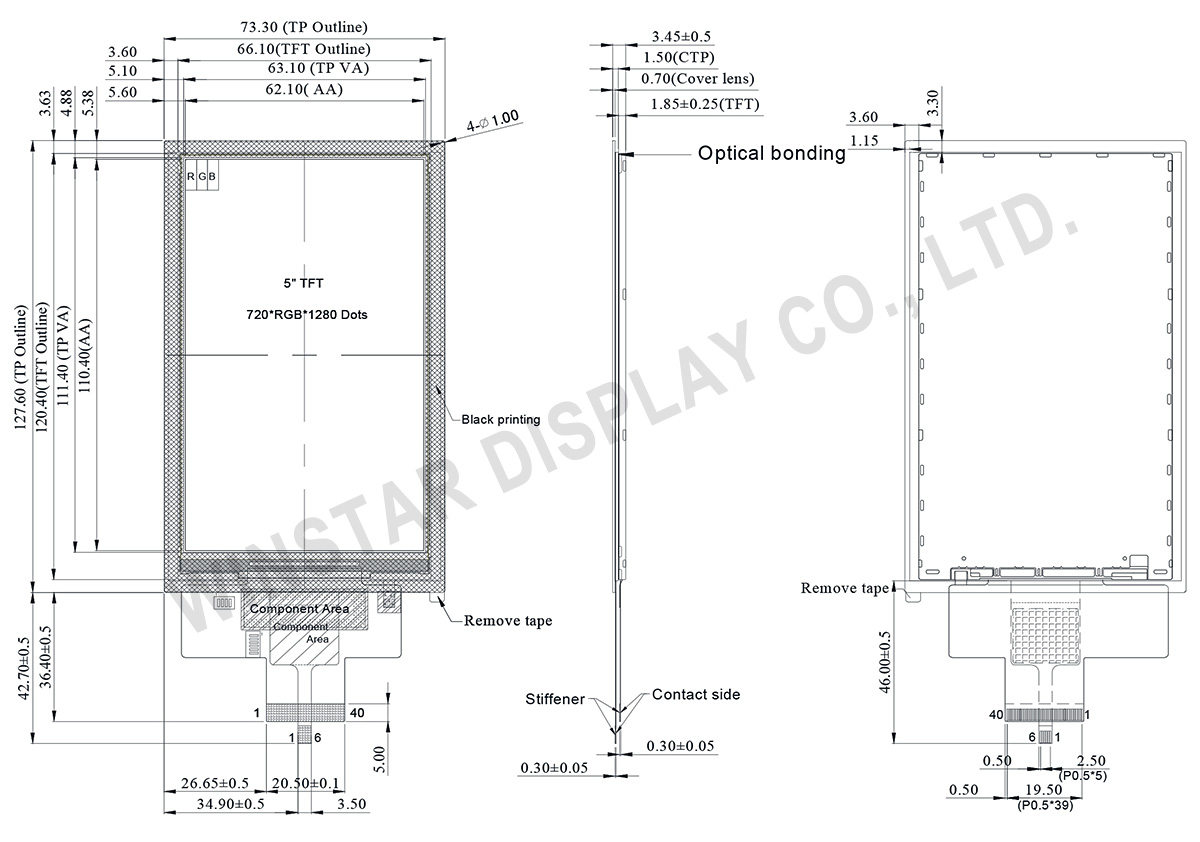

DRAWING
SPECIFICATIONS
Interface
LCM PIN Definition
| Pin | Symbol | Function |
|---|---|---|
| 1-9 | NC | No connection |
| 10-11 | VCI | Power supply for analog circuits. Connect to an external power supply of 2.5V to 3.6V |
| 12-13 | NC | No connection |
| 14 | RESET | The external reset input Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power. Fix to VDDI level when not in use. |
| 15 | TE | Tearing effect output pin. Leave the pin open when not in use. |
| 16 | NC | No connection |
| 17-18 | GND | Power ground |
| 19-20 | IOVCC | Power supply for analog circuits. Connect to an external power supply of 1.65V to 3.6V |
| 21 | GND | Power ground |
| 22 | D3P | MIPI DSI differential data pair. (Data lane 3) |
| 23 | D3N | |
| 24 | GND | Power ground |
| 25 | D2P | MIPI DSI differential data pair. (Data lane 2) |
| 26 | D2N | |
| 27 | GND | Power ground |
| 28 | CLKP | MIPI DSI differential clock pair |
| 29 | CLKN | |
| 30 | GND | Power ground |
| 31 | D1P | MIPI DSI differential data pair. (Data lane 1) |
| 32 | D1N | |
| 33 | GND | Power ground |
| 34 | D0P | MIPI DSI differential data pair. (Data lane 0) |
| 35 | D0N | |
| 36-37 | GND | Power ground |
| 38 | LED+ | Power for LED backlight anode |
| 39 | LED1- | Power for LED1 backlight cathode |
| 40 | LED2- | Power for LED2 backlight cathode |
PCAP PIN Definition
| Pin | Symbol | Function |
|---|---|---|
| 1 | SDA | I2C data input and output |
| 2 | SCL | I2C clock input |
| 3 | RST | External Reset, Low is active |
| 4 | INT | External interrupt to the host |
| 5 | VDD | Power Supply : +3.3V |
| 6 | GND | Ground for analog circuit |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 5.0 | inch |
| Dot Matrix | 720 × 3(RGB) ×1280 | dots |
| Module dimension | 73.3 (W) × 127.6 (H) ×3.45 | mm |
| Active area | 62.1 (W) × 110.4 (H) | mm |
| Dot pitch | 0.08625(W) × 0.08625(H) | mm |
| LCD type | TFT, Normally Black, Transmissive | |
| Viewing angle | 80/80/80/80 | |
| Aspect Ratio | 16:9 | |
| Backlight Type | LED, Normally White | |
| TFT Drive IC | ILI9881C or Equivalent | |
| TFT Interface | MIPI | |
| PCAP FW Version | 0x5F | |
| PCAP IC | GT928 | |
| Touch Panel | Projected capacitive touch panel (PCAP) | |
| Surface | Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
Typical Operation Conditions
| Item | Symbol | Values | Unit | ||
|---|---|---|---|---|---|
| Min | Typ | Max | |||
| Power supply for analog circuit | VCI | 2.5 | 3.3 | 3.6 | V |
| Power supply for logic circuit | IOVCC | 1.65 | 1.8 | 3.6 | V |
| Supply Voltage For Touch Logic | VDDT | 2.8 | - | 3.3 | V |
| Current for Driver | IDD | - | 44 | - | mA |
Backlight Driving Conditions
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|
| LED current | ILED | - | 40 | - | mA |
| LED voltage | VLED+ | 19.6 | - | 23.8 | V |
| LED Life Time | 30,000 | - | - | Hr |
