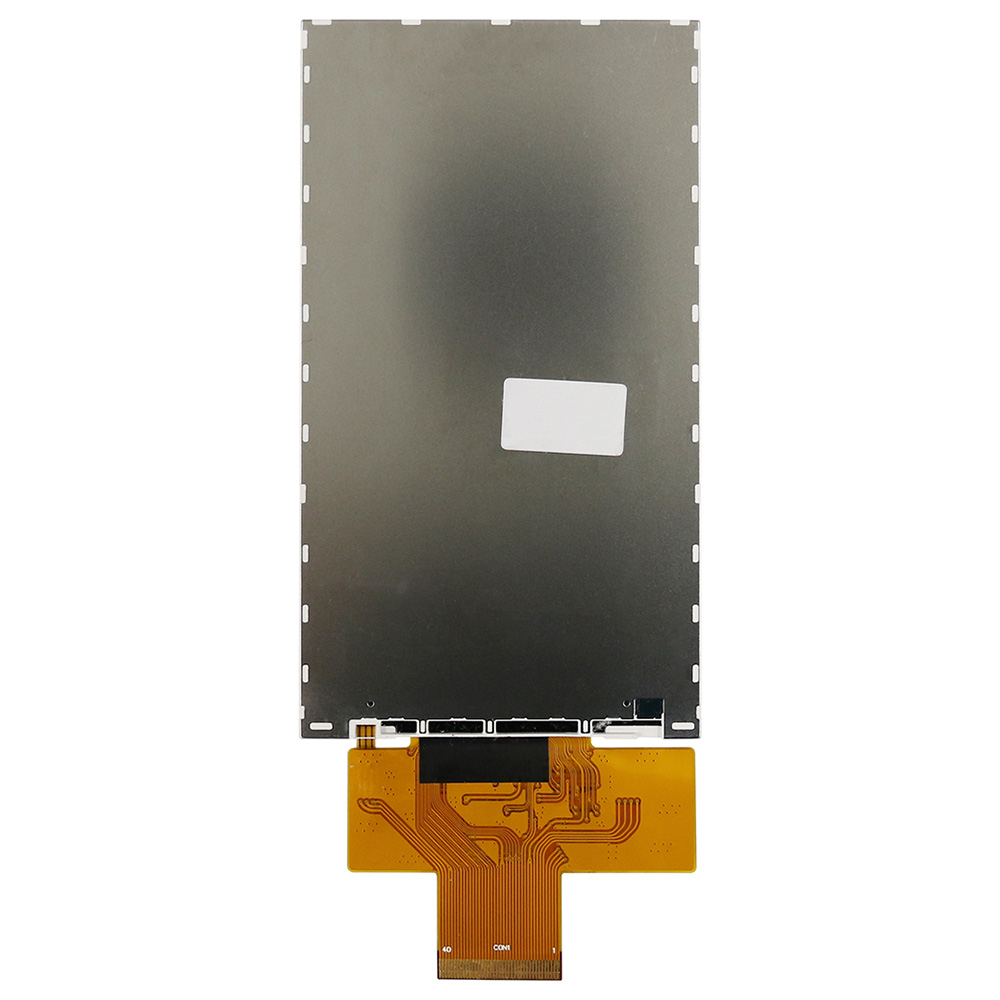

5" MIPI LCD Display, MIPI DSI Interface LCD Panel - IPS
Model No. WF50DTYA3MNN0
►MIPI LCD Display
►Size : 5 inch
►Resolution : 720×1280 dots
►View Direction : IPS
►MIPI DSI Interface
►TFT Drive IC : ILI9881C
►Control-Board : No
►Brightness (cd/m²): 300
►Frame Through Hole : No
►Touch Screen : Without touch screen
DESCRIPTION
WF50DTYA3MNN0 is a 5 inch IPS TFT-LCD display module, resolution 720 x1280 pixels. This 5 inch TFT-LCD module supports MIPI DSI interface and is featured with IPS panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and having HD resolution, contrast ratio 800 (typical value). It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.
This 5 inch MIPI LCD Display Panel is having module dimension of 66.10 x 120.4 mm and AA size of 62.1 x 110.4 mm; it integrated driver IC ILI9881C on module, power supply for analog range 2.5v to 3.6v. This TFT module is portrait mode, if you would like to use landscape mode please contact with us for more technical support.

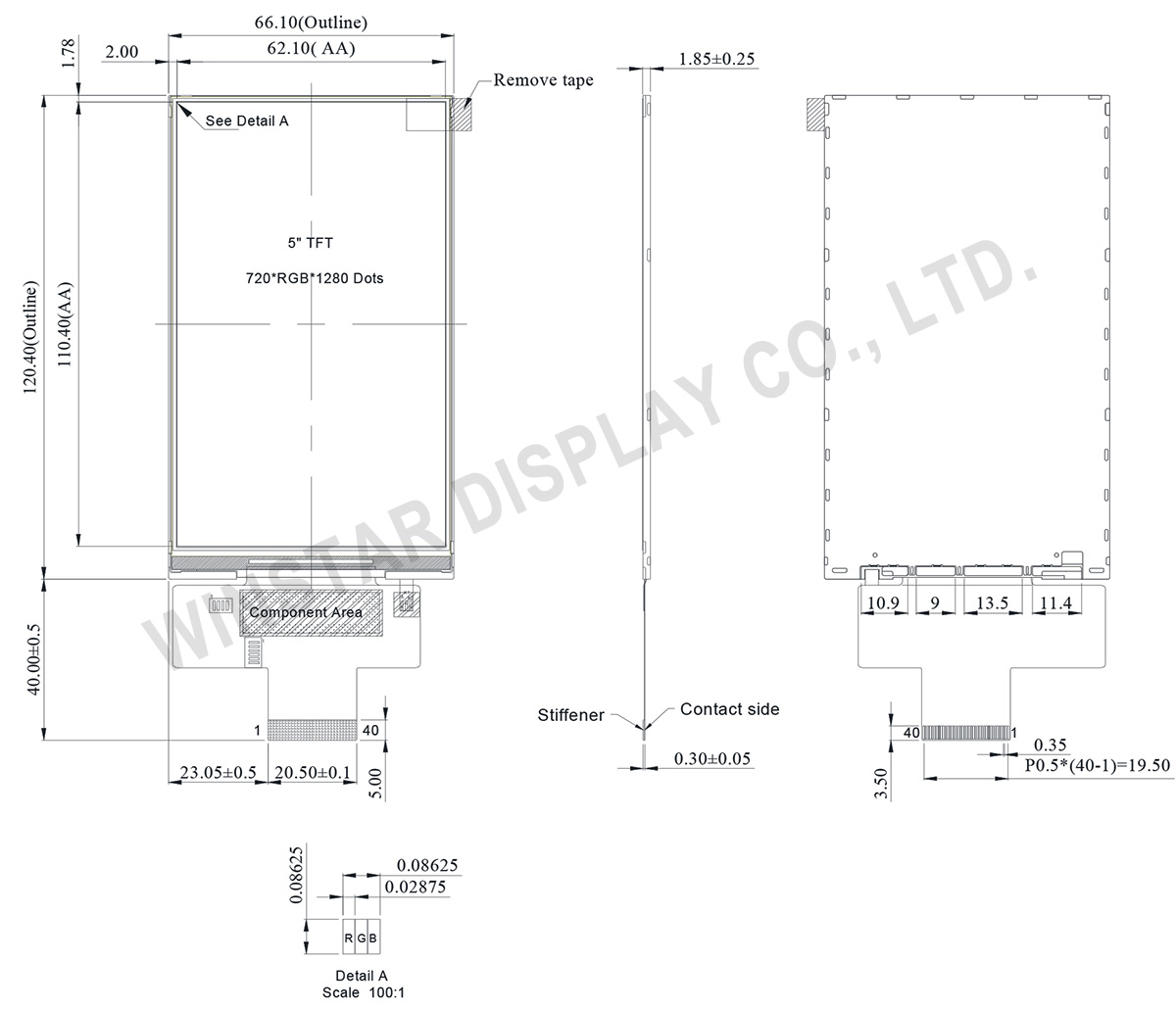

DRAWING
SPECIFICATIONS
Interface
LCM PIN Definition
| Pin | Symbol | Function |
|---|---|---|
| 1 | NC/TP_GND | No connection |
| 2 | NC/TP_SDA | No connection |
| 3 | NC/TP_SCL | No connection |
| 4 | NC/TP_INT | No connection |
| 5 | NC/TP_RST | No connection |
| 6 | NC/YU | No connection |
| 7 | NC/XL | No connection |
| 8 | NC/YD | No connection |
| 9 | NC/XR | No connection |
| 10-11 | VCI | Power supply for analog circuits. Connect to an external power supply of 2.5V to 3.6V |
| 12-13 | NC | No connection |
| 14 | RESET | The external reset input Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power. Fix to VDDI level when not in use. |
| 15 | TE | Tearing effect output pin. Leave the pin open when not in use. |
| 16 | NC | No connection |
| 17-18 | GND | Power ground |
| 19-20 | IOVCC | Power supply for analog circuits. Connect to an external power supply of 1.65V to 3.6V |
| 21 | GND | Power ground |
| 22 | D3P | MIPI DSI differential data pair. (Data lane 3) |
| 23 | D3N | |
| 24 | GND | Power ground |
| 25 | D2P | MIPI DSI differential data pair. (Data lane 2) |
| 26 | D2N | |
| 27 | GND | Power ground |
| 28 | CLKP | MIPI DSI differential clock pair |
| 29 | CLKN | |
| 30 | GND | Power ground |
| 31 | D1P | MIPI DSI differential data pair. (Data lane 1) |
| 32 | D1N | |
| 33 | GND | Power ground |
| 34 | D0P | MIPI DSI differential data pair. (Data lane 0) |
| 35 | D0N | |
| 36-37 | GND | Power ground |
| 38 | LED+ | Power for LED backlight anode |
| 39 | LED1- | Power for LED1 backlight cathode |
| 40 | LED2- | Power for LED2 backlight cathode |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 5.0 | inch |
| Dot Matrix | 720× 3(RGB) ×1280 | dots |
| Module dimension | 66.10 (W) × 120.4 (H) ×1.85 | mm |
| Active area | 62.1 (W) × 110.4 (H) | mm |
| Dot pitch | 0.08625(W) ×0.08625(H) | mm |
| LCD type | TFT, Normally Black, Transmissive | |
| Viewing angle | 80/80/80/80 | |
| Aspect Ratio | 16:9 | |
| TFT Drive IC | ILI9881C or Equivalent | |
| TFT Interface | MIPI | |
| Backlight Type | LED, Normally White | |
| Touch Panel | Without Touch Panel | |
| Surface | Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
1. Typical Operation Conditions
| Item | Symbol | Values | Unit | ||
|---|---|---|---|---|---|
| Min. | Typ. | Max. | |||
| Power supply for analog circuit | VCI | 2.5 | 3.3 | 3.6 | V |
| Power supply for logic circuit | IOVCC | 1.65 | 1.8 | 3.6 | V |
| Current for Driver | IDD | - | 44 | mA | |
2. Backlight Driving Conditions
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|
| LED current | ILED | - | 40 | - | mA |
| LED voltage | VLED+ | 19.6 | - | 23.8 | V |
| LED Life Time | 30,000 | - | - | Hr |
