Interface
LCM PIN Definition
| Pin |
Symbol |
Function |
| 1 |
IF1 |
Input data format control |
| 2 |
IF2 |
Input data format control |
| 3 |
POL |
Polarity Signal connect to VCOM driving circuit. |
| 4 |
RESET |
Hardware reset |
| 5 |
SPENA |
Chip select |
| 6 |
SPCL |
Serial Clock |
| 7 |
SPDA |
Serial Data |
| 8 |
B0 |
Blue Data bit |
| 9 |
B1 |
Blue Data bit |
| 10 |
B2 |
Blue Data bit |
| 11 |
B3 |
Blue Data bit |
| 12 |
B4 |
Blue Data bit |
| 13 |
B5 |
Blue Data bit |
| 14 |
B6 |
Blue Data bit |
| 15 |
B7 |
Blue Data bit |
| 16 |
G0 |
Green Data bit |
| 17 |
G1 |
Green Data bit |
| 18 |
G2 |
Green Data bit |
| 19 |
G3 |
Green Data bit |
| 20 |
G4 |
Green Data bit |
| 21 |
G5 |
Green Data bit |
| 22 |
G6 |
Green Data bit |
| 23 |
G7 |
Green Data bit |
| 24 |
R0 |
Red Data bit |
| 25 |
R1 |
Red Data bit |
| 26 |
R2 |
Red Data bit |
| 27 |
R3 |
Red Data bit |
| 28 |
R4 |
Red Data bit |
| 29 |
R5 |
Red Data bit |
| 30 |
R6 |
Red Data bit |
| 31 |
R7 |
Red Data bit |
| 32 |
Hsync |
Horizontal synchronous signal |
| 33 |
Vsync |
Vertical synchronous signal |
| 34 |
Data CLK |
Dot data clock |
| 35 |
AVDD(analog) |
Analog power: 4.5V~5.5V |
| 36 |
AVDD(analog) |
Analog power: 4.5V~5.5V |
| 37 |
VCC(Digital) |
Digital power: 3V~3.6V |
| 38 |
VCC(Digital) |
Digital power: 3V~3.6V |
| 39 |
NPC |
NTSC/PAL mode Auto detection result H:NTSC/L:PAL |
| 40 |
VGL |
Gate off power |
| 41 |
VGL |
Gate off power |
| 42 |
UD |
Up/down selection |
| 43 |
VGH |
Gate on power |
| 44 |
LRC |
Shift direction of device internal shift register control. |
| 45 |
GND |
System ground pin of the IC.Connect to system ground. |
| 46 |
VCOM |
VCOM driving input |
| 47 |
VCOM |
VCOM driving input |
| 48 |
ENB |
Signal to settle the horizontal display position |
| 49 |
GND |
System ground pin of the IC.Connect to system ground. |
| 50 |
GND |
System ground pin of the IC.Connect to system ground. |
PCAP PIN Definition
| Pin |
Symbol |
Function |
| 1 |
VSS |
Ground for analog circuit |
| 2 |
VDDT |
Power Supply : +3.3V |
| 3 |
SCL |
I2C clock input |
| 4 |
NC |
No connect |
| 5 |
SDA |
I2C data input and output |
| 6 |
NC |
No connect |
| 7 |
/RST |
External Reset, Low is active |
| 8 |
NC |
No connect |
| 9 |
/INT |
External interrupt to the host |
| 10 |
VSS |
Ground for analog circuit |

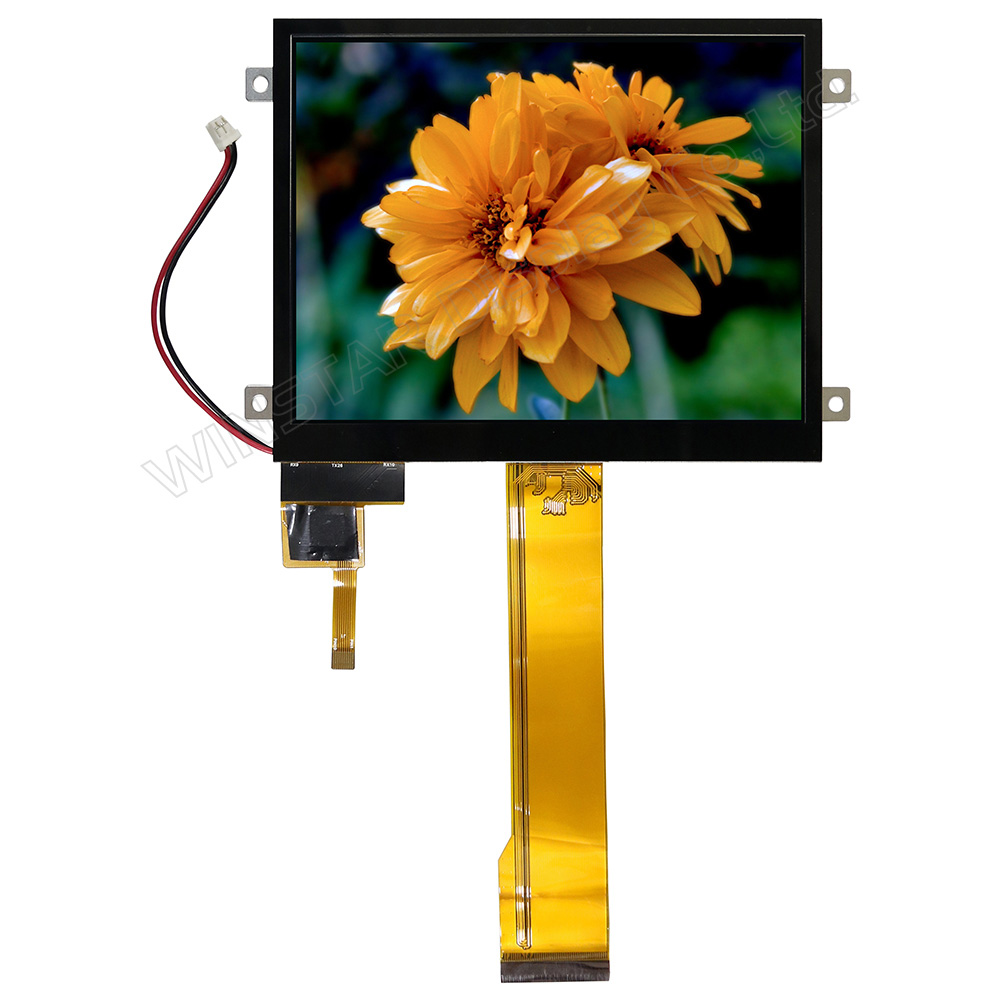

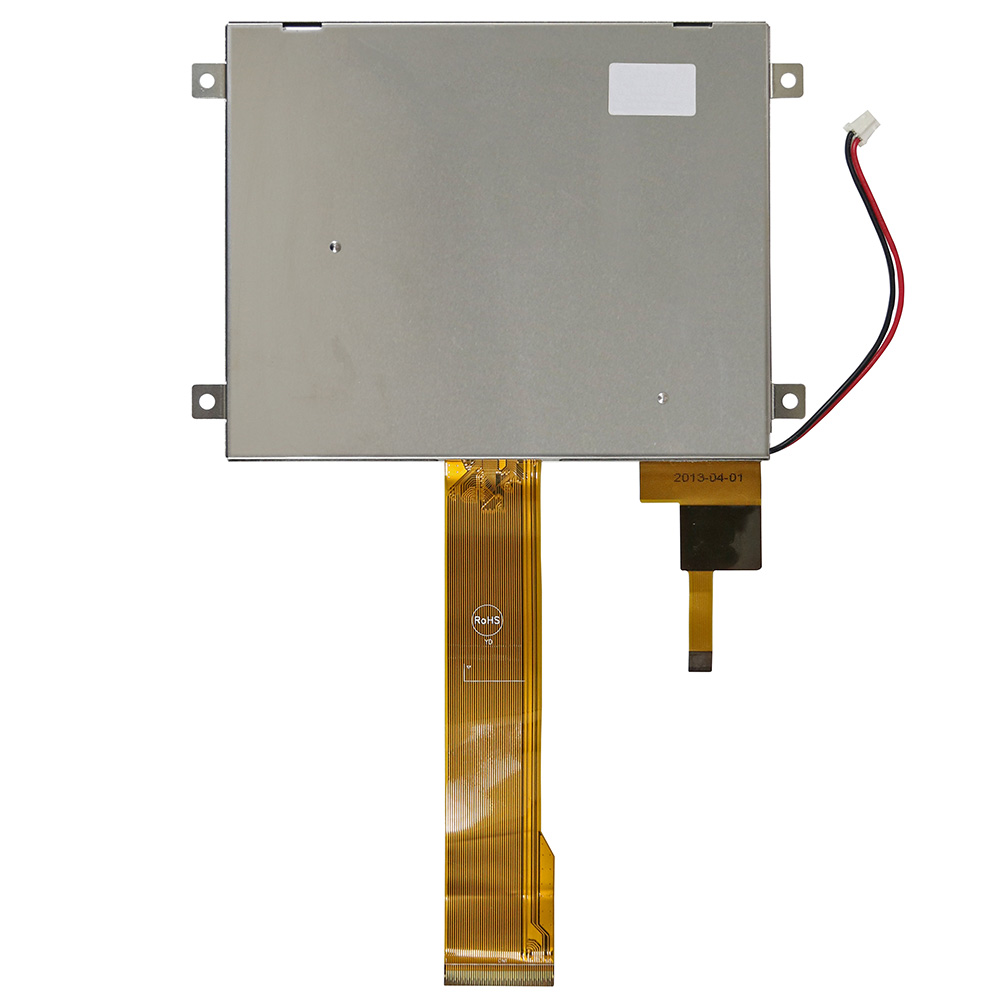

General Specifications
| Item |
Dimension |
Unit |
| Size |
5.7 |
inch |
| Dot Matrix |
320 × RGB × 240 (TFT) |
dots |
| Module dimension |
141.12 × 101.55 × 8.235 |
mm |
| Active area |
115.2 × 86.4 |
mm |
| Dot pitch |
0.12 × 0.36 |
mm |
| LCD type |
TFT, Normally White, Transmissive |
| TFT Interface |
24-bit RGB |
| View Direction |
12 o'clock |
| Gray Scale Inversion Direction |
6 o'clock |
| Aspect Ratio |
4:3 |
| PCAP IC |
FT5426 or Equivalent |
| PCAP Interface |
I2C |
| PCAP FW Version |
FN058A001_FT5426__V03_20180910_all.bin |
| Backlight Type |
LED, Normally White |
| Touch Screen |
Projected Capacitive Touch Screen (PCAP) |
| Surface |
Glare |
Absolute Maximum Ratings
| Item |
Symbol |
Min |
Typ |
Max |
Unit |
| Operating Temperature |
TOP |
-20 |
- |
+70 |
℃ |
| Storage Temperature |
TST |
-30 |
- |
+80 |
℃ |
Electrical Characteristics
| Item |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Supply Voltage For Logic |
VCC |
- |
3.0 |
3.3 |
3.6 |
V |
| Supply Voltage For Touch Logic |
VDDT |
- |
2.8 |
|
3.3 |
V |
| Input High Volt. |
VIH |
- |
0.7 Vcc |
- |
Vcc |
V |
| Input Low Volt. |
VIL |
- |
0 |
- |
0.3 Vcc |
V |
| LCD Driving Supply Voltage |
VGH x 1 |
Ta=25℃ |
- |
15 |
|
V x 3 |
| VGL x 2 |
- |
-10 |
|
| VcomH |
2.5 |
|
5.5 |
| VcomL |
-2.0 |
|
0 |
| Supply Current |
IVCC |
VCC=3.3V |
- |
5 |
8 |
mA |
