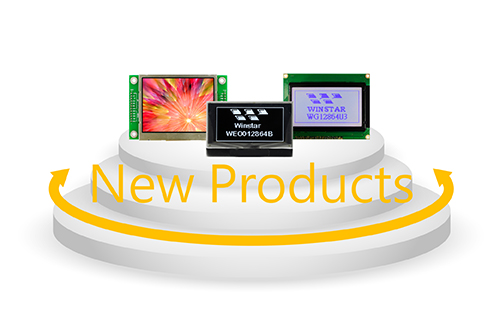

最新产品

显示内容	型号	结构	尺寸 (寸)	外形尺寸 (mm)	视域尺寸 (mm)	有效尺寸 (mm)	视角	点大小 (mm)	接口	接口 (System)	IC Part No.	控制板	亮度 (cd/m²)	主推	灰阶	触控面板	支援指数 (Finger)	温度 (°C)
800×480	WL0F00050000FGAAASA00	--		68.4×122.7						CAN								-20~70
480×480	WF40ETWAA6MNN0		4	78.8×82.95	73.06×71.38	71.856×70.176	IPS		MIPI DSI		ST7701S	No	500	★		No		-30~80
480×480	WF40ESWAA6MNN0		4	78.8×82.95	73.06×71.38	71.856×70.176	IPS		MIPI DSI		ST7701S	No	1000	★		No		-30~80
800×480	WF50FTWAGLNN0		5	120.7×75.8	110.7×67.4	108×64.8	IPS		LVDS		ST7262	No	500	★★★		No		-30~80
800×480	WF70A9TWAGDNN0		7	165.8×106.61	154.9×93.8	152.4×91.44	IPS		RGB		HX8249-A+HX8678-C	No	500	★★★		No		-30~80
800×480	WF70A9SWAGDNN0		7	165.8×106.61	154.9×93.8	152.4×91.44	IPS		RGB		HX8249-A+HX8678-C	No	1000	★★★		No		-30~80
1024×600	WF70A8SYAHLNT0		7	169.9×103.4	156.6×89.1	154.2144×85.92	IPS		LVDS		ST5021+ST5651	No	800			RTP		-20~70
1024×600	WF70A8SYAHLNG0		7	169.9×103.4	156.08×87.92	154.2144×85.92	IPS		LVDS		ST5021+ST5651	No	850			PCAP	5	-20~70
1024×600	WF101JSYAHLNN0		10.1	235×143	226×128.5	222.72×125.28	IPS		LVDS		EK79001HN+EK73215BCGA	No	1100	★		No		-20~70
1024×600	WF101JSYAHLNB0		10.1	235×143	226×128.5	222.72×125.28	IPS		LVDS		EK79001HN+EK73215BCGA	PCAP	900	★		PCAP	5	-20~70
1024×600	WF101JTYAHLNN0		10.1	235×143	226×128.5	222.72×125.28	IPS		LVDS		EK79001HN+EK73215BCGA	No	500	★		No		-20~70
1024×600	WF70MTABHLRN0		7	166.2×101.2	156.08×87.92	154.08×85.92	12H		SPI,UART		STM32	Yes	350			PCAP	1	-20~70
800×480	WF50FSYFGDHGV		5	120.7×75.8	109×65.1	108×64.8	IPS		HDMI (CN)		TFP401	Yes	750	★★		PCAP	1,2,option	-20~70
1024×600	WF70A8TYFHLHGV		7	169.9×103.4	156.08×87.92	154.2144×85.92	IPS		HDMI (CN)		TFP401	Yes	450			PCAP	1,2,option	-20~70
800×480	WF50BSIAGDNN0		5	120.7×75.8	110.7×67.4	108×64.8	12H		--		--	No	950	★★★		No		-20~70
800×480	WF70B2SIAGDNG0		7	165×100	156.68×88.52	154.08×85.92	12H		RGB		HX8264-E+HX8664-B	No	700	★★★		PCAP	5	-20~70
128×64	WEO012864A-CTP	COG	1.54	43.04×28.22	37.05×19.52	35.05×17.51		0.249×0.249	6800,8080,SPI,I2C		SSD1309				No	PCAP	1
128×64	WEO012864Q-CTP	COG	2.7	73×41.16	63.41×32.69	61.41×30.69		0.45×0.45	6800,8080,SPI,I2C		SSD1309				No	PCAP	1
128×64	WEO012864V	COG	0.96	24.74×16.9	22.74×11.86	21.74×10.86		0.15×0.15	SPI,I2C		SSD1315				No	No
128×128	WEO128128D-CTP	COG	1.18	Ø50.5	Ø31	Ø30		0.21×0.21	SPI,I2C		SSD1327				Support	PCAP	1
160×128	WEO160128A	COG	1.92	34.5×48.8	30.908×41.34	28.908×39.34		0.206×0.226	6800,8080,SPI,I2C		SH1108				No	No
256×64	WEO025664D-CTP	COG	3.55	100.4×36.1	88.52×22.28	87.52×21.28		0.312×0.303	6800,8080,SPI		SSD1322				Support	PCAP	1
128×64	WEA012864MX	COG+PCB	0.96	27.3×27.3	23.744×13.204	21.744×11.204		0.148×0.148	I2C		SSD1306				No	No
128×128	WEA128128A	COG+PCB	1.5	34.2×45.5	28.86×28.86	26.86×26.86		0.185×0.185	SPI,I2C		SSD1327				Support	No
256×64	WEX025664B-CTP	COF	3.12	89.2×29	78.78×21.18	76.778×19.178		0.278×0.278	6800,8080,SPI		SSD1322				Support	PCAP	1
20×2	WEP002002A	COG+FR+PCB	2.93	92.3×23.3	77.92×16.28	73.52×11.52		0.62×0.67	6800,8080,SPI,I2C		SSD1311				No
16×2	WO1602I3/I5	COG+PCB		66×28	40×9.98	38×7.98		0.36×0.43	I2C		ST7032i
128×64	WO12864K	COG		89.7×49.8	66.8×35.5	63.98×31.98		0.48×0.48	6800,8080,SPI		ST7565V
128×64	WO12864K1	COG		89.7×49.8	66.8×35.5	63.98×31.98		0.48×0.48	6800,8080,SPI		ST7565P
128×128	WO128128A2	COG+PCB		60×62.79	42×42	44×44		0.308×0.308	6800,8080,SPI,I2C		ST75161
240×128	WO240128B2	COG+PCB		140×84	114×64	107.98×57.58		0.43×0.43	6800,8080,SPI		ST7586S
256×128	WO256128A2	COG+PCB		93×54	70.7×38.8	66.54×33.26		0.24×0.24	6800,8080,SPI,I2C		ST75256
