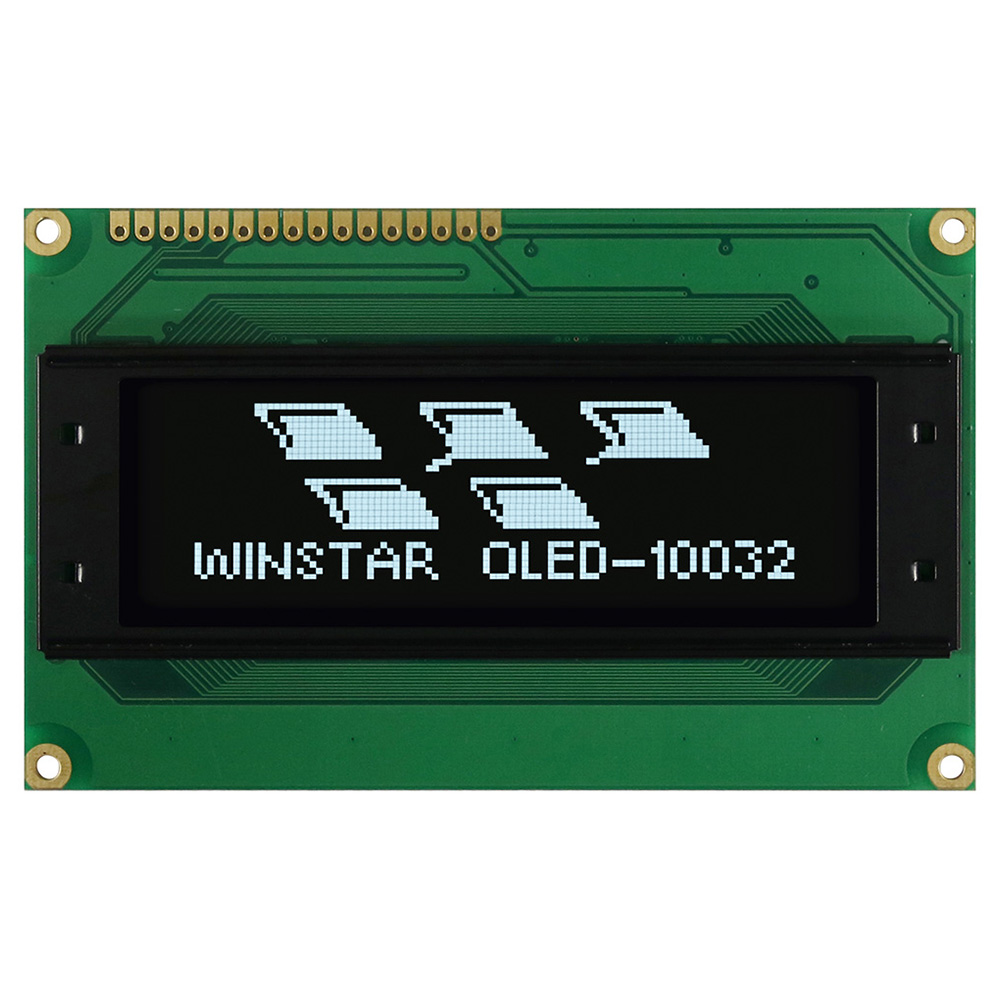

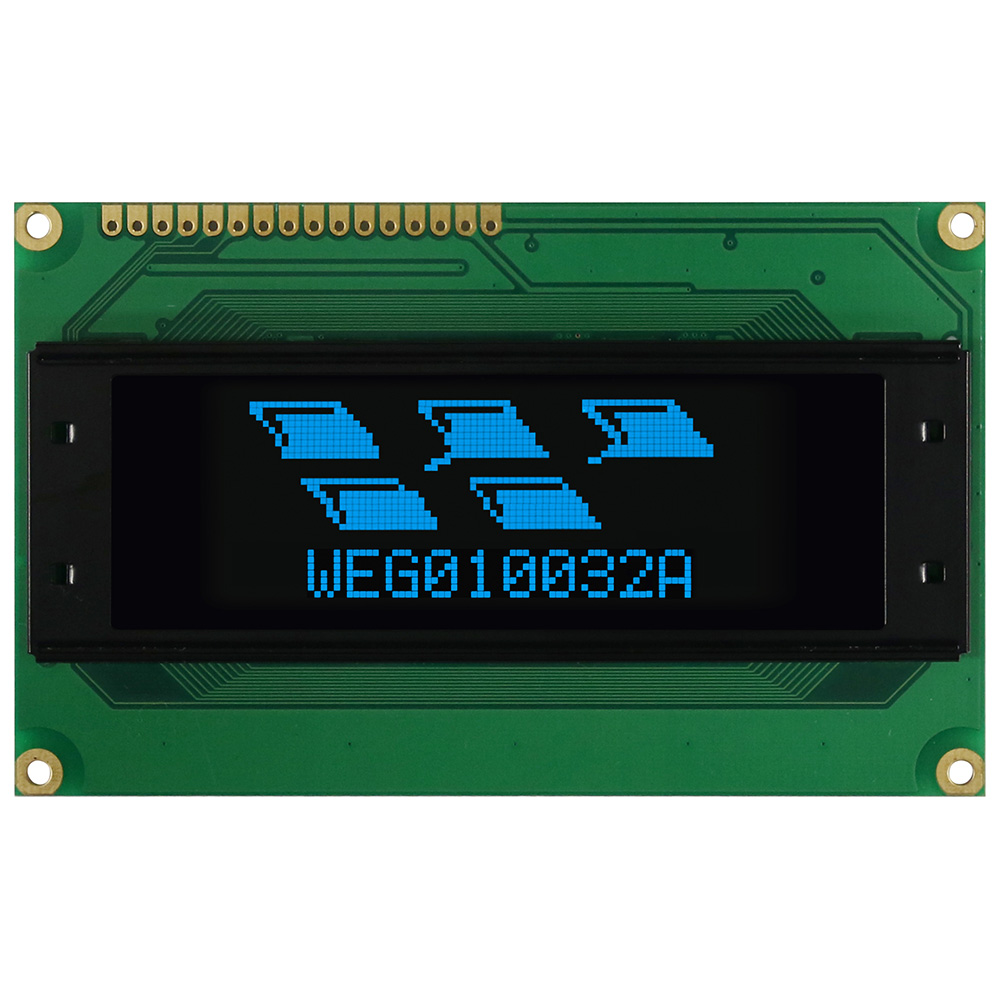

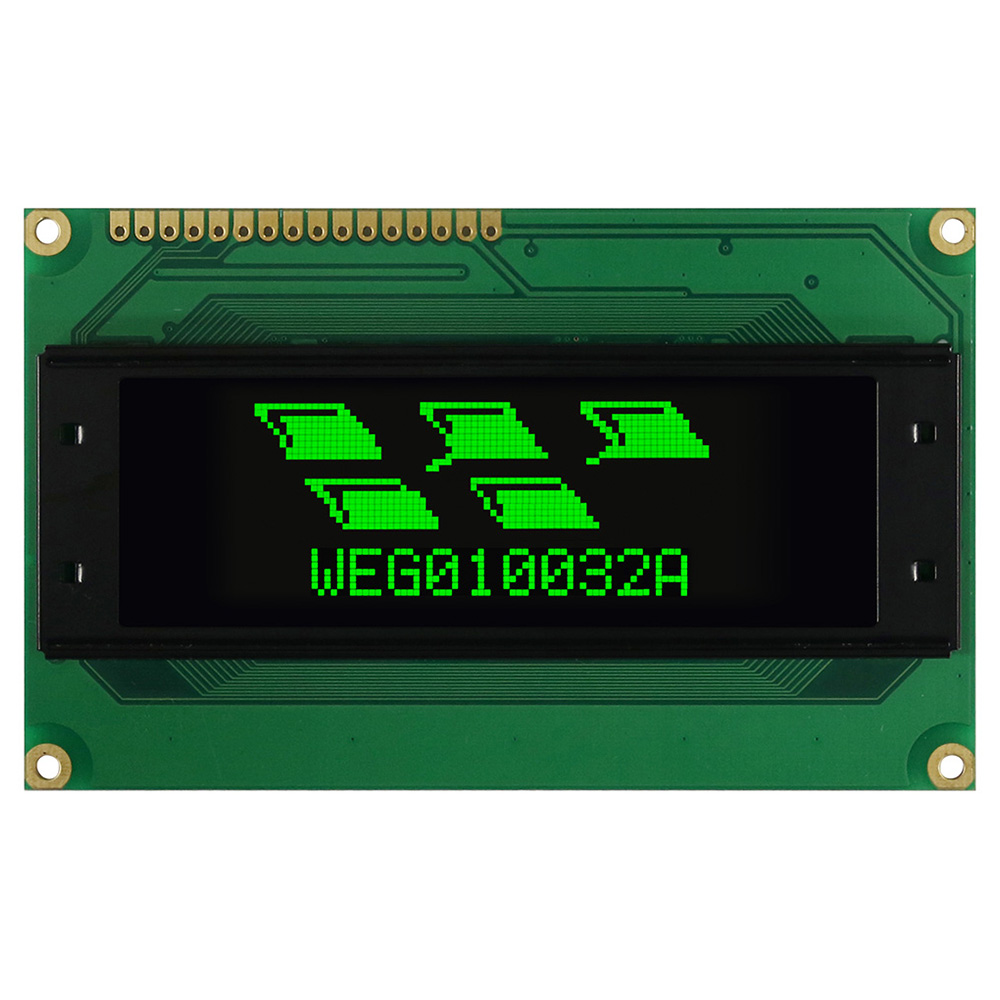

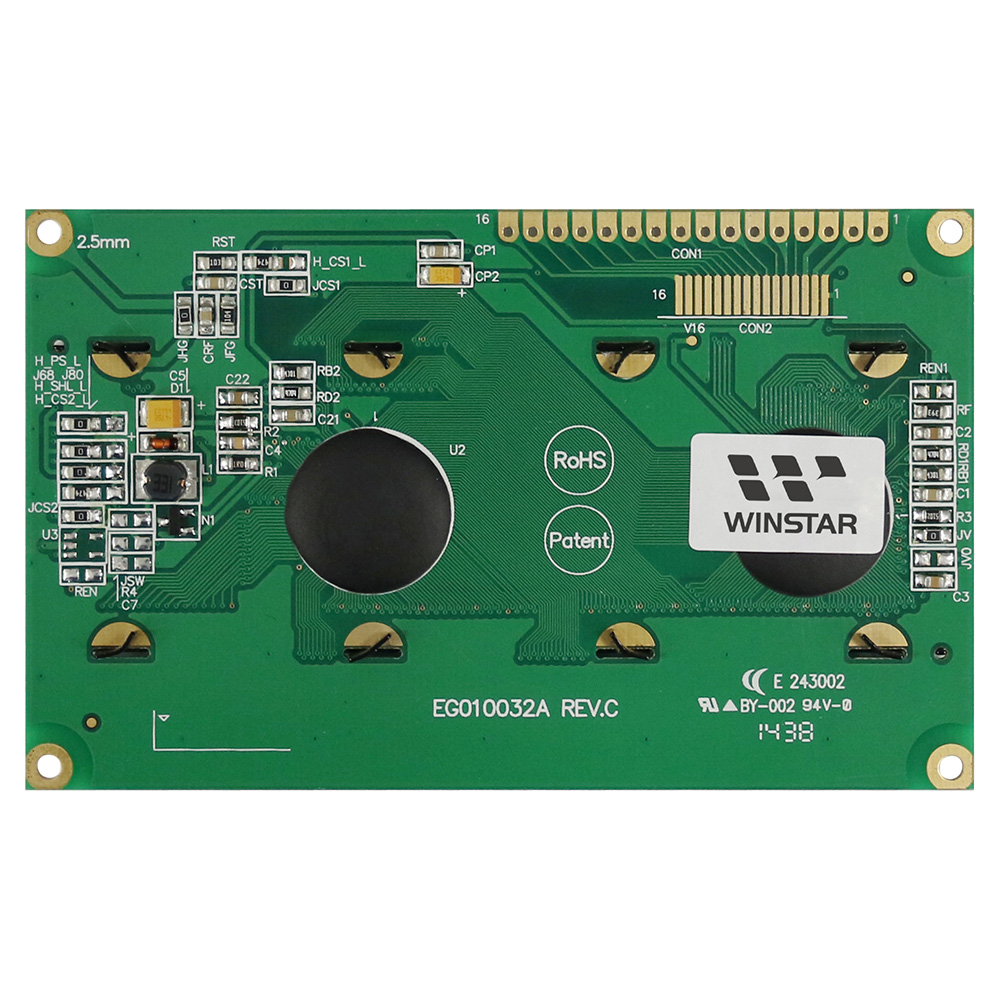

2.44" OLED Graphic 100x32

Model No. WEG010032A

►Type: Graphic
►Structure: COB
►Size: 2.44"
►100 x 32 Dot Matrix
►Built-in Controller WS0010
►5V power supply
►1/16 duty cycle
►Interface: 6800, option 8080, SPI
►Display Color: White / Yellow / Blue / Green

PDF DOWNLOAD

DEMO CODE

ADD TO INQUIRY

PREV. BACK to LIST NEXT

DESCRIPTION

The 2.44" OLED displays of WEG010032A which has the same outline size of 98.00 x 60.00 mm, VA size of 77.00 x 25.20 mm and pin out as Winstar STN LCD standard item of WH2004A. WEG010032A is the equivalent Graphic type of WEH002004A. If your applications need Graphic mode to display the contents, you can choose WEG010032A which featured with display format of 100 x 32 dots. The typical power supply of this series is 5 voltage and the interface is parallel 4 /8 bit 6800 (optional 8080 or serial SPI).

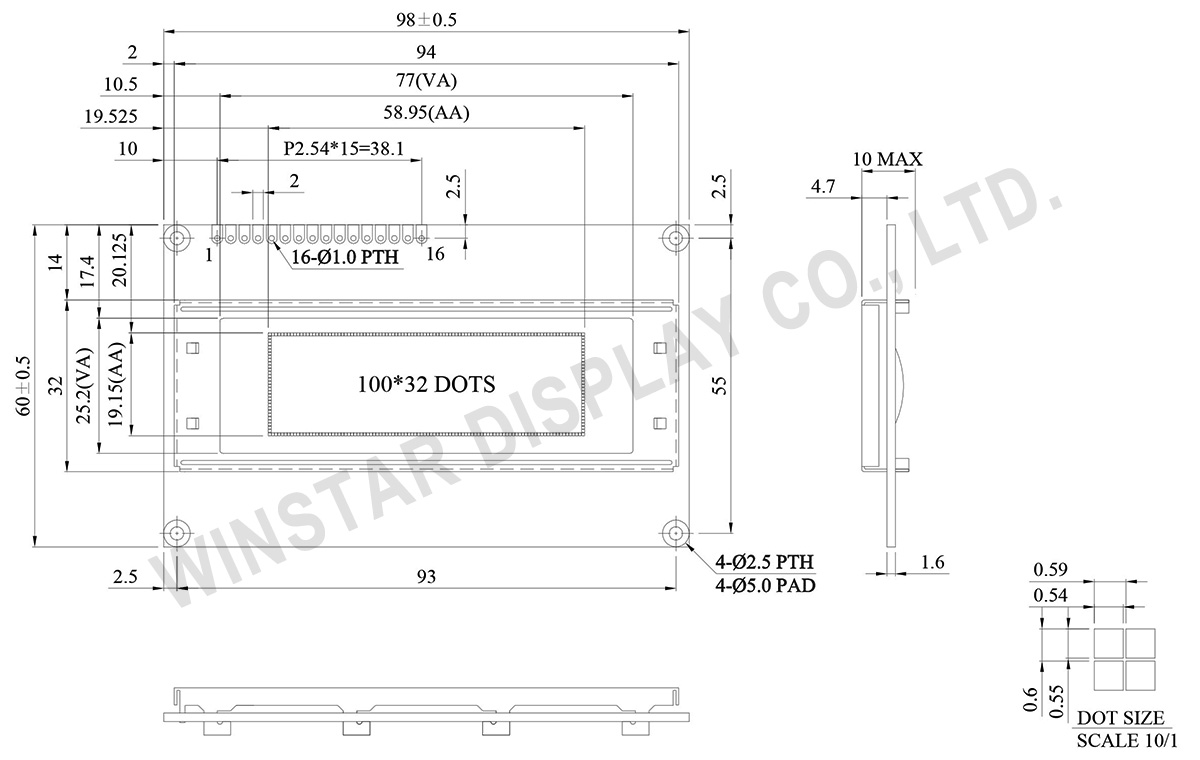

DRAWING

Data source ref: WEG010032AWPP5N00001

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Level	Description
1	VSS	0V	Ground
2	VDD	5.0V	Supply Voltage for logic
3	NC	－	No connect
4	RS	H/L	H: DATA, L: Instruction code
5	R/W	H/L	H: Read(Module→MPU) L: Write(MPU→Module)
6	E	H,H→L	Chip enable signal
7	DB0	H/L	Data bit 0
8	DB1	H/L	Data bit 1
9	DB2	H/L	Data bit 2
10	DB3	H/L	Data bit 3
11	DB4	H/L	Data bit 4
12	DB5	H/L	Data bit 5
13	DB6	H/L	Data bit 6
14	DB7	H/L	Data bit 7
15	CS1	－	Chip1 select input pin
16	CS2	－	Chip2 select input pin

Mechanical Data

Item	Dimension	Unit
Dot Matrix	100 × 32	Dots
Module dimension	98.0 × 60.0 × 10.0(MAX)	mm
View area	77.0 × 25.20	mm
Active area	58.95 × 19.15	mm
Dot size	0.54 × 0.55	mm
Dot pitch	0.59 × 0.60	mm
Panel Type	OLED, Monochrome
Duty	1/16

Absolute Maximum Ratings

Item	Symbol	Min	Max	Unit
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TST	-40	+85	°C
Supply Voltage For Logic	VDD-VSS	-0.3	5.3	V

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For Logic	VDD-VSS	－	4.8	5.0	5.3	V
Input High Volt.	VIH	－	0.8 VDD	－	VDD	V
Input Low Volt.	VIL	－	GND	－	0.2 VDD	V
Output High Volt.	VOH	IOH=-0.5mA	0.8 VDD	－	VDD	V
Output Low Volt.	VOL	IOL=0.5mA	GND	－	0.2 VDD	V
50% Check Board Operating Current	IDD	VDD=5V	65	70	75	mA
