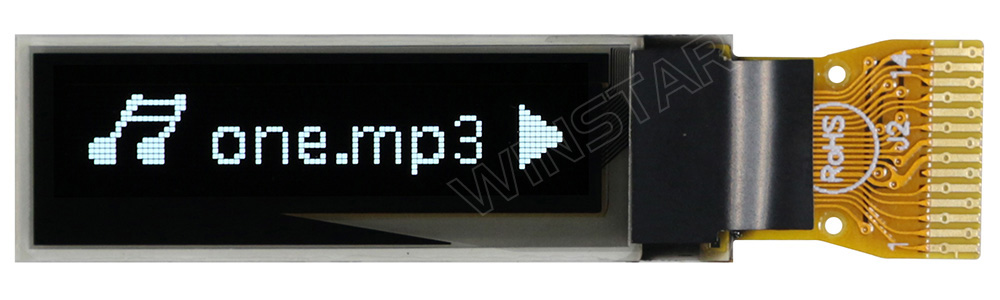

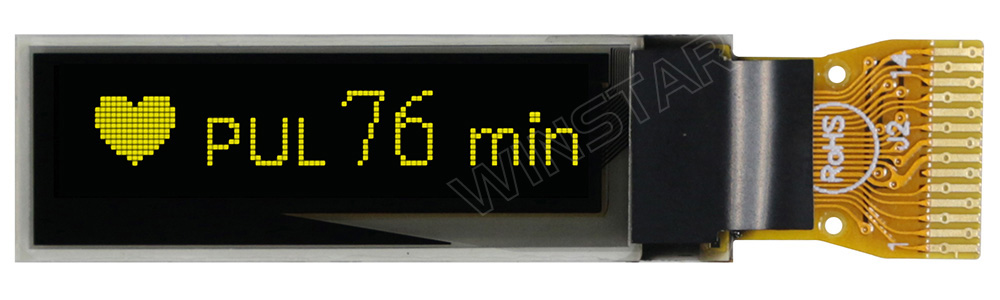

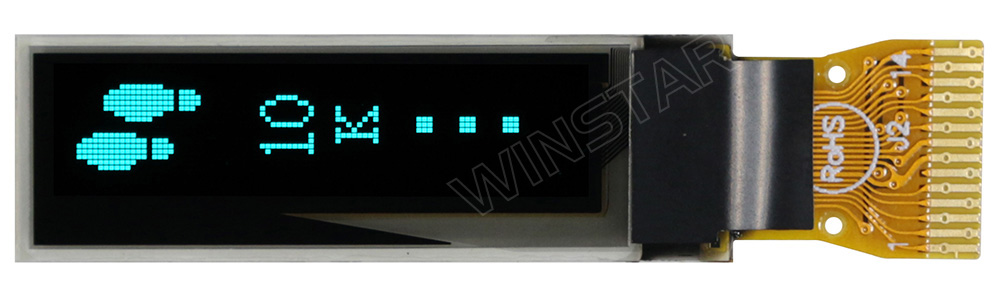

WEO009616A is a 0.84 inch Graphic passive matrix OLED display module which is made of 96x16 dots. This 0.84" WEO009616A has the module dimension of 29.1× 9.2 × 1.45 mm and Active Area size 21.104×3.504 mm. WEO009616A is built in with SSD1306 IC, it supports I2C interface, 3V power supply. The WEO009616A is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.84 inch small sized OLED display is suitable for wearable device, E-cigarette, MP3, personal care appliance, portable device, voice recorder pen, health device, etc.  WEO009616A module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +80℃. Below is the basic specification of WEO009616A as reference.
