Interface
LCM PIN Definition (CON4)
| Pin |
Symbol |
Function |
| 1 |
GND |
System round pin of the IC. Connect to system ground. |
| 2 |
VDD |
Power Supply : +3.3V |
| 3 |
BL_E |
Backlight control signal , H: On \ L: Off |
| 4 |
D/C |
Data/Command select |
| 5 |
WR |
Write strobe signal |
| 6 |
RD |
Read strobe signal |
| 7~14 |
DB0~DB7 |
Data bus |
| 15~22 |
DB8~DB15 |
Data bus (When select 8bits mode, this pin is NC) |
| 23~24 |
NC |
No connect |
| 25 |
CS |
Chip select |
| 26 |
RESET |
Hardware reset |
| 27 |
LR |
Right /Left selection; Default R/L is Pull High |
| 28 |
UD |
Up/down selection; Default U/D is Pull High |
| 29~32 |
NC |
No connection |
| 33~34 |
VLED- |
VLED- for B/L LED inverter (GND) |
| 35~36 |
VLED+ |
VLED+ for B/L LED inverter (+5V) |

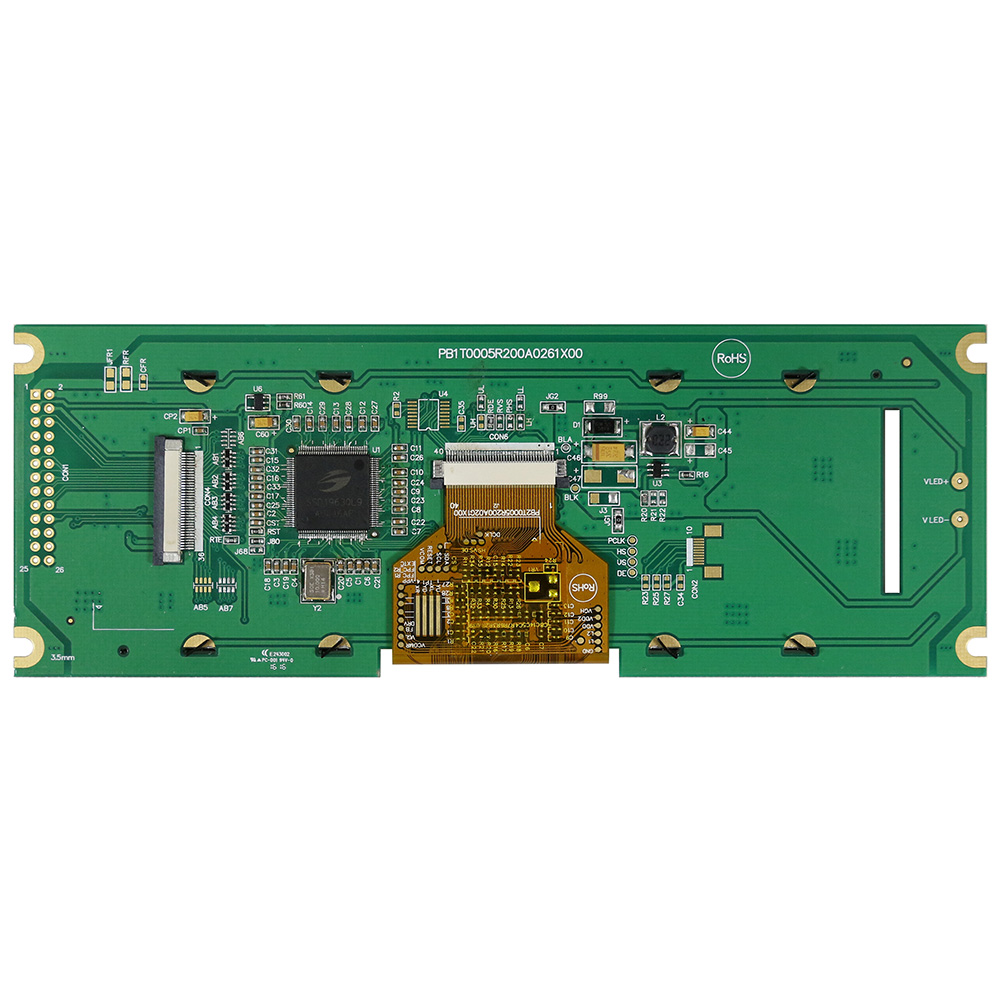

LCM PIN Definition (CON1)
| Pin |
Symbol |
Function |
| 1 |
NC(FG) |
No connect (Frame Grand) |
| 2 |
GND |
System round pin of the IC. Connect to system ground. |
| 3 |
VDD |
Power Supply : +3.3V |
| 4 |
BLE |
Backlight control signal , H: On \ L: Off |
| 5 |
WR |
Write strobe signal |
| 6 |
RD |
Read strobe signal |
| 7 |
CS |
Chip select |
| 8 |
D/C |
Data/Command select |
| 9 |
NC |
No connect |
| 10 |
RESET |
Hardware reset |
| 11~18 |
DB0~DB7 |
Data bus |
| 19~20 |
NC |
No connect |
| 21 |
VLED+ |
VLED+ for B/L LED inverter (+5V) |
| 22 |
VLED- |
VLED- for B/L LED inverter (GND) |
| 23~25 |
NC |
No connect |
| 26 |
GND |
Hardware reset |

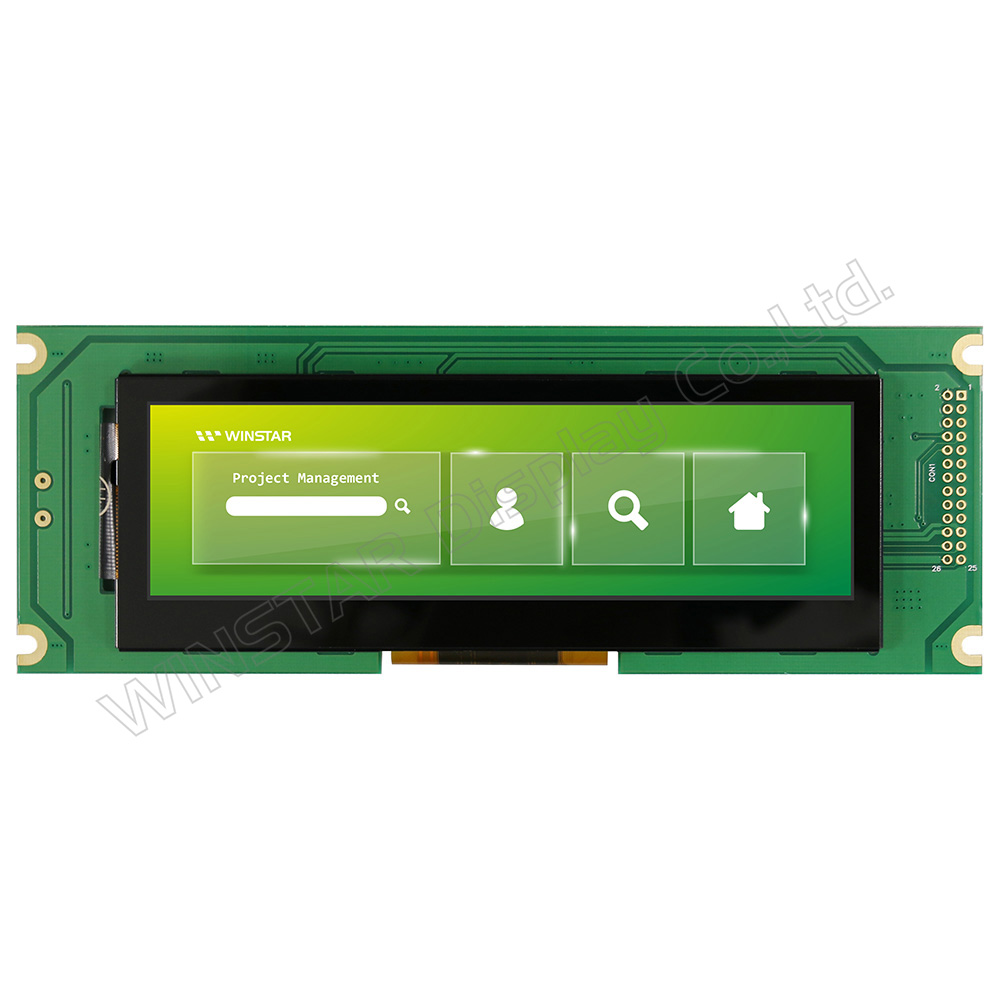

General Specifications
| Item |
Dimension |
Unit |
| Size |
5.2 |
inch |
| Dot Matrix |
480 × RGB × 128 |
dots |

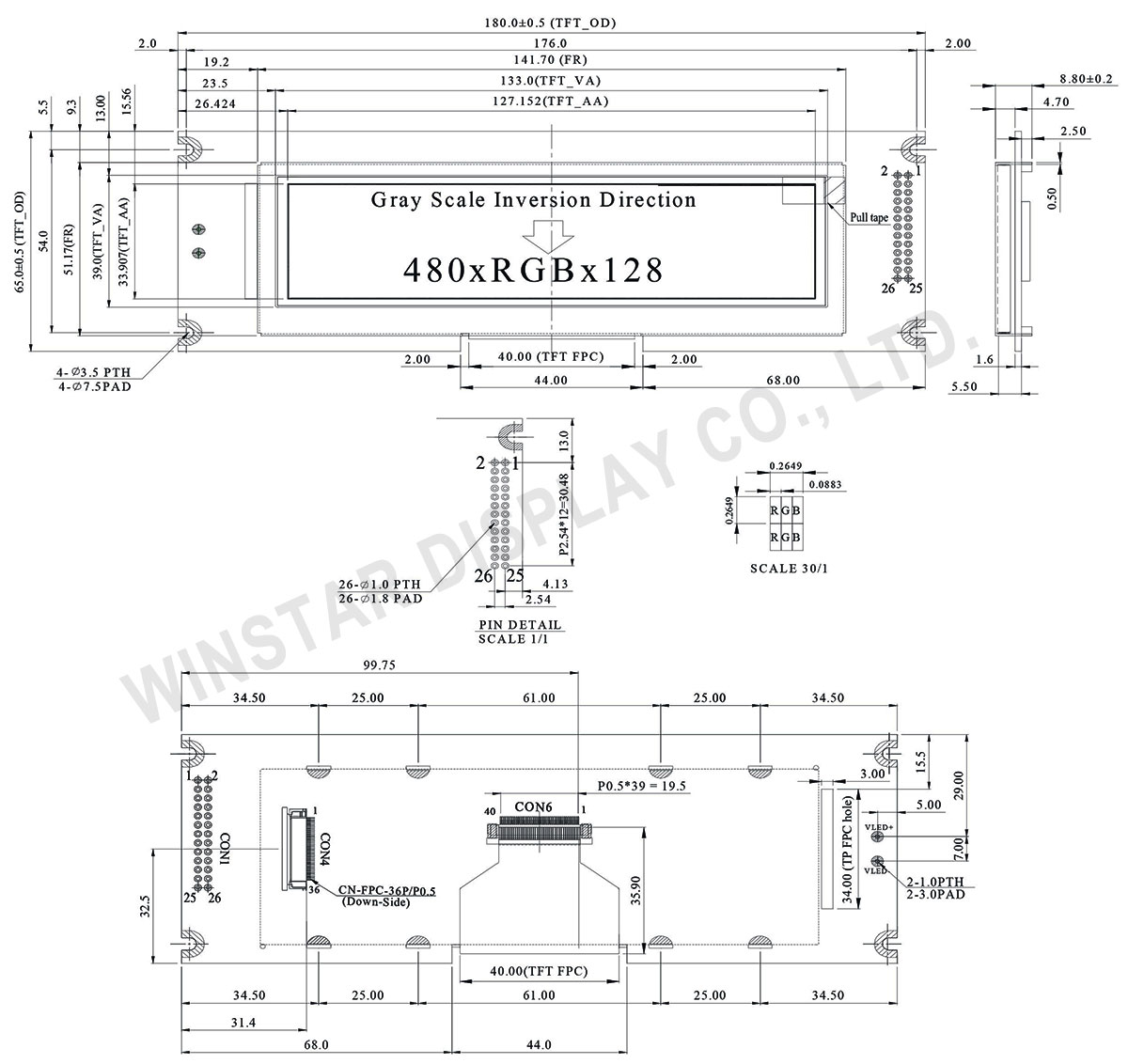

| Module dimension |
180.0 × 65.0 × 8.8 |
mm |
| Active area |
127.152 × 33.9072 |
mm |
| Dot pitch |
0.0883 × 0.2649 |
mm |
| LCD type |
TFT, Normally White, Transmissive |
| View Direction |
6 o'clock |
| Gray Scale Inversion Direction |
12 o'clock |
| Aspect Ratio |
Bar Type |
| Backlight Type |
LED, Normally White |
| Driver IC |
SSD1963 |
| Interface |
Digital 8080 family MPU 8bit/16bit |
| With /Without TP |
Without touch panel (screen) |
| Surface |
Glare |
Absolute Maximum Ratings
| Item |
Symbol |
Min |
Typ |
Max |
Unit |
| Operating Temperature |
TOP |
-20 |
－ |
+70 |
℃ |
| Storage Temperature |
TST |
-30 |
－ |
+80 |
℃ |
Electrical Characteristics
| Item |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
| Supply Voltage For LCM |
VDD |
－ |
3.0 |
3.1 |
3.3 |
V |
| Supply Current For LCM |
IDD |
－ |
－ |
200 |
－ |
mA |
