4.3 " All in one TFT SPI / UART Interface

Model No. WF43MTIBEDRTD

►UART/SPI TFT Display
►Size : 4.3”
►Resolution : 480 x 272 dots
►View Direction : 12H
►Interface : UART/SPI
►Built-in Controller : PIC24
►Control-Board : Yes
►Brightness(cd/m2) : 350
►Frame Through Hole : Yes
►Touch Screen : Resistive Touch Panel (RTP)
►O-Film: Option
►Development board optional︰
--For test function
--Part no. WWTFT-10#
--Dimension: 37 x 50 x12 mm
--USB input

PDF DOWNLOAD

DEMO CODE

ADD TO INQUIRY

PREV. BACK to LIST NEXT

DESCRIPTION

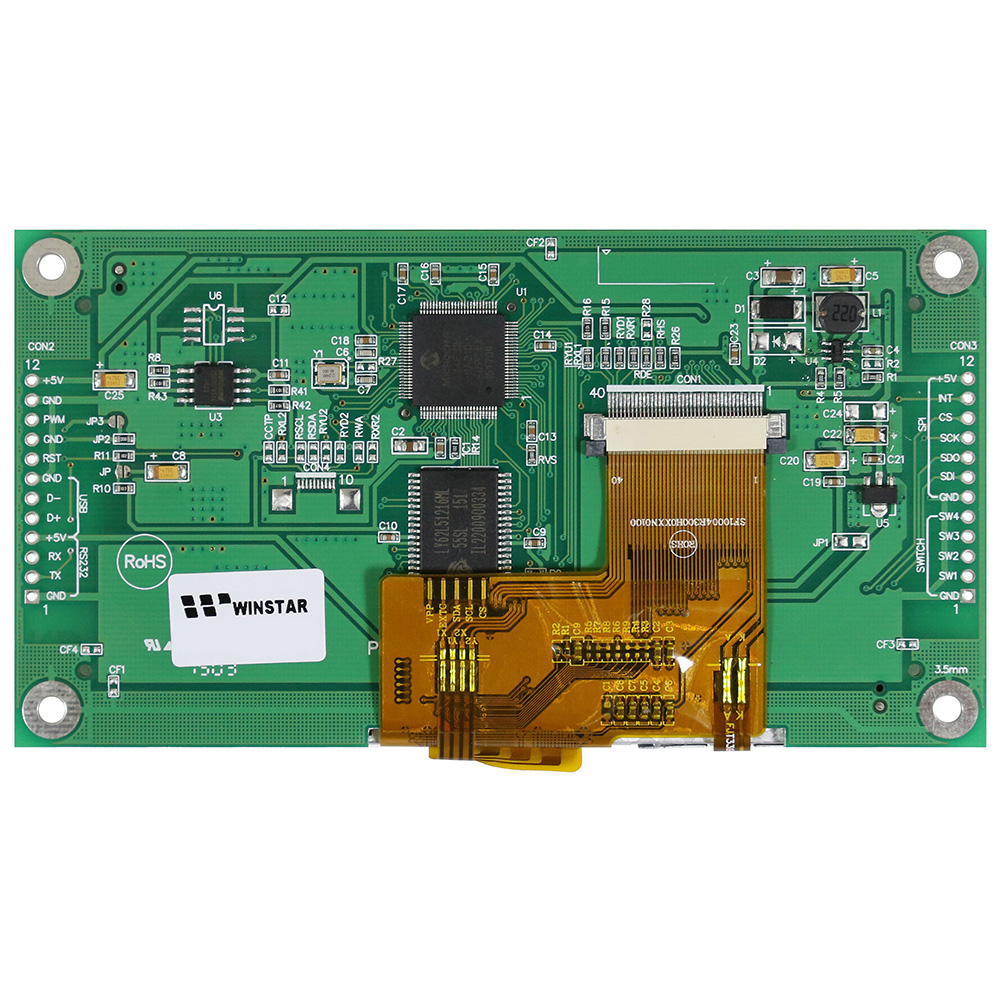

Winstar WF43MTIBEDRTD is a 4.3" TFT M Series (All in one TFT) with Resistive Touch Panel (RTP). This display is built-in control board which supports UART and SPI interface. The display module dimension is 125.5 x 67.2 mm and AA size of 95.04 x 53.86 mm. Winstar designs an optional development board which Part no. is WWTFT-10# for customers to accelerate the project for test function.

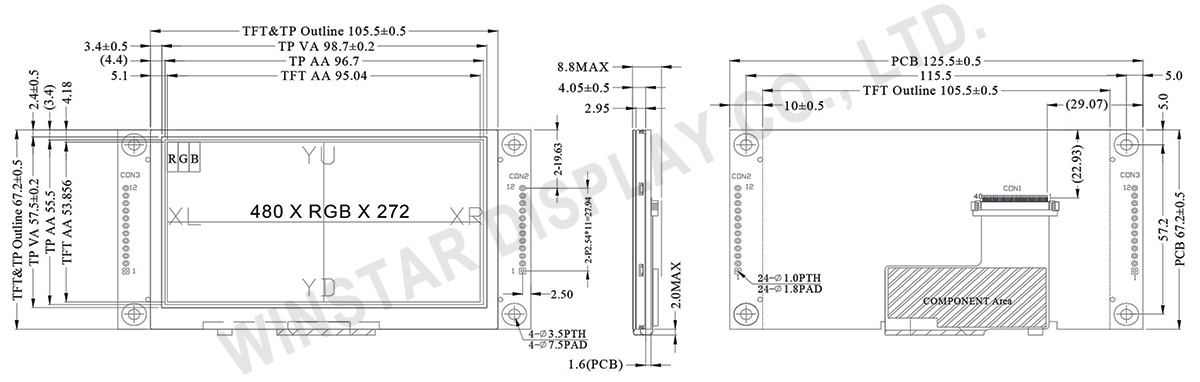

DRAWING

SPECIFICATIONS

Interface

CON 2

Pin	Symbol	I/O	Function
1	GND	Power Supply	Power Ground
2	TX	O	Uart Transmit pin
3	RX	I	Uart Receive pin
4	VBUS	Power Supply	Power supply : 5V
5	D+	I/O	USB Data +
6	D-	I/O	USB Data -
7	GND	Power Supply	Power Ground
8	/REST	I	Reset (active Low)
9	GND	Power Supply	Power Ground
10	PWM	O	Pulse width modulation
11	GND	Power Supply	Power Ground
12	VBUS	Power Supply	Power supply : 5V

CON 3

Pin	Symbol	I/O	Function
1	GND	Power Supply	Power Ground
2~5	SW1~SW4	I	Switch (active low)
6	GND	Power Supply	Power Ground
7	SDI	I	Master Input Slave Output (MISO)
8	SDO	O	Master Output Slave Input (MOSI)
9	SCK	I	Serial Clock
10	CS	I	Serial Chip selection
11	SPI_INT	O	Serial Interrupt
12	VBUS	Power Supply	Power supply : 5V

Note: I: input, O: output

General Specifications

Item	Dimension	Unit
Size	4.3	inch
Dot Matrix	480 × RGB × 272(TFT)	dots
Module dimension	125.5(W) × 67.2(H) × 8.8 (D)	mm
Active area	95.04 × 53.86	mm
Dot pitch	0.066 × 0.198	mm
LCD type	TFT, Normally White, Transmissive
View Direction	12 o'clock
Gray Scale Inversion Direction	6 o'clock
Aspect Ratio	16:9
Backlight Type	LED, Normally White
Interface	Uart 19200 Baud rate/SPI
Touch Panel	Resistive touch panel
Surface	Anti-Glare
