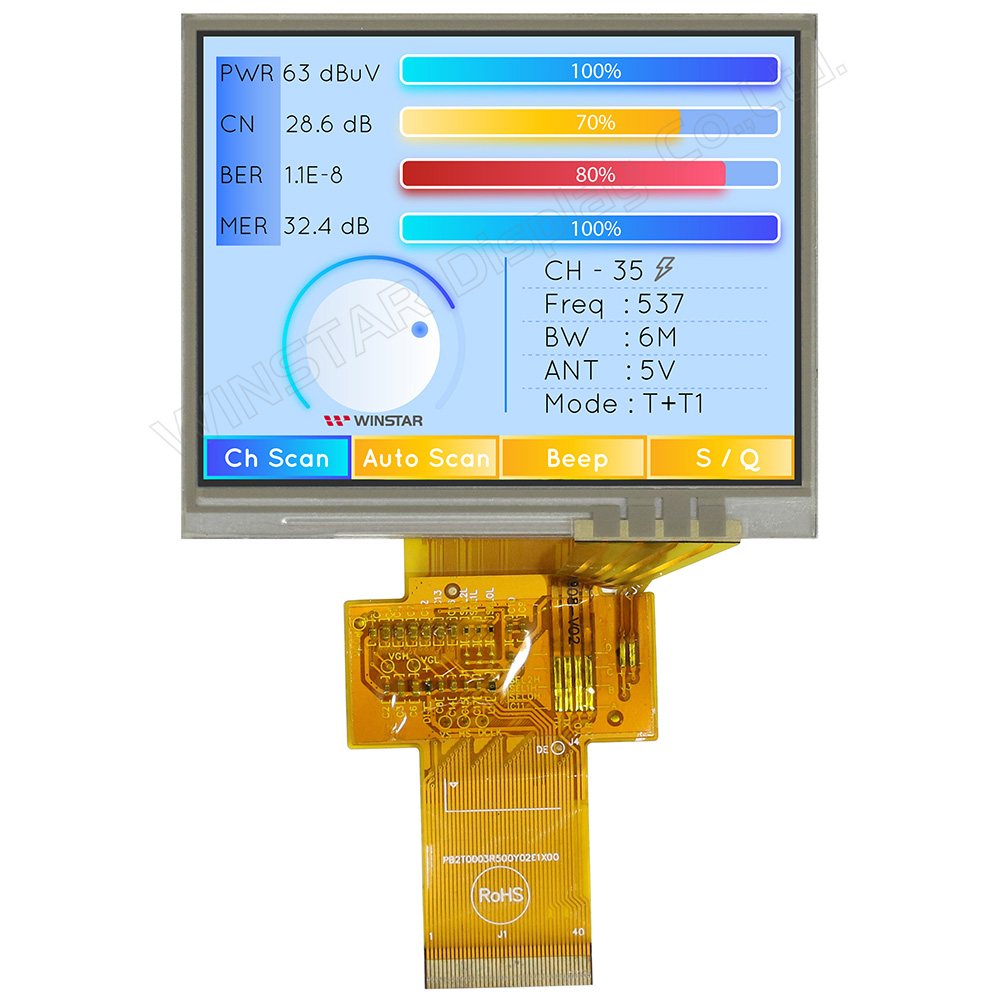

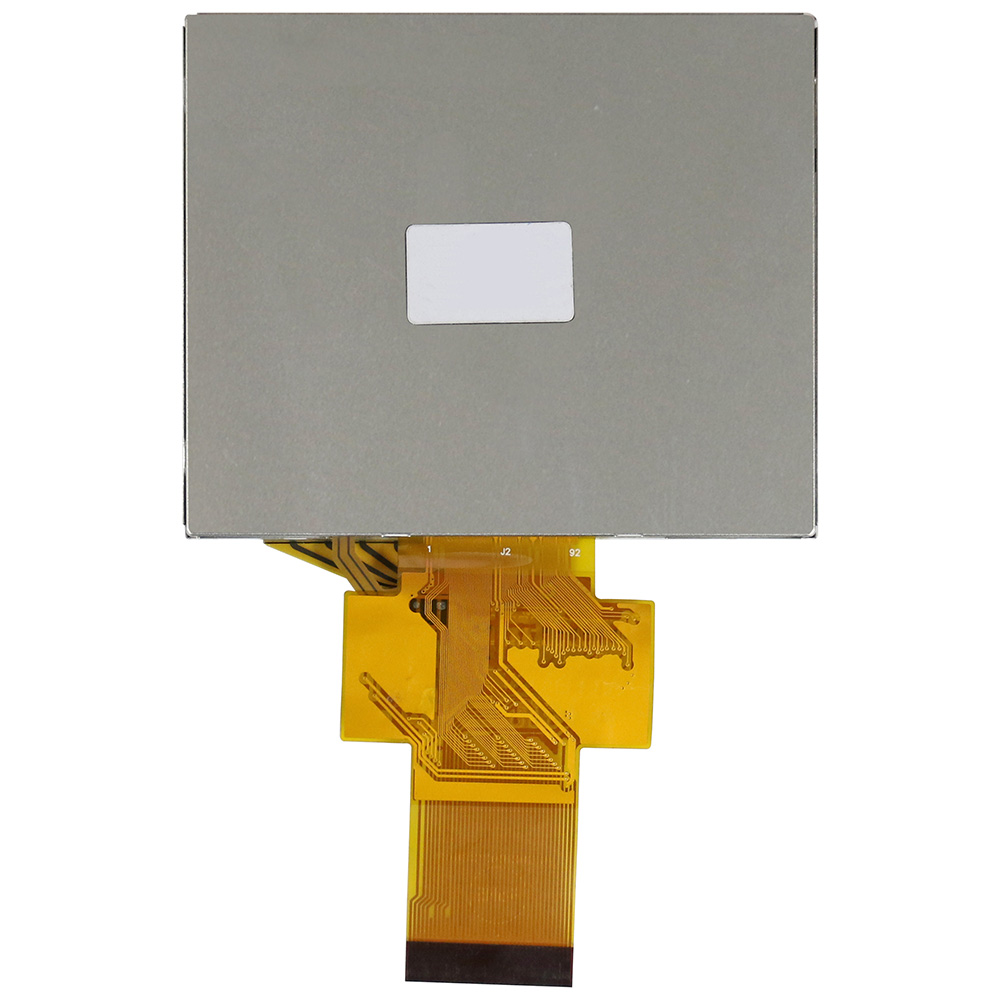

3.5 inch TFT LCD Screen Display Module
Model No. WF35YTIACDNT0
►Size : 3.5"
►Resolution : 320 x 240 dots
►View Direction : 12H
►Interface : RGB
►IC Part No. : --
►Control-Board :No
►Brightness(cd/m²) : 300
►Frame Through Hole : option
►Touch Screen : Resistive Touch Screen
►TFT LCD Screen Display
DESCRIPTION
The WF35YTIACDNT0 type is the 3.5 inch Winstar Y Series TFT LCD Screen Display which is the derivative model from WF35L. The key feature of WF35Y is having the same 40-pin pre-defined FPC on TFT LCD modules as the other sizes of Y Series. The Y Series modules are derivative products from the Winstar existing standard TFTs which uniform the pin assignment into a 40-pin FPC; and the FPC is placed in the central position on the bottom of TFT panel for each module. This WF35Y model supports DE and SYNC mode. WF35YTIACDNT0 is the WF35Y model with resistive touch screen module, there are PCAP and without TP options available.
Key Advantages of Winstar TFT Y Series:
Key Advantages of Winstar TFT Y Series:
- All Y Series TFT modules are including a same integrated 40-pin FPC pre-designed on modules, and the FPC is placed in the central position on the bottom of TFT panel for each module. The customers only have to supply the Logic Power, Backlight Power and RGB signal, it becomes easily for customers to design products.
- All Y Series built in DC-DC multi-output power (VGH, VGL, AVDD, VCOM).
- Multi-Function Capacitive Touch Panel and Resistive Touch Panel are available for all Y Series.

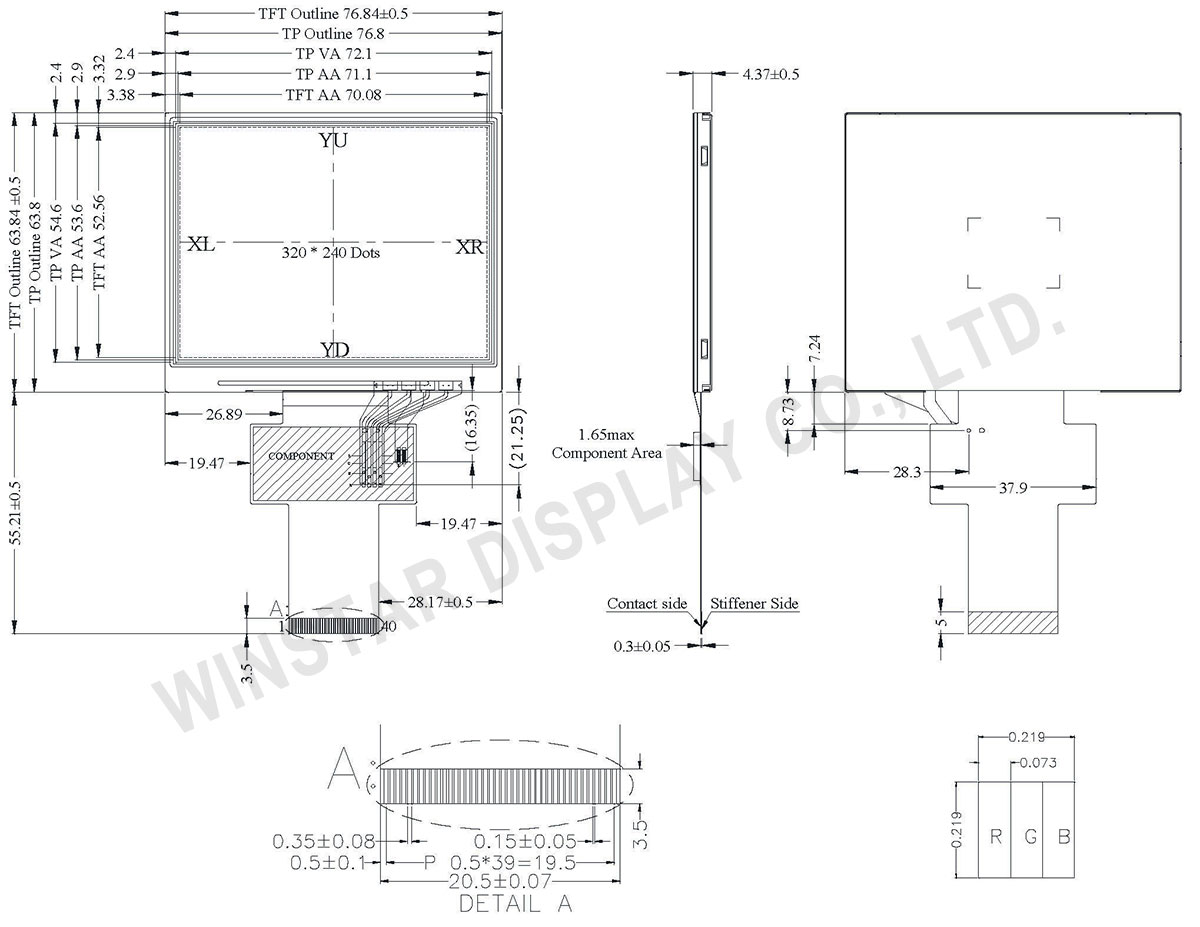

DRAWING
SPECIFICATIONS
Interface
| Pin | Symbol | Function |
|---|---|---|
| 1 | VLED- | Power for LED backlight cathode |
| 2 | VLED+ | Power for LED backlight anode |
| 3 | DGND | System ground pin of the IC. Connect to system ground. |
| 4 | VCC | Power Supply |
| 5 | R0 | Red Data bit(LSB) |
| 6~11 | R1~R6 | Red Data bit |
| 12 | R7 | Red Data bit (MSB) |
| 13 | G0 | Green Data bit(LSB) |
| 14~19 | G1~G6 | Green Data bit |
| 20 | G7 | Green Data bit (MSB) |
| 21 | B0 | Blue Data bit(LSB) |
| 22~27 | B1~B6 | Blue Data bit |
| 28 | B7 | Blue Data bit (MSB) |
| 29 | AVSS | Grounding for analog circuit Connect to system ground |
| 30 | CLK | Dot-clock signal and oscillator source |
| 31 | NC | No connect |
| 32 | HSYNC | Horizontal sync signal |
| 33 | VSYNC | Vertical sync signal |
| 34 | DE | Data Enable signal |
| 35 | NC | No connect |
| 36 | RESET | Hardware reset |
| 37 | XR | Right electrode |
| 38 | YD | Bottom electrode |
| 39 | XL | Left electrode |
| 40 | YU | Top electrode |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 3.5 | inch |
| Dot Matrix | 320 × RGB × 240 (TFT) | dots |
| Module dimension | 76.84 × 63.84 × 4.37 | mm |
| Active area | 70.08 × 52.56 | mm |
| Dot pitch | 0.073 × 0.219 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Aspect Ratio | 4:3 | |
| Backlight Type | LED, Normally White | |
| Touch Screen | Resistive Touch Screen | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electronical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For LCM | VCC | － | 3.0 | 3.3 | 3.6 | V |
| Supply Current For LCM | ICC | － | - | 12 | 18 | mA |
