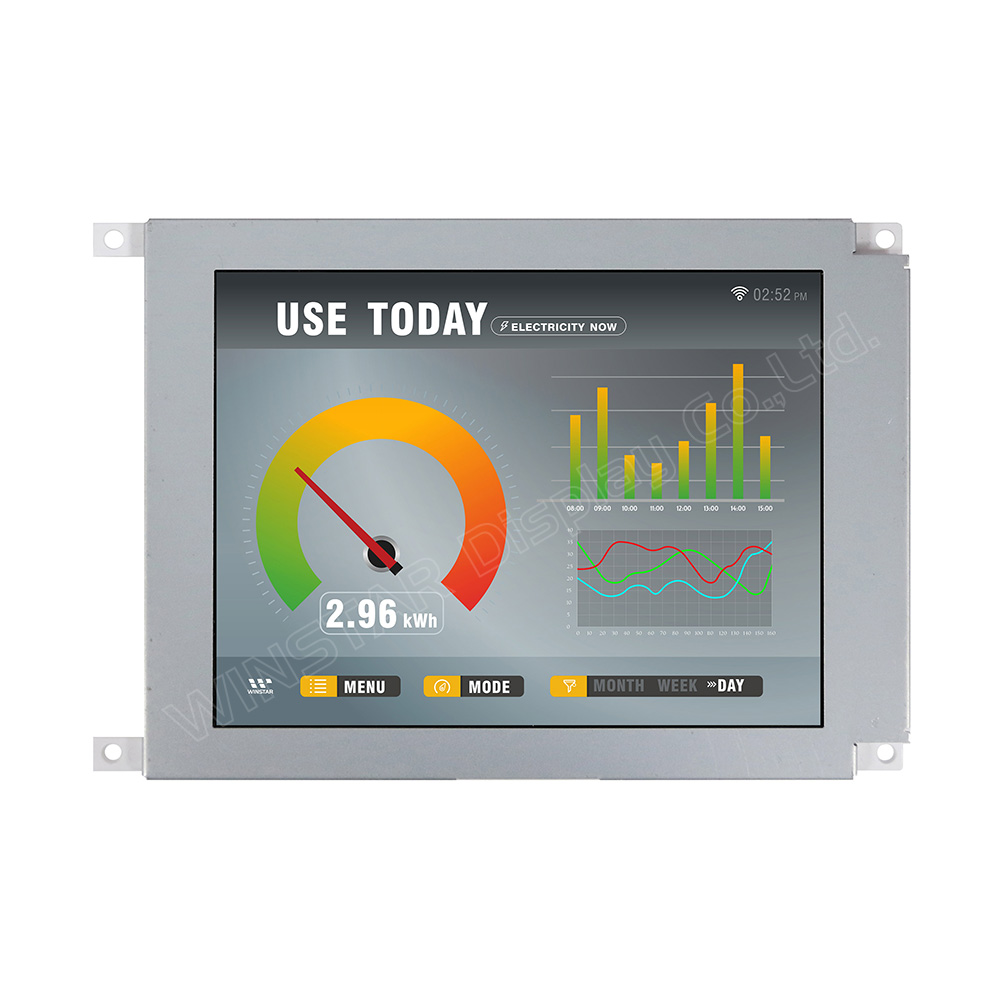

5.7 LCD Panel, 5.7 TFT LCD Display with LVDS Carrier Board
Model No. WF57BTCECLNN0
►5.7" TFT LCD
►Resolution : 320 x 240 dots
►View Direction : 12H
►Interface: LVDS (LVDS LCD Panel)
►IC Part No.: --
►Control-Board : Without control board
►Brightness(cd/m²): 500
►Frame Through Hole : Yes
►Touch Screen : Without touch screen
DESCRIPTION
Winstar 5.7 TFT LCD Panel Display WF57B is a very popular model in our TFT product line. Winstar offers WF57BTCECLNN0 module featured with a Carrier Board with LVDS interface display module. LVDS is already common place across a variety of applications particularly in industrial and consumer markets and further adoption of LVDS in embedded applications will continue.

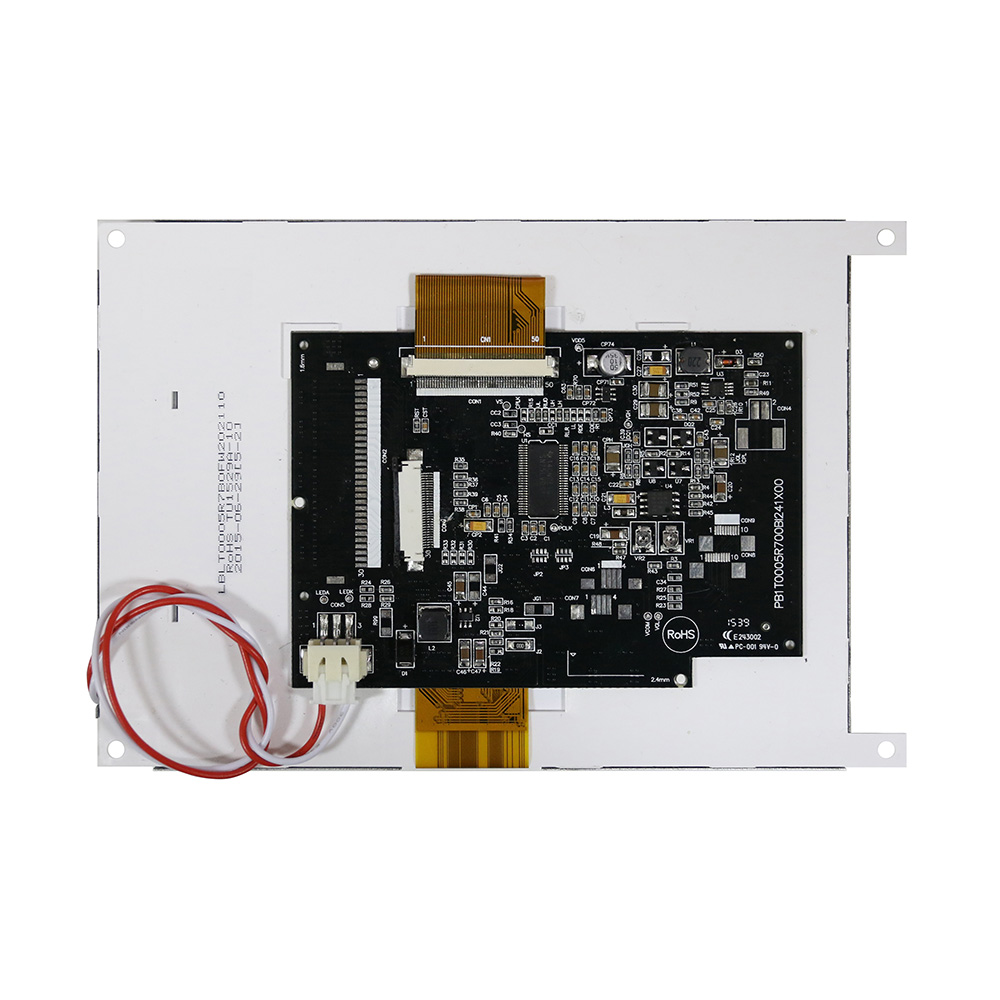

Winstar WF57B has an extended module with a carrier board featuring LVDS (low-voltage differential signal) data interface. The module dimension is160.0 x 109.0 mm and the AA size is 115.20 x 86.40 mm. This carrier board also has the POWER BOARD function as option. The users can choose FPC or cable connector for their applications.

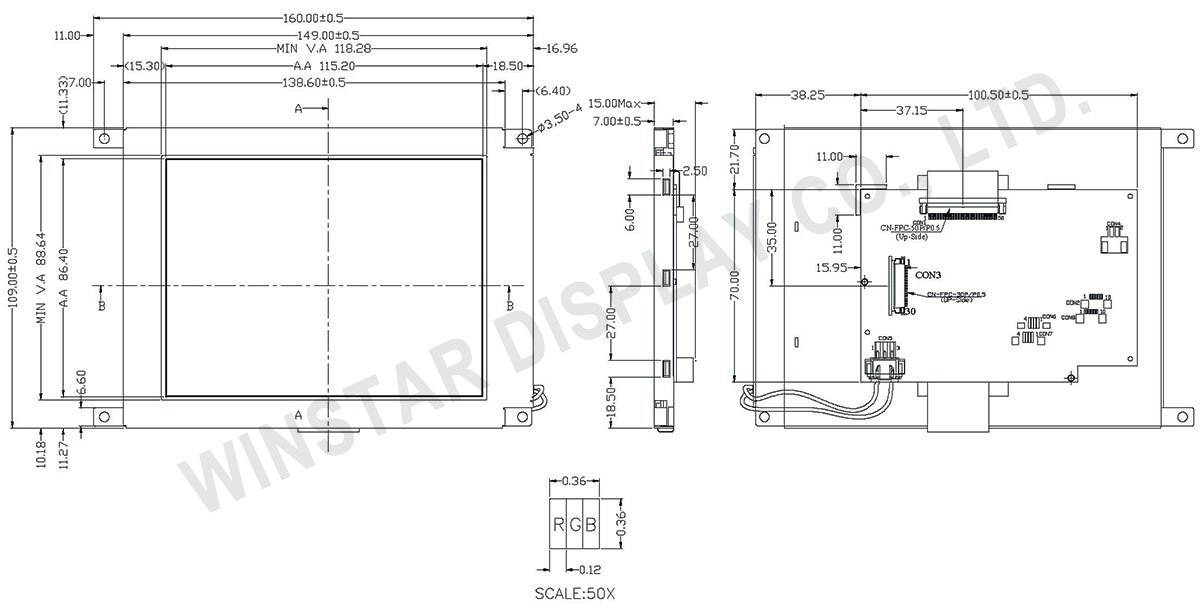

DRAWING
SPECIFICATIONS
Interface
| Pin | Symbol | Function |
|---|---|---|
| 1 | LED+ | Power supply for Backlight + |
| 2 | LED- | Power supply for Backlight - |
| 3 | RX3+ | + LVDS differential data input |
| 4 | RX3- | - LVDS differential data input |
| 5 | GND | Ground |
| 6 | RXC+ | + LVDS differential clock input |
| 7 | RXC- | - LVDS differential clock input |
| 8 | GND | Ground |
| 9 | RX2+ | + LVDS differential data input |
| 10 | RX2- | - LVDS differential data input |
| 11 | GND | Ground |
| 12 | RX1+ | + LVDS differential data input |
| 13 | RX1- | - LVDS differential data input |
| 14 | GND | Ground |
| 15 | RX0+ | + LVDS differential data input |
| 16 | RX0- | - LVDS differential data input |
| 17 | L/R | Shift direction of device internal shift register control. |
| 18 | U/D | Up/down selection |
| 19 | VCC | Digital power: 3V~3.6V |
| 20 | VCC | Digital power: 3V~3.6V |
| 21 | NC | No connection |
| 22 | NC | No connection |
| 23 | NC | No connection |
| 24 | NC | No connection |
| 25 | NC | No connection |
| 26 | NC | No connection |
| 27 | NC | No connection |
| 28 | NC | No connection |
| 29 | NC | No connection |
| 30 | RESET | Hardware reset |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 5.7 | inch |
| Dot Matrix | 320 × RGB × 240 (TFT) | dots |
| Module dimension | 160.0(W) × 109.0(H) × 15.0(D) | mm |
| Active area | 115.20 × 86.40 | mm |
| Dot pitch | 0.12 × 0.36 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o'clock | |
| Gray Scale Inversion Direction | 6 o'clock | |
| Aspect Ratio | 4:3 | |
| Backlight Type | LED, Normally White | |
| Touch Panel | Without touch panel | |
| Surface | Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | 0 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For LCM | VCC | － | 3.0 | 3.3 | 3.6 | V |
| Supply Current For LCM | ICC | － | － | 210 | 315 | mA |
| Input High Volt. | VIH | － | 0.7 VCC | － | VCC | V |
| Input Low Volt. | VIL | － | 0 | － | 0.3 VCC | V |
