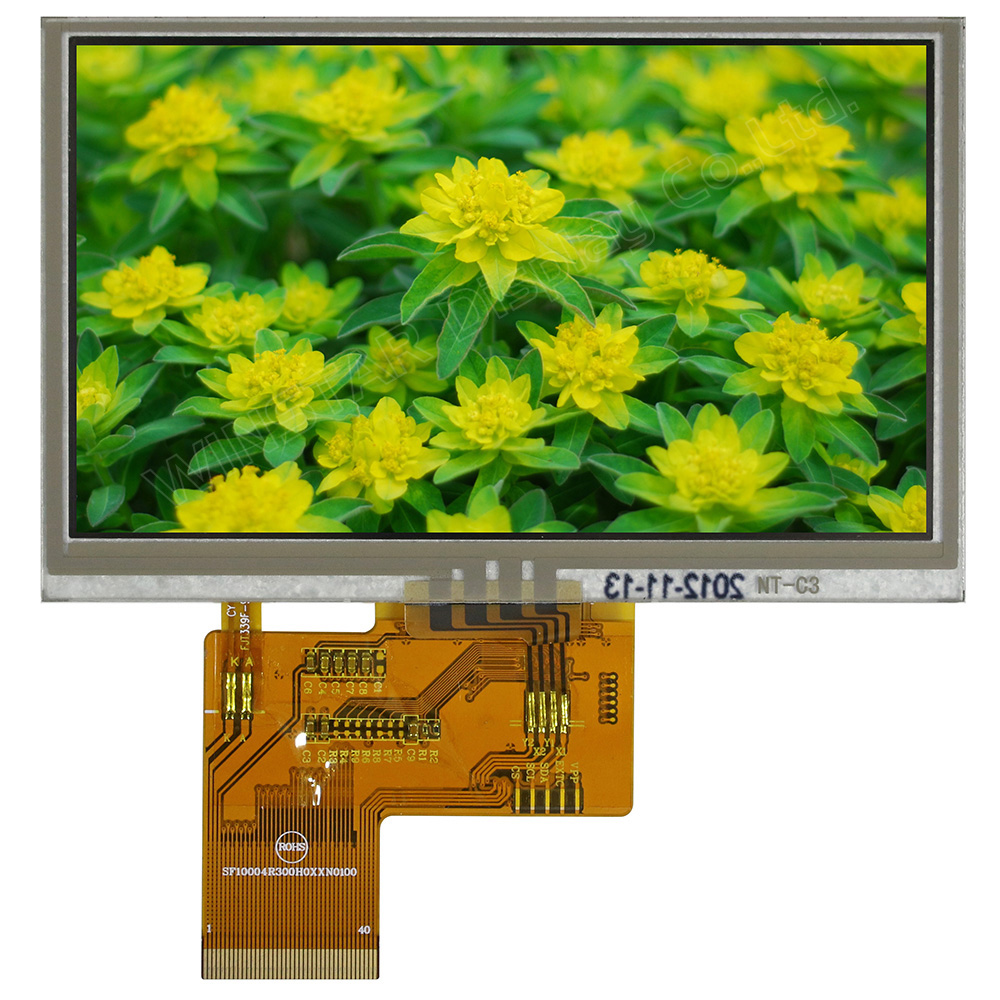

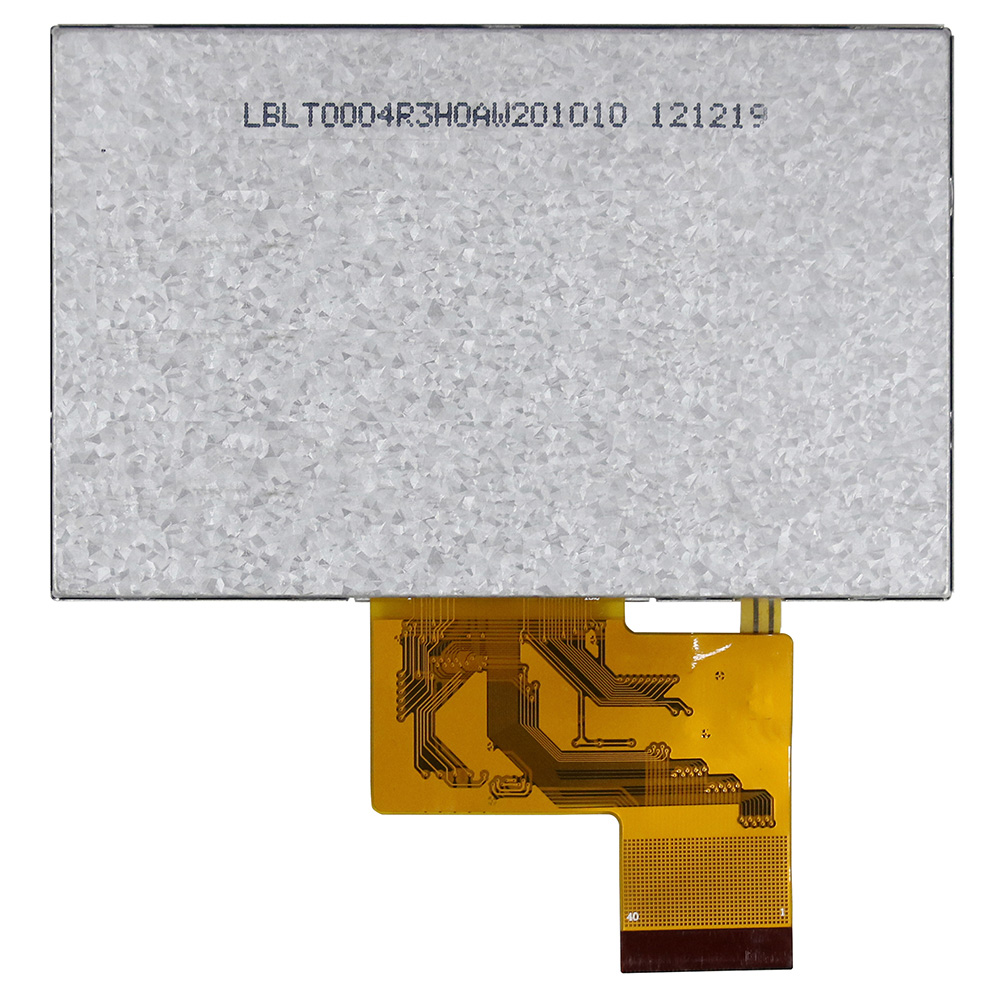

Touch Screen Color TFT LCD Modules 4.3"
Model No. WF43VTZAEDNT0
►Size: 4.3 inch
►Resolution : 480 x 272 dots
►View Direction : O-TFT
►Interface : RGB
►TFT Driver IC : ST7282
►Control-Board : No
►Brightness(cd/m²): 280
►Frame Through Hole: No
►Touchscreen : Resistive Touchscreen
►O-Film: Yes
DESCRIPTION
WF43VTZAEDNT0 is a 4.3 inch O Film TFT-LCD module with resistive touchscreen display on module. This model is featured with O-Film Technology which is having wider view angle solution. WF43VTZAEDNT0 is a TFT touch screen display with 480x272 resolutions, module dimension size 105.5 × 67.2× 4.05 mm and AA size of 95.04 × 53.856 mm and it can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

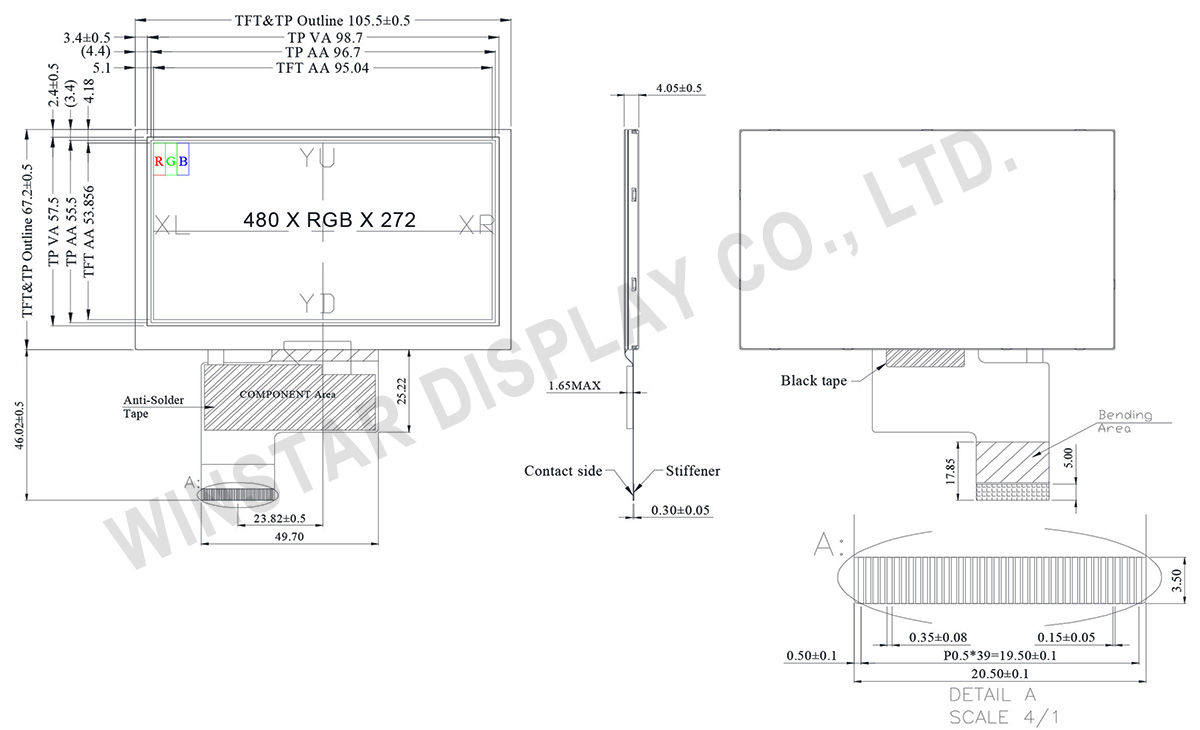

DRAWING
SPECIFICATIONS
Interface
LCM PIN Definition
| Pin | Symbol | Function |
|---|---|---|
| 1 | VLED- | Power for LED backlight cathode |
| 2 | VLED+ | Power for LED backlight anode |
| 3 | GND | Power ground |
| 4 | VCC | Power voltage |
| 5 | R0 | Red data (LSB) |
| 6 | R1 | Red data |
| 7 | R2 | Red data |
| 8 | R3 | Red data |
| 9 | R4 | Red data |
| 10 | R5 | Red data |
| 11 | R6 | Red data |
| 12 | R7 | Red data (MSB) |
| 13 | G0 | Green data (LSB) |
| 14 | G1 | Green data |
| 15 | G2 | Green data |
| 16 | G3 | Green data |
| 17 | G4 | Green data |
| 18 | G5 | Green data |
| 19 | G6 | Green data |
| 20 | G7 | Green data (MSB) |
| 21 | B0 | Blue data (LSB) |
| 22 | B1 | Blue data |
| 23 | B2 | Blue data |
| 24 | B3 | Blue data |
| 25 | B4 | Blue data |
| 26 | B5 | Blue data |
| 27 | B6 | Blue data |
| 28 | B7 | Blue data (MSB) |
| 29 | GND | Power ground |
| 30 | CLK | Pixel clock |
| 31 | DISP | Display on/off |
| 32 | HSYNC | Horizontal sync signal; negative polarity |
| 33 | VSYNC | Vertical sync signal; negative polarity |
| 34 | DE | Data Enable |
| 35 | NC | No connection |
| 36 | GND | Power ground |
| 37 | XR | Right electrode |
| 38 | YD | Down electrode |
| 39 | XL | Left electrode |
| 40 | YU | Top electrode |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 4.3 | inch |
| Dot Matrix | 480 × RGB × 272 (TFT) | dots |
| Module dimension | 105.5(W) × 67.2(H) × 4.05(D) | mm |
| Active area | 95.04 × 53.856 | mm |
| Dot pitch | 0.066 × 0.198 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| Aspect Ratio | 16:9 | |
| TFT Driver IC | ST7282 | |
| Interface | 24-bit RGB | |
| Backlight Type | LED, Normally White | |
| Touchscreen | Resistive Touch Screen | |
| Surface | Anti-Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For Logic | Vcc | － | 3.0 | 3.3 | 3.5 | V |
| Digital operation current | Icc | － | － | 22 | 33 | mA |
