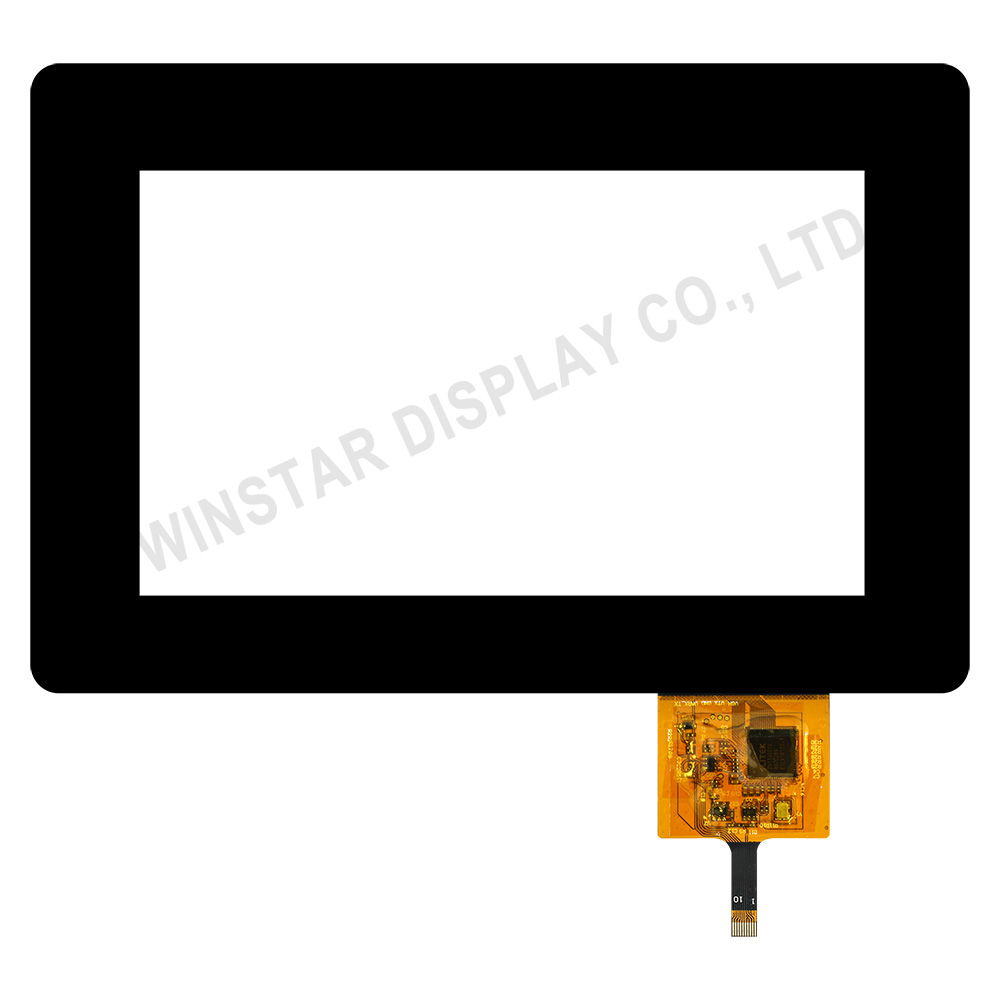

7 inch Projected Capacitive Touch Screen
Model No. TST0007R0B4111XXXX00
►Size: 7"
►Structure : G-G
►Outline Dimension : 202×135.5 mm
►Viewing Area : 155.22×86.92 mm
►Interface : I2C+USB
►Driver IC: ILI2511
►Type: Projected Capacitive

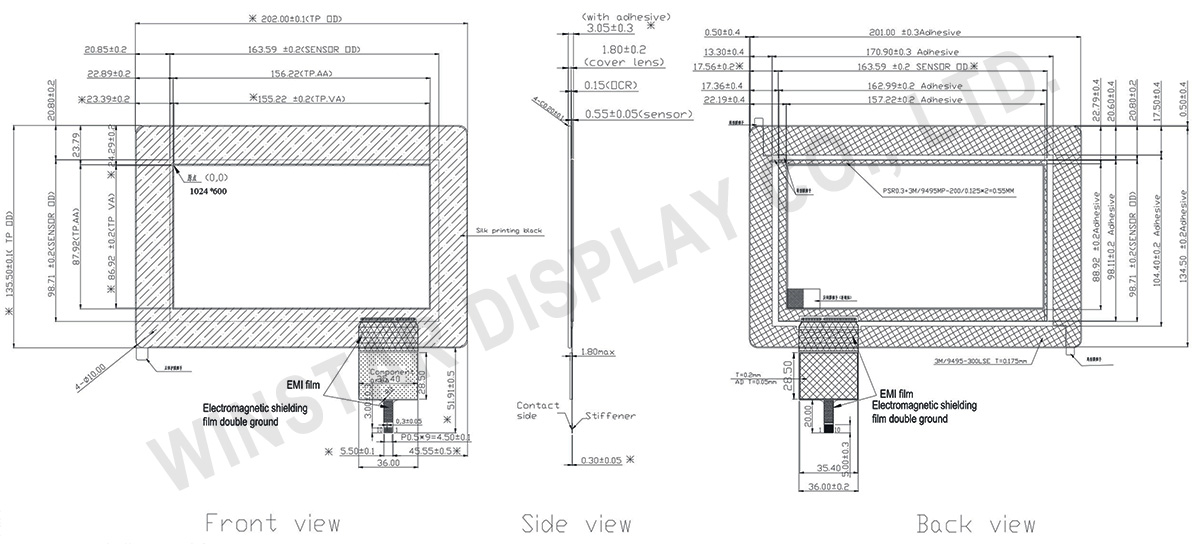

DRAWING
SPECIFICATIONS
General Specification
Feature| NO. | Item | Specifications |
|---|---|---|
| 1 | Type | Projected Capacitive |
| 2 | Input Mode | Finger |
| 3 | Connector | COF |
Mechanical Description
| NO. | Item | Specifications | Unit |
|---|---|---|---|
| 1 | Touch Panel Size | 7.0(Diagonal) | inch |
| 2 | Structure | G+G | |
| 3 | View Area | 155.22(H)x86.92(V) | mm |
| 4 | Outline Dimension | 202.00(H)x135.50(V)x2.50(D) | mm |
Interface Pin Function
| Pin No. | Symbol | I/O | Description |
|---|---|---|---|
| 1 | USB/GND | --- | System ground |
| 2 | USB/VDD5V | --- | Power supply |
| 3 | D+ | I/O | Data + |
| 4 | D- | I/O | Data - |
| 5 | GND | --- | System ground |
| 6 | SDA | I/O | I2C clock signal |
| 7 | SCL | I/O | I2C clock signal |
| 8 | RST | --- | External reset signal, active low |
| 9 | INT | --- | Interrupt signal, active low, asserted to request Host start a new transcation |
| 10 | VDD | --- | Power supply |
IC Specification
| NO. | Item | Specifications |
|---|---|---|
| 1 | Driver IC | ILI2511 |
| 2 | Detect Points | 10 touch |
| 3 | Interface | I2C+USB |
| 4 | Power Supply | 5.0V |
