3.5 inch Touch Screen, 3.5 inch Touch Panel
Model No. TST0003R5L3111XXXX01

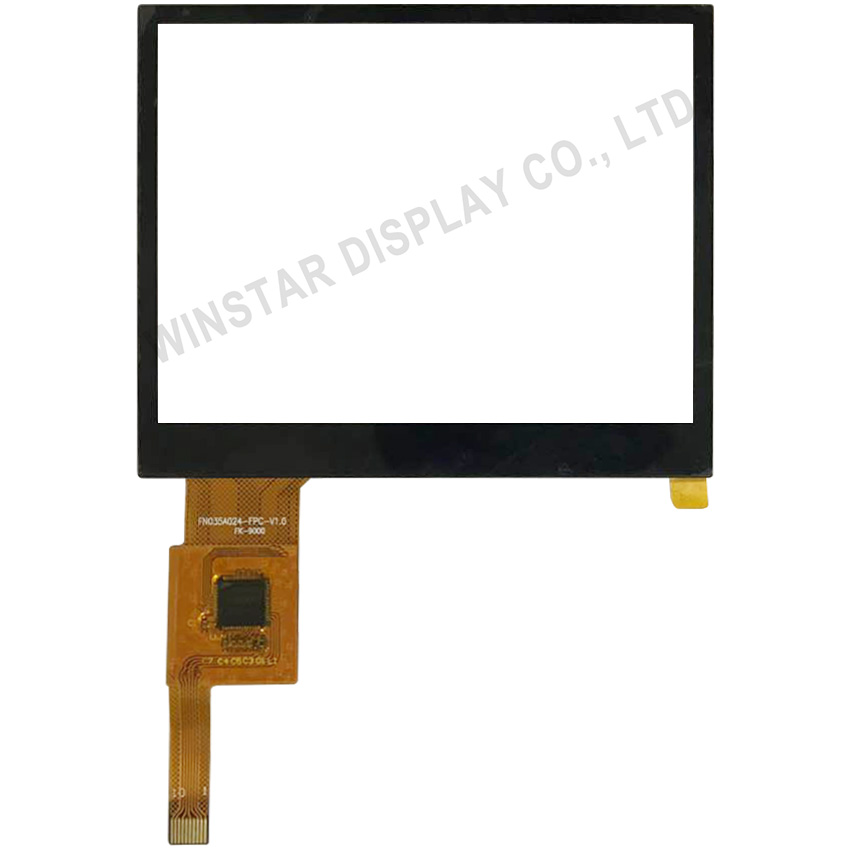

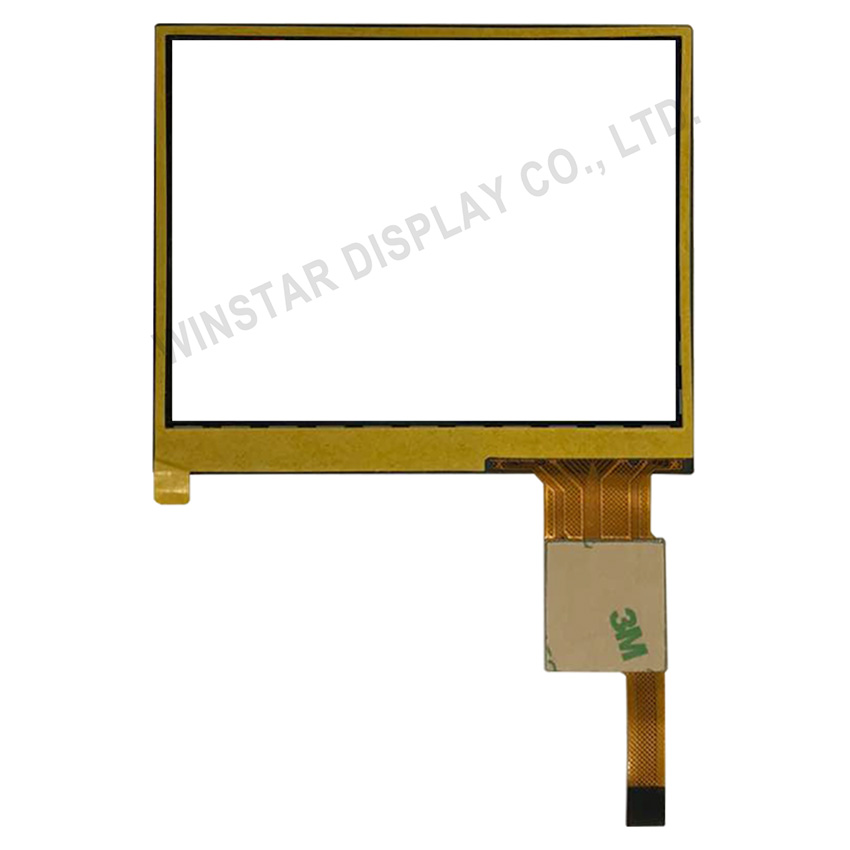

►3.5 inch Touch Screen, 3.5 inch Touch Panel
►Structure : G-F-F
►Outline Dimension : 76.25x63x1.10 mm
►Viewing Area : 71x53 mm
►Interface : I2C
►Built-in Controller: FT5426DQ8
►Type: Projected Capacitive
►Series for : WF35L, WF35M, WF35Q, WF35P, WF35Y
DRAWING
SPECIFICATIONS
General Specification
| NO. | Item | Specifications | Unit |
|---|---|---|---|
| 1 | Touch Panel Size | 3.5(Diagonal) | inch |
| 2 | Structure | G+F+F | |
| 3 | View Area | 71.00(H)x53.00(V) | mm |
| 4 | Outline Dimension | 76.25(H)x63.00(V)x1.10(D) | mm |
Feature
| NO. | Item | Specifications |
|---|---|---|
| 1 | Type | Projected Capacitive |
| 2 | Input Mode | Finger |
| 3 | Connector | COF-FPC |
Interface Pin Function
| Pin No. | Symbol | I/O | Description |
|---|---|---|---|
| 1 | VSS | --- | Ground |
| 2 | VDD | --- | Power supply |
| 3 | SCL | I/O | I2C clock signal |
| 4 | NC | --- | No Connection |
| 5 | SDA | I/O | I2C data signal |
| 6 | NC | --- | No Connection |
| 7 | RST | I | External reset signal, active low |
| 8 | NC | --- | No Connection |
| 9 | INT | O | Interrupt signal, active low, asserted to request Host start a new transcation |
| 10 | VSS | --- | Ground |
IC Specification
| NO. | Item | Specifications |
|---|---|---|
| 1 | Driver IC | FT5426DQ8 |
| 2 | Detect Points | 5 |
| 3 | Interface | I2C |
| 4 | Power Supply | 2.8V |
