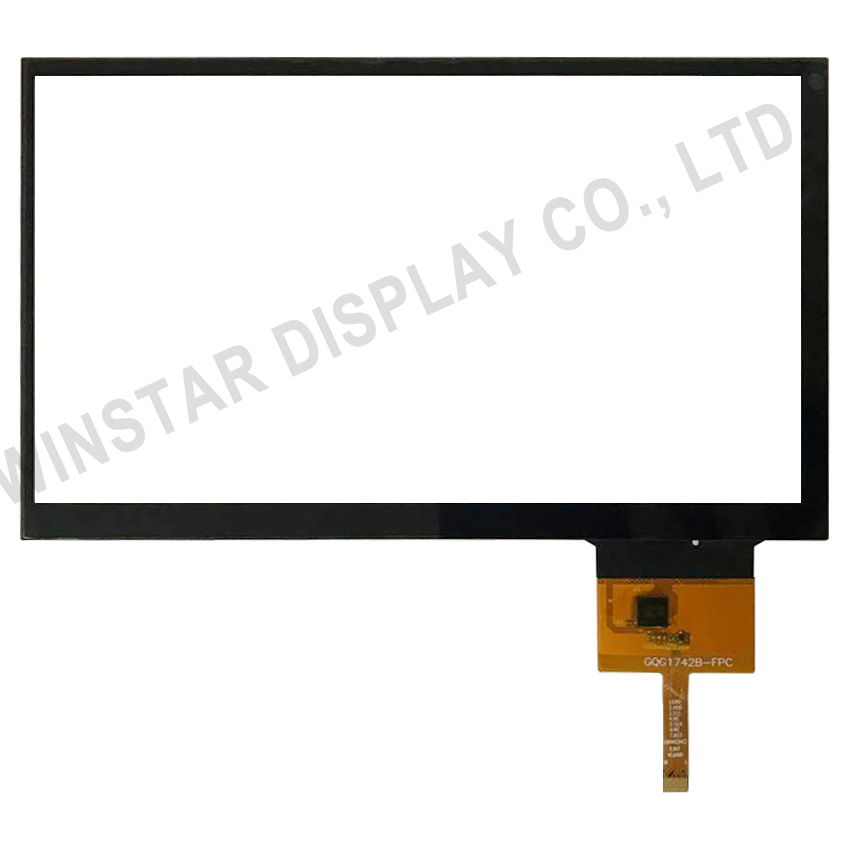

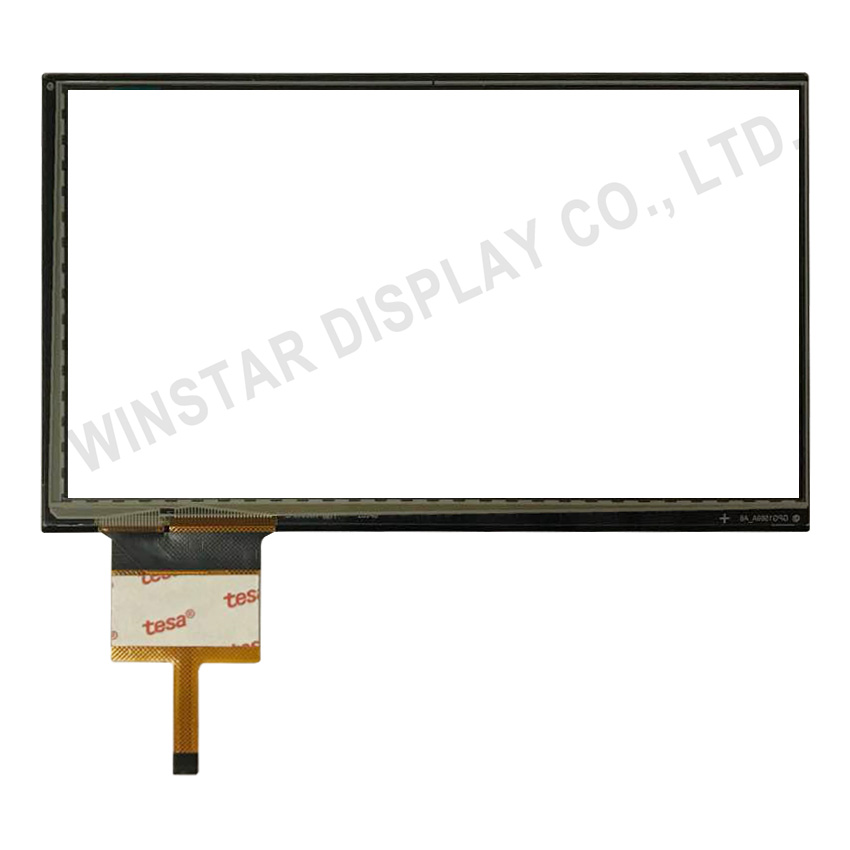

7 inch Touch Screen, 7 inch Touch Panel
Model No. TST0007R0G4111XXXX05
►7 inch Touch Screen, 7 inch Touch Panel
►Structure : G-G
►Outline Dimension : 164.4 x 99.45 mm
►Viewing Area : 156.08 x 87.92 mm
►Interface : I2C
►Built-in Controller : FT5426DQ8
►Series : WF70B, WF70G, WF70H, WF70M, WF70Q, WF70P, WF70Y

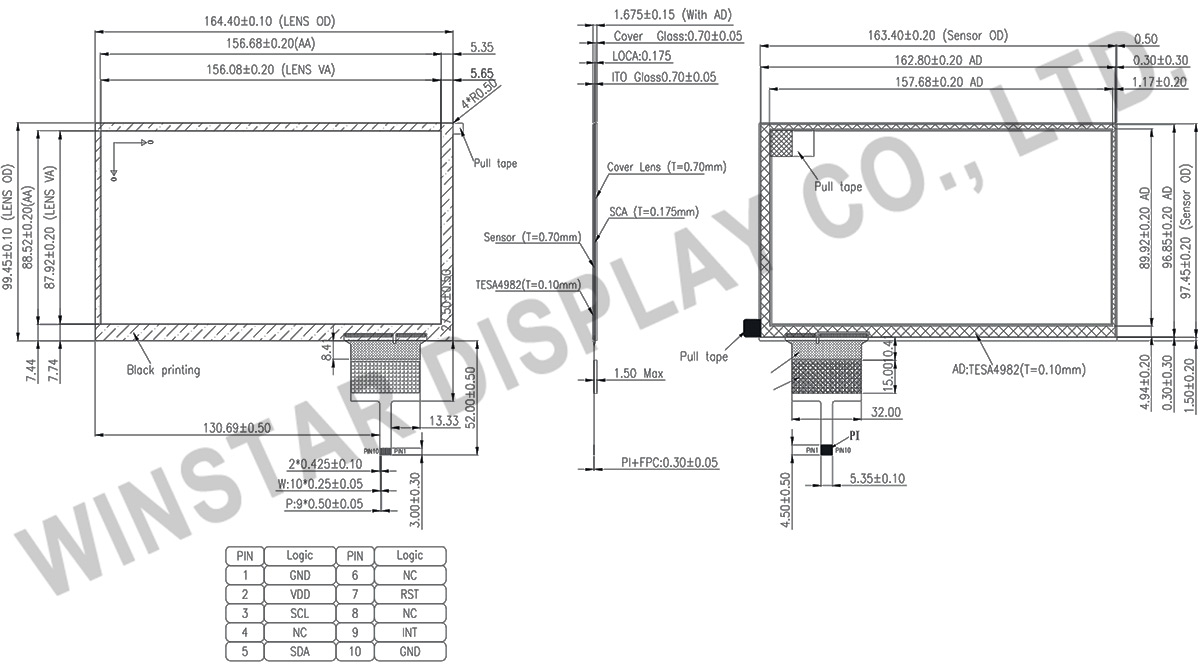

DRAWING
SPECIFICATIONS
Construction:
| Construction | Materials | Comment |
|---|---|---|
| COVER LENS | GLASS | Thickness：0.70mm |
| LOCA | Adhesive | Thickness：0.175mm |
| ITO Glass | ITO glass | Thickness：0.70mm |
Mechanical characteristics:
| Item | Description | Unit |
|---|---|---|
| Outline dimension | 164.40±0.10 × 99.45±0.10 | mm |
| View Area | 156.08±0.20× 87.92±0.20 | mm |
| Active Area | 156.68±0.20× 88.52±0.20 | mm |
| Thickness | 1.675±0.15 | mm |
| Input Method | Finger Or Conductive Pen | |
| Hardness Of Surface | Hard Surface : ≥7H | |
| Accuracy | +/-1mm@10mm | mm |
| Support Operation | Finger | 5 |
| Channel | 16× 28 | |
| Interface | I2C | |
| Supported Operating Systems | Android2.0-4.2Windows |
Interface Pin Function
| PIN No | Symbol | Function |
|---|---|---|
| 1 | GND | Ground for analog circuit |
| 2 | VDD | Power Supply |
| 3 | SCL | I2C clock input |
| 4 | NC | No connect |
| 5 | SDA | I2C data input and output |
| 6 | NC | No connect |
| 7 | RST | External Reset, Low is active |
| 8 | NC | No connect |
| 9 | INT | External interrupt to the host |
| 10 | GND | Ground for analog circuit |
