Interface

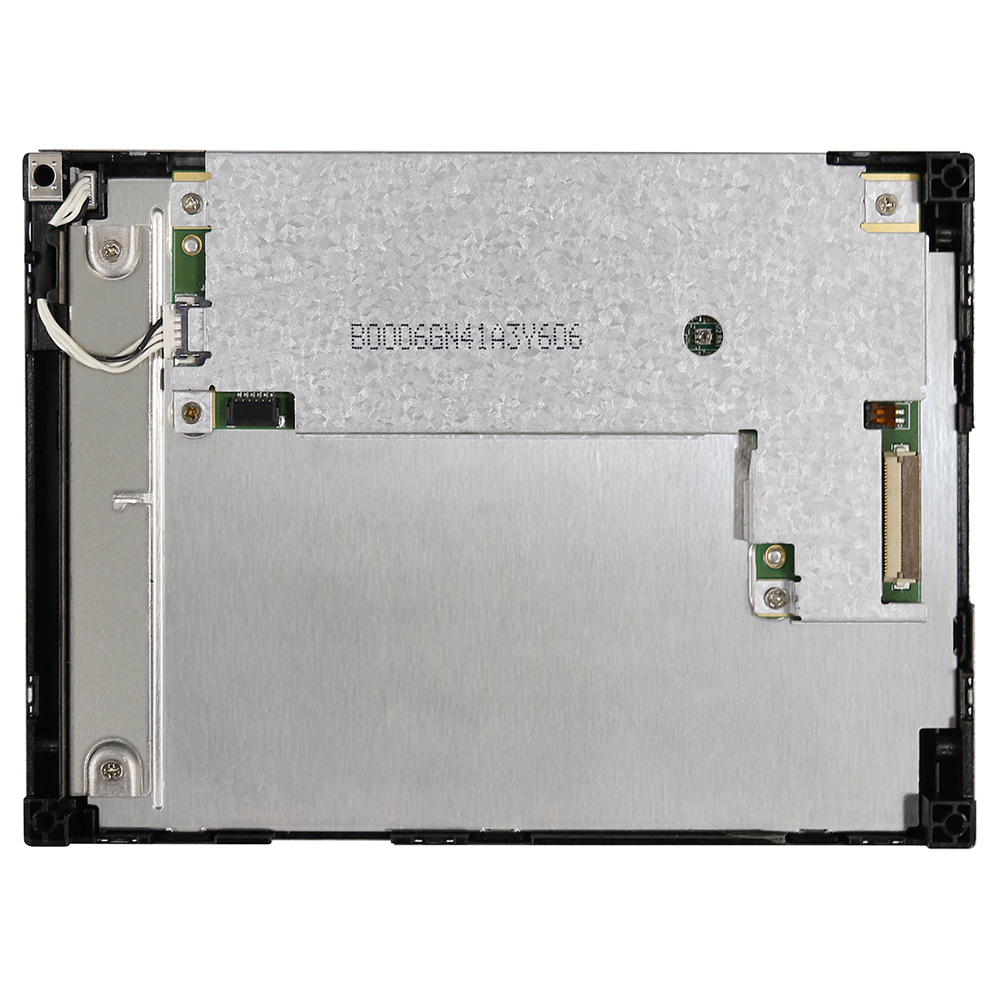

TFT LCD Module
| Pin |
Name |
Description |
| 1 |
GND |
Ground |
| 2 |
CLK |
Dot Clock |
| 3 |
IHS |
Horizontal synchronous signal |
| 4 |
IVS |
Vertical synchronous signal |
| 5 |
GND |
Ground |
| 6 |
R0 |
Red data (LSB) |
| 7 |
R1 |
Red data |
| 8 |
R2 |
Red data |
| 9 |
R3 |
Red data |
| 10 |
R4 |
Red data |
| 11 |
R5 |
Red data (MSB) |
| 12 |
GND |
Ground |
| 13 |
G0 |
Green data (LSB) |
| 14 |
G1 |
Green data |
| 15 |
G2 |
Green data |
| 16 |
G3 |
Green data |
| 17 |
G4 |
Green data |
| 18 |
G5 |
Green data (MSB) |
| 19 |
GND |
Ground |
| 20 |
B0 |
Blue data (LSB) |
| 21 |
B1 |
Blue data |
| 22 |
B2 |
Blue data |
| 23 |
B3 |
Blue data |
| 24 |
B4 |
Blue data |
| 25 |
B5 |
Blue data (MSB) |
| 26 |
GND |
Ground |
| 27 |
DE |
Data Enable Signal |
| 28 |
VDD |
Power Supply (3.3V) |
| 29 |
VDD |
Power Supply (3.3V) |
| 30 |
R/L |
Horizontal reverse scan |
| 31 |
U/D |
Vertical reverse scan |
| 32 |
NC |
Not Connect |
| 33 |
GND |
Ground |
General Specifications
| Item |
Dimension |
Unit |
| Size |
5.7 |
inch |
| Dot Matrix |
640 × R.G.B. × 480 |
dots |

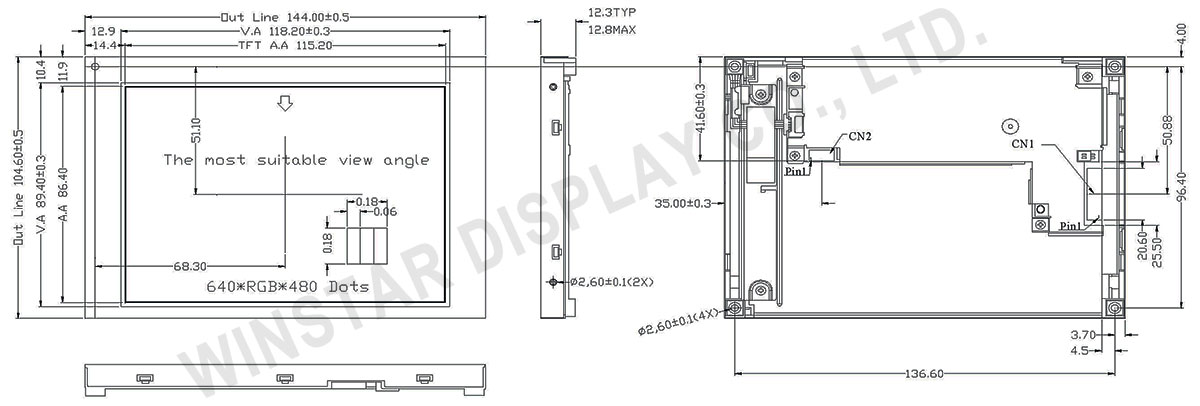

| Module dimension |
144.0 × 104.6 × 12.3 |
mm |
| Active area |
115.2(H) × 86.4(V) |
mm |
| Dot pitch |
0.18(H) × 0.18(V) |
mm |
| LCD type |
TFT, Normally White, Transmissive |
| View Direction |
6 o'clock |
| Gray Scale Inversion Direction |
12 o'clock |
| Aspect Ratio |
4:3 |
| Backlight Type |
LED, Normally White |
| Touch Panel |
Without touch panel |
| Surface |
Anti-Glare |
Absolute Maximum Ratings
| Item |
Symbol |
Min |
Typ |
Max |
Unit |
| Operating Temperature |
TOP |
-30 |
－ |
+85 |
℃ |
| Storage Temperature |
TST |
-30 |
－ |
+85 |
℃ |
Electrical Characteristics
| Parameter |
Symbol |
Value |
Unit |
| Min. |
Typ. |
Max. |
| Power Supply Voltage |
VCC |
3.0 |
3.3 |
3.6 |
V |
| Rush Current |
IRUSH |
|
1 |
|
A |
| Power Supply Current |
White |
|
|
146 |
175 |
mA |
| Black |
|
151 |
181 |
mA |
| Power Consumption |
PL |
|
0.5 |
|
W |
