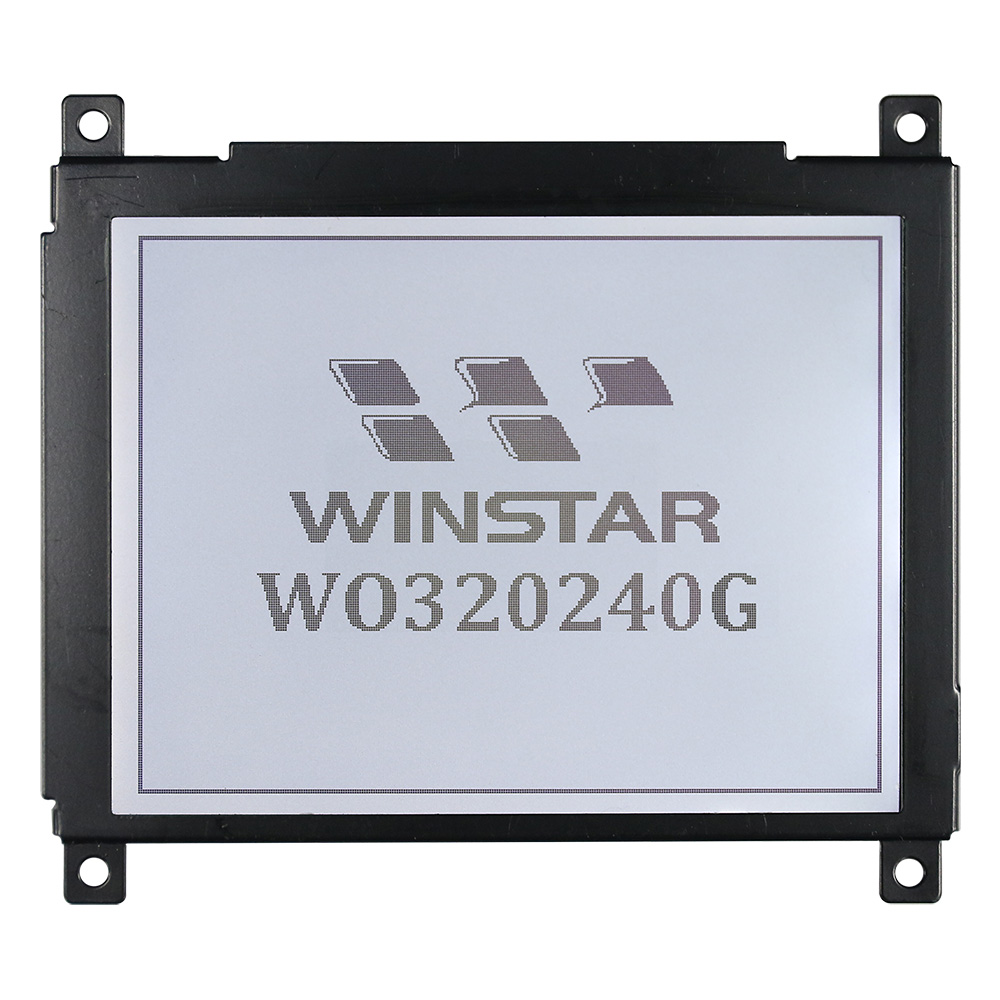

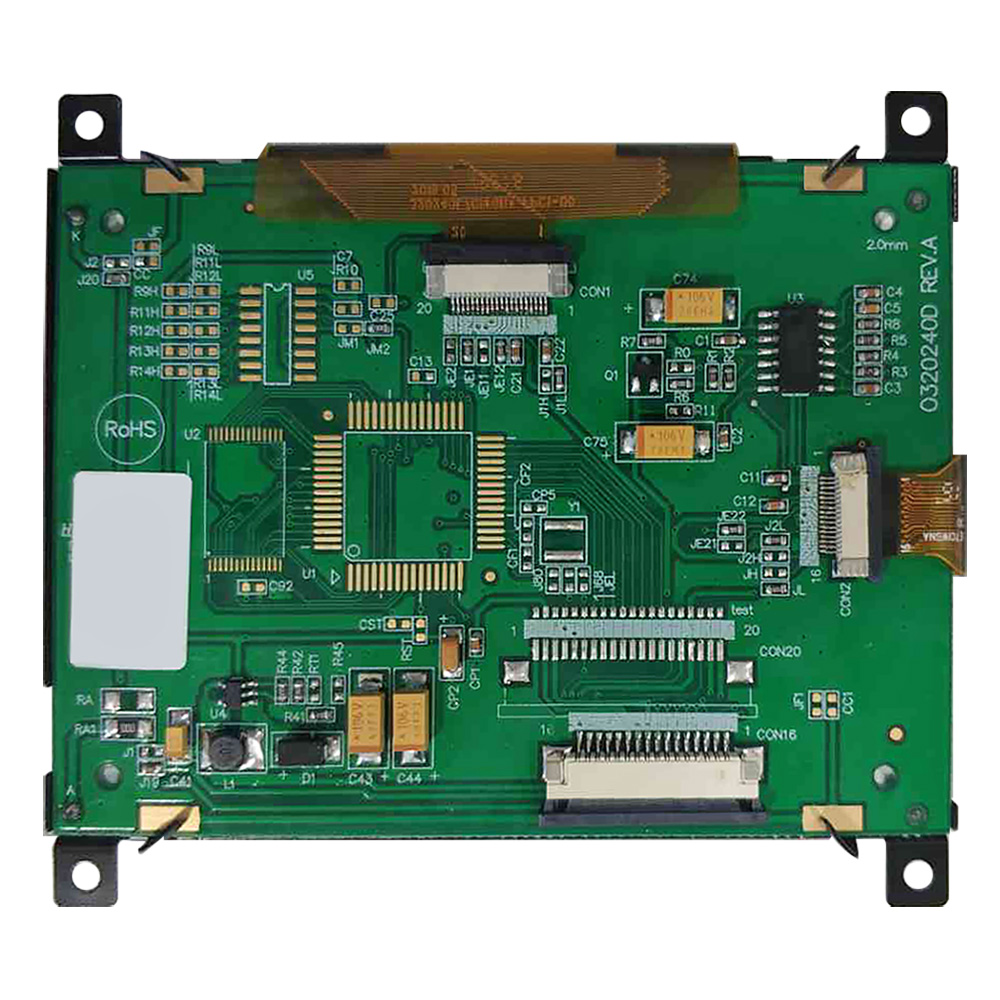

Chip on Glass LCD Module 320x240
Model No. WO320240G
►COG LCD Display
►Graphic LCD
►320 x 240 dots includes cursor
►No controller
►+3.3V/+5V power supply
►1/240 duty cycle
►Interface : 6800/8080
DESCRIPTION
WO320240G is a monochrome graphic LCD module made of 320x240 dot matrix format. This STN COG module is without built in controller IC. This COG module WO320240G is having the same outline dimension and VA size as TAB module WX320240G, but AA size is different. The WO320240G is an alternative item to replace WX320240G which TAB IC had been phased out. Comparing WO320240G (COG) to WX320240G (TAB), except the module structure is different; the outline dimension, VA size, interface, pin assignment, main electrical characteristics are the same, just AA size is a little different.
The supply voltage for logic of WO320240G is 3.0V to 3.6V, typical value 3.3V, 1/240 duty circle. This module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. WO320240G is available in FSTN positive LCD and with White LED backlight; please contact us if you need different LCD type and LED combination.

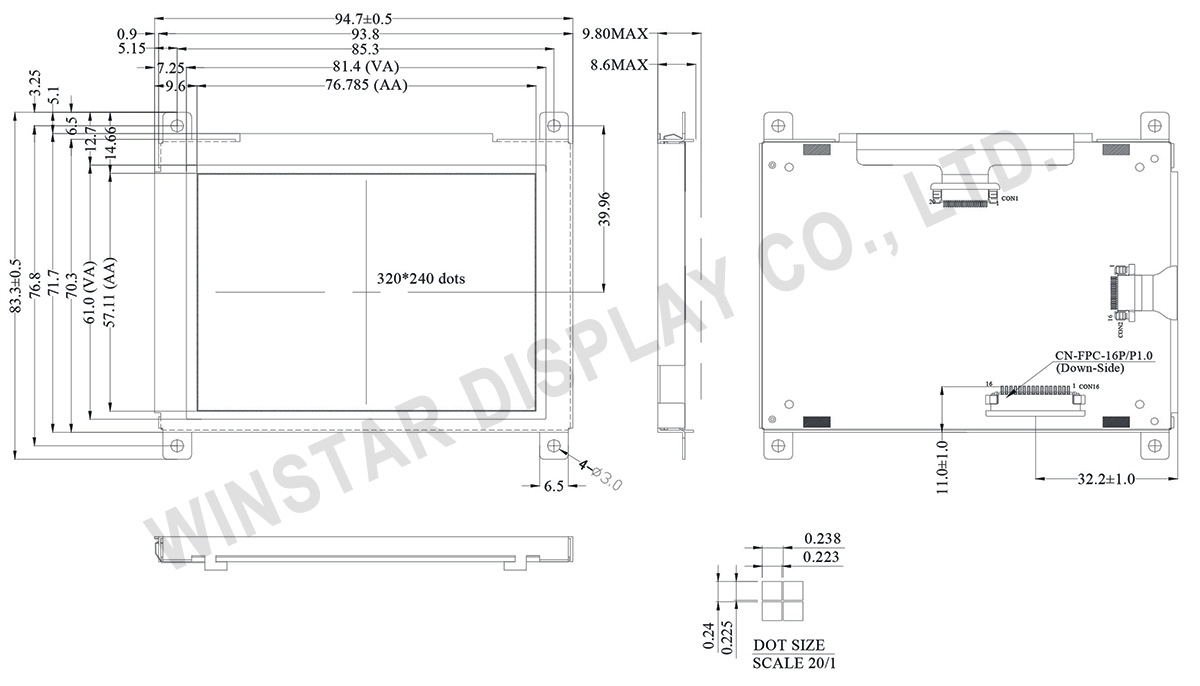

DRAWING
SPECIFICATIONS
Interface Pin Function
| Pin No. | Symbol | Level | Description |
|---|---|---|---|
| 1 | CL2 | H to L | Data shift pulse |
| 2 | CL1 | H to L | Data latch pulse |
| 3 | FLM | H/L | Scan start-up signal |
| 4 | NC | No connection | |
| 5 | DB0 | H/L | Display data, bit0 |
| 6 | DB1 | H/L | Display data, bit1 |
| 7 | DB2 | H/L | Display data, bit2 |
| 8 | DB3 | H | Display data, bit3 |
| 9 | VO | (Variable) | Power supply for LCD(+V) |
| 10 | VDD | 3.3V | Power supply for Logic |
| 11 | VSS | 0V | Ground |
| 12 | NC | No connection | |
| 13 | K | 0V | Ground for LED |
| 14 | A | Power supply for LED+ | |
| 15 | DISP | Display OFF | |
| 16 | VEE | Positive Voltage output |
Mechanical Data
| Item | Standard Value | Unit |
|---|---|---|
| Number of dots | 320x240 | － |
| Outline dimension | 94.7 x 83.3 x 9.8 max | mm |
| View area | 81.4 x 61.0 | mm |
| Active area | 76.785 x 57.11 | mm |
| Dot size | 0.223 x 0.225 | mm |
| Dot pitch | 0.238 x 0.24 | mm |
| Duty | 1/240 | |
| Backlight | LED | |
| Driver IC | NT7712+NT7711*2 | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
| Supply Voltage For Logic | VDD | -0.3 | － | 5.5 | V |
| Supply Voltage For LCD Drive | VLCD | -0.3 | － | 36 | V |
Electrical Characteristics
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For Logic | VDD-VSS | － | 3.0 | 3.3 | 3.6 | V |
| VDD-VSS | － | 4.7 | 5.0 | 5.3 | V | |
| Supply Voltage For LCD | VOP | Ta=-20℃ Ta=25℃ Ta=70℃ |
－ 22.7 － |
－ 23.0 － |
－ 23.3 － |
V V V |
| Input High Volt. | VIH | － | 0.8VDD | － | VDD | V |
| Input Low Volt. | VIL | － | 0 | － | 0.2VDD | V |
| Output High Volt. | VOH | － | VDD-0.4 | － | － | V |
| Output Low Volt. | VOL | － | － | － | 0.4 | V |
| Supply Current | IDD | VDD=3.3V | － | 45.0 | 70.0 | mA |
| IDD | VDD=5.0V | － | 33.0 | 50.0 | mA |
