4.3" Capacitive Touchscreen TFT Panel with Controller Board
Model No. WF43PTIBEDBGD
►Size: 4.3"
►Display Format : 480 x 272 dots
►View Direction : 12H
►Interface : MCU
►Built-in Controller : RA8875
►Control-Board : Yes
►Brightness(cd/m2): 400
►Frame Through Hole: Yes
►Touch Screen : Projected capacitive touchscreen (PCAP)
►Detect Point : 5 Fingers
DESCRIPTION

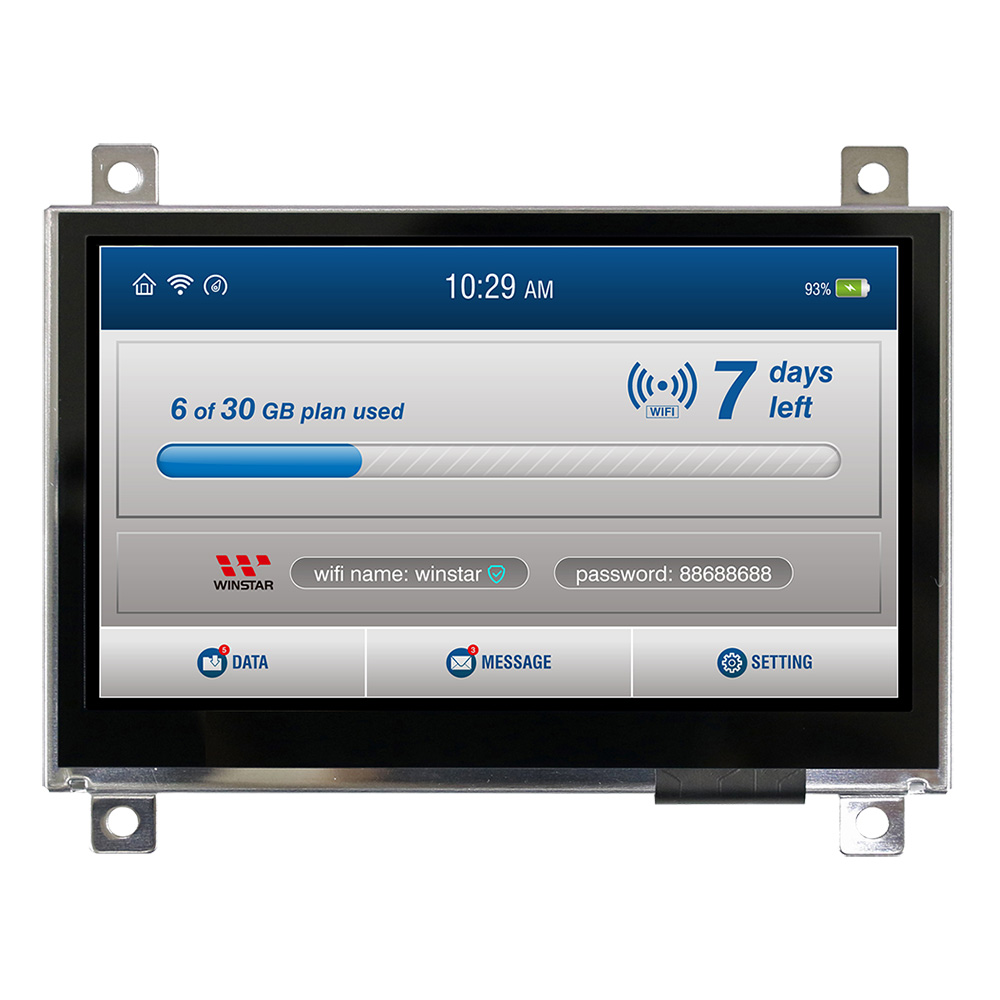

WF43PTIBEDBGD is Winstar 4.3 inch P Series TFT panel which is including a capacitive touch screen on module. This 4.3 TFT panel is built in with RA8875 controller board plus a 36 pin-out connector on board. This model is featured with 8 bit or 16 bit options and already defined pin no. 33 ~ 36 as backlight supply on an integrated 36 pin-out connector.

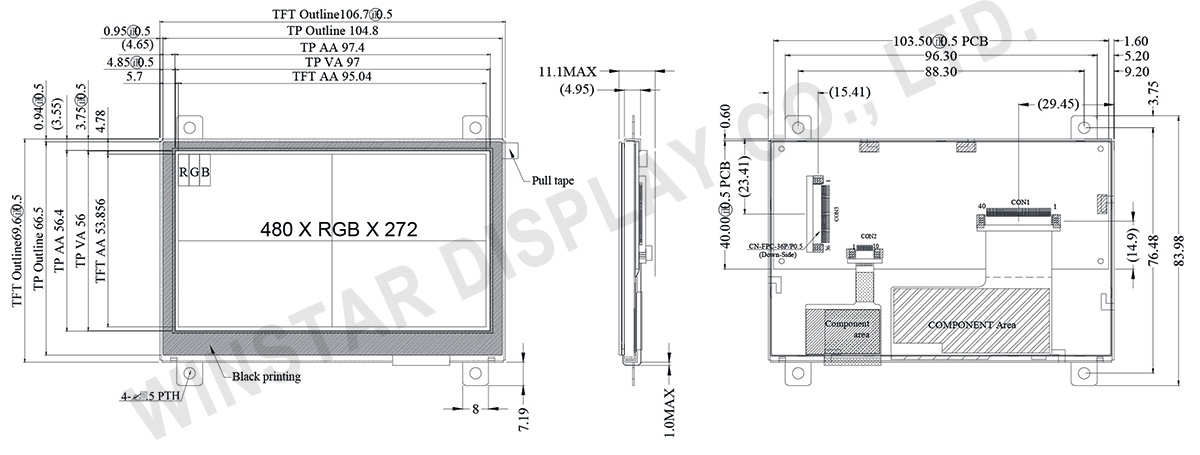

DRAWING
SPECIFICATIONS
Interface
LCM PIN Definition (CON3)
| Pin | Symbol | Function |
|---|---|---|
| 1 | GND | System ground |
| 2 | VDD | Power Supply : +3.3V |
| 3 | NC | No connect |
| 4 | RS | Data/Command select |
| 5 | WR | Write strobe signal |
| 6 | RD | Read strobe signal |
| 7~22 | DB0~DB15 | Data bus |
| 23 | WAIT | Wait Signal Output(H:active) |
| 24 | CTP_INT | CTP Interrupt Signal From Touch Panel Module To Host |
| 25 | CS | Chip select |
| 26 | RST | Hardware reset |
| 27 | DIP ON | Display control H: On \ L:Off |
| 28 | NC | No connect |
| 29 | CTP_SCL | CTP Serial IIC Clock |
| 30 | CTP_SDA | CTP Serial IIC Data |
| 31 | CTP_RST | CTP Reset Signal |
| 32 | NC | No connect |
| 33~34 | VLED- | Power for LED backlight cathode |
| 35~36 | VLED+ | Power for LED backlight anode |
General Specifications
| Item | Dimension | Unit |
|---|---|---|
| Size | 4.3 | inch |
| Dot Matrix | 480 x RGB x 272(TFT) | dots |
| Module dimension | 106.7 x 83.98 x 11.1 (max) | mm |
| Active area | 95.04 x 53.856 | mm |
| Dot pitch | 0.066 x 0.198 | mm |
| LCD type | TFT, Normally White, Transmissive | |
| View Direction | 12 o’clock | |
| Gray Scale Inversion Direction | 6 o’clock | |
| Aspect Ratio | 16:9 | |
| Backlight Type | LED, Normally White | |
| Controller IC | RA8875 | |
| Interface | MCU 8080 8/16bit | |
| PCAP FW Version | 3 | |
| PCAP IC | FT5426 or equivalent | |
| PCAP Interface | I2C | |
| Touch Panel | Projected capacitive touchscreen (PCAP) | |
| Surface | Glare | |
Absolute Maximum Ratings
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating Temperature | TOP | -20 | － | +70 | ℃ |
| Storage Temperature | TST | -30 | － | +80 | ℃ |
Electrical Characteristics
Operating conditions: (CON3.Pin1=GND, Pin2=VDD)
| Item | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage For LCM | VDD | － | 3.0 | 3.3 | 3.6 | V |
| Supply Current For LCM | IDD | － | － | 65 | 100 | mA |
